76706TS Series
Manufacturer: Belden Inc.
Beta
⌘K

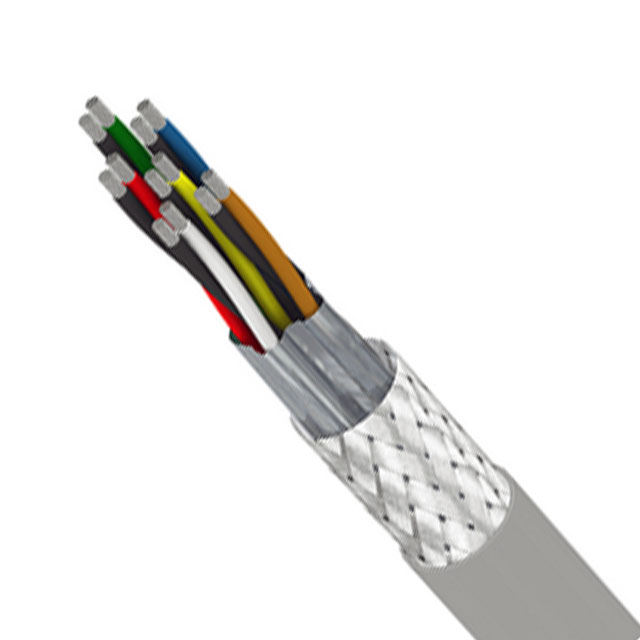

MULTI-PAIR 12CON 22AWG GRAY
| Part | Shield Material | Shield Coverage | Length | Length | Number of Conductors | Cable Type | Shield Type | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Features | Conductor Insulation | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Voltage | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | 152.4 m | 500 ft | 12 | Multi-Pair | Braid Foil | Gray | 1.016 mm | 0.04 in | UL Style 20006 | Drain Wire Oil Resistant | Poly-Vinyl Chloride (PVC) | 22 AWG | 34 AWG | 19 | 9.58 mm | 0.377 " | Copper Tinned | 300 VDC | Poly-Vinyl Chloride (PVC) |
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | 304.8 m | 1000 ft | 12 | Multi-Pair | Braid Foil | Gray | 1.016 mm | 0.04 in | UL Style 20006 | Drain Wire Oil Resistant | Poly-Vinyl Chloride (PVC) | 22 AWG | 34 AWG | 19 | 9.58 mm | 0.377 " | Copper Tinned | 300 VDC | Poly-Vinyl Chloride (PVC) |
