VX-01 Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

SWITCH SNAP ACT SPDT 0.1A 125V

Part	Current Rating (Amps)	Voltage Rating - AC	Electrical Life	Differential Travel	Differential Travel	Mounting Type	Overtravel [custom]	Overtravel [custom]	Operating Position	Operating Position	Mechanical Life	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Operating Force	Release Force	Ingress Protection	Voltage Rating - DC	Termination Style	Actuator Type	Pretravel	Pretravel	Termination Style	Termination Style
Omron Electronics Inc-EMC Div VX-01-1C23	100 mA	125 V	1000000 Cycles	0.012 in	0.3 mm	Chassis Mount	0.04 "	1 mm	14.7 mm	0.579 in	10000000 Cycles	On-Mom	-25 °C	80 °C	SPDT	50 gf	5.099 gf	IP40	30 V	Quick Connect	Round (Pin Plunger)	1.2 mm	0.047 in
Omron Electronics Inc-EMC Div VX-01-1C22	100 mA	125 V	1000000 Cycles	0.012 in	0.3 mm	Chassis Mount	0.04 "	1 mm	14.7 mm	0.579 in	10000000 Cycles	On-Mom	-25 °C	80 °C	SPDT		3.059 gf	IP40	30 V	Quick Connect	Round (Pin Plunger)	1.2 mm	0.047 in

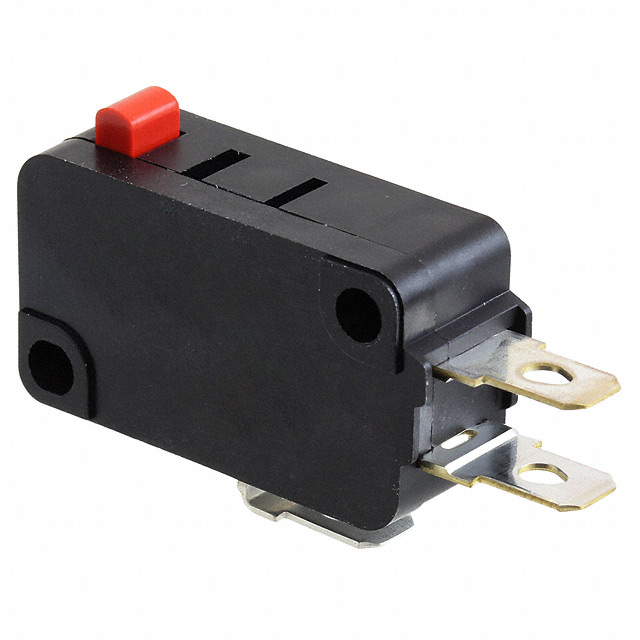

Omron Electronics Inc-EMC Div VX-01-1A3	100 mA	125 V	1000000 Cycles	0.012 in	0.3 mm	Chassis Mount	0.04 "	1 mm	14.7 mm	0.579 in	10000000 Cycles	On-Mom	-25 °C	80 °C	SPDT	50 gf	5.099 gf	IP40	30 V	Solder Quick Connect	Round (Pin Plunger)	1.2 mm	0.047 in	4.7 mm	0.187 in
Omron Electronics Inc-EMC Div VX-01-3A2	100 mA	125 V	1000000 Cycles	0.012 in	0.3 mm	Chassis Mount	0.04 "	1 mm	14.7 mm	0.579 in	10000000 Cycles	Off-Mom	-25 °C	80 °C	SPST-NO		3.059 gf	IP40	30 V	Solder Quick Connect	Round (Pin Plunger)	1.2 mm	0.047 in	4.7 mm	0.187 in
Omron Electronics Inc-EMC Div VX-01-1A2	100 mA	125 V	1000000 Cycles	0.012 in	0.3 mm	Chassis Mount	0.04 "	1 mm	14.7 mm	0.579 in	10000000 Cycles	On-Mom	-25 °C	80 °C	SPDT		3.059 gf	IP40	30 V	Solder Quick Connect	Round (Pin Plunger)	1.2 mm	0.047 in	4.7 mm	0.187 in
Omron Electronics Inc-EMC Div VX-01-3C22	100 mA	125 V	1000000 Cycles	0.012 in	0.3 mm	Chassis Mount	0.04 "	1 mm	14.7 mm	0.579 in	10000000 Cycles	Off-Mom	-25 °C	80 °C	SPST-NO		3.059 gf	IP40	30 V	Quick Connect	Round (Pin Plunger)	1.2 mm	0.047 in
Omron Electronics Inc-EMC Div VX-01-3A3	100 mA	125 V	1000000 Cycles	0.012 in	0.3 mm	Chassis Mount	0.04 "	1 mm	14.7 mm	0.579 in	10000000 Cycles	Off-Mom	-25 °C	80 °C	SPST-NO	50 gf	5.099 gf	IP40	30 V	Solder Quick Connect	Round (Pin Plunger)	1.2 mm	0.047 in	4.7 mm	0.187 in
