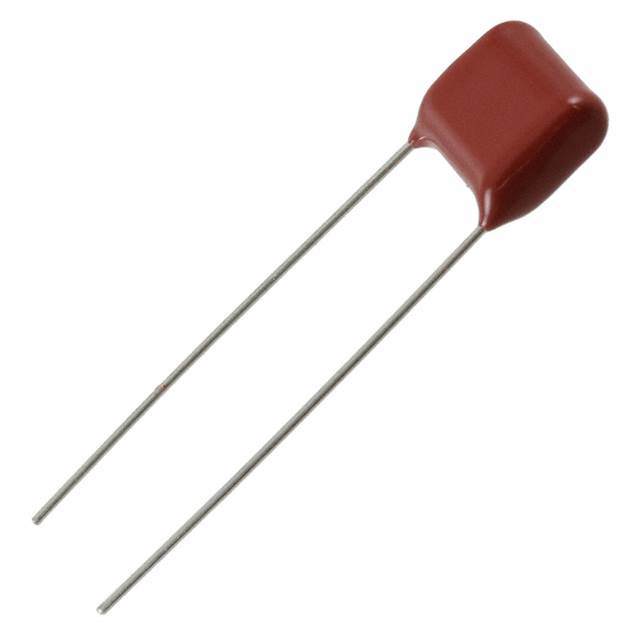

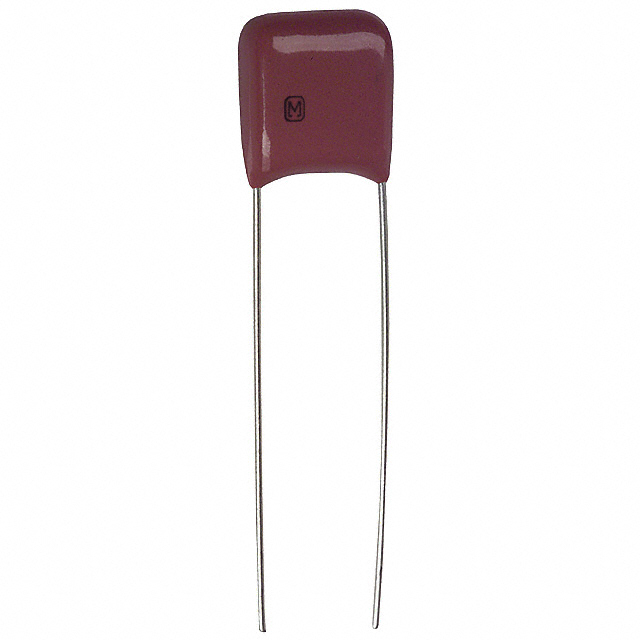

ECQ-E2224 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP FILM 0.22UF 5% 250VDC RADIAL

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing	Mounting Type	Capacitance	Tolerance	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Dielectric Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Electronic Components ECQ-E2224JF9	0.61 in	15.5 mm	0.197 "	5 mm	Through Hole	0.22 µF	5 %	PC Pins	-40 C	105 ░C	250 V	Polyester Metallized	0.472 in	0.217 in	12 mm	5.5 mm	Radial	General Purpose
Panasonic Electronic Components ECQ-E2224JB3			0.197 "	5 mm	Through Hole	0.22 µF	5 %	PC Pins	-40 C	105 ░C	250 V	Polyester Metallized	0.406 in	0.213 "	10.3 mm	5.4 mm	Radial	General Purpose	0.594 in	15.1 mm
Panasonic Electronic Components ECQ-E2224KBB			0.197 "	5 mm	Through Hole	0.22 µF	10 %	PC Pins	-40 C	105 ░C	250 V	Polyester Metallized	0.406 in	0.213 "	10.3 mm	5.4 mm	Radial	General Purpose	0.594 in	15.1 mm
Panasonic Electronic Components ECQ-E2224JF			0.394 in	10 mm	Through Hole	0.22 µF	5 %	PC Pins	-40 C	105 ░C	250 V	Polyester Metallized	0.472 in	0.217 in	12 mm	5.5 mm	Radial	General Purpose		0.453 in	11.5 mm
Panasonic Electronic Components ECQ-E2224KB3			0.197 "	5 mm	Through Hole	0.22 µF	10 %	PC Pins	-40 C	105 ░C	250 V	Polyester Metallized	0.406 in	0.213 "	10.3 mm	5.4 mm	Radial	General Purpose	0.594 in	15.1 mm
Panasonic Electronic Components ECQ-E2224RKF	0.61 in	15.5 mm	0.394 in	10 mm	Through Hole	0.22 µF	10 %	PC Pins	-40 C	105 ░C	250 V	Polyester Metallized	0.472 in	0.217 in	12 mm	5.5 mm	Radial	General Purpose
Panasonic Electronic Components ECQ-E2224KF3	0.61 in	15.5 mm	0.197 "	5 mm	Through Hole	0.22 µF	10 %	PC Pins	-40 C	105 ░C	250 V	Polyester Metallized	0.472 in	0.217 in	12 mm	5.5 mm	Radial	General Purpose
Panasonic Electronic Components ECQ-E2224JFB	0.61 in	15.5 mm	0.394 in	10 mm	Through Hole	0.22 µF	5 %	PC Pins	-40 C	105 ░C	250 V	Polyester Metallized	0.472 in	0.217 in	12 mm	5.5 mm	Radial	General Purpose
Panasonic Electronic Components ECQ-E2224JB			0.295 in	7.5 mm	Through Hole	0.22 µF	5 %	PC Pins	-40 C	105 ░C	250 V	Polyester Metallized	0.406 in	0.213 "	10.3 mm	5.4 mm	Radial	General Purpose	0.437 in	11.1 mm
Panasonic Electronic Components ECQ-E2224JBB			0.197 "	5 mm	Through Hole	0.22 µF	5 %	PC Pins	-40 C	105 ░C	250 V	Polyester Metallized	0.406 in	0.213 "	10.3 mm	5.4 mm	Radial	General Purpose	0.594 in	15.1 mm
