AFB0505 Series

Catalog

FAN AXIAL 50X15MM BALL 5VDC WIRE

Part	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Material - Blade	Material - Frame	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [z]	Bearing Type	RPM	Width [y]	Voltage - Rated	Approval Agency	Noise	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Weight [custom]	Weight [custom]	Fan Type	Features	Air Flow	Air Flow	Static Pressure	Static Pressure
Delta Electronics AFB0505LB-F00	5.5 V	4.5 V	70000 Hrs	Plastic	Plastic	150 mA	50 mm	50 mm	Ball	4000 RPM	15 mm	5 V	CE CSA UL VDE	24 dB	0.75 W	70 °C	-10 °C	3 Wire Leads	32.21 g	0.071 lb	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	0.277 m³/min	9.9 CFM	0.126 in H2O	31.4 Pa

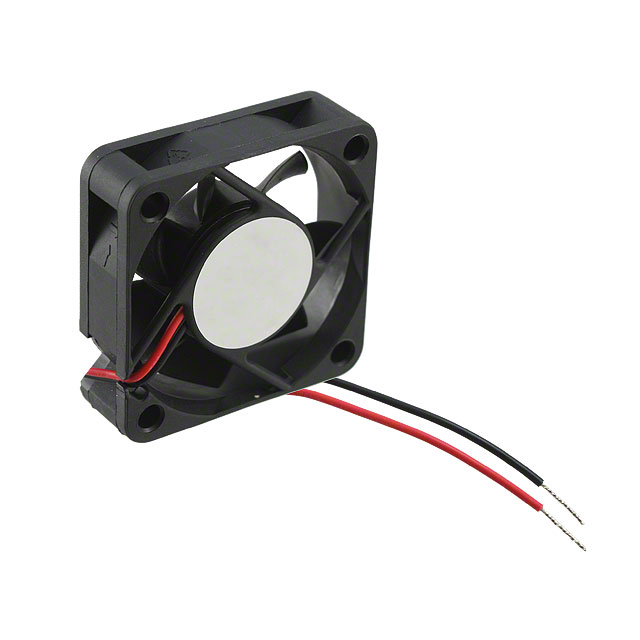

Delta Electronics AFB0505MB	5.5 V	4.5 V	70000 Hrs	Plastic	Plastic	0.22 A	50 mm	50 mm	Ball	4800 RPM	15 mm	5 V	CE CSA UL VDE	28 dB	1.1 W	70 °C	-10 °C	2 Wire Leads	32.21 g	0.071 lb	Tubeaxial		0.347 m³/min	12.4 CFM	0.181 in H2O	45.1 Pa

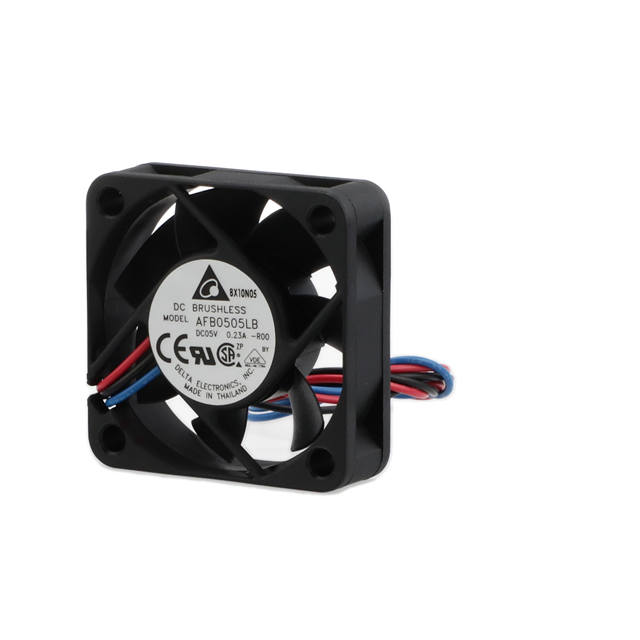

Delta Electronics AFB0505LB-R00	5.5 V	4.5 V	70000 Hrs	Plastic	Plastic	150 mA	50 mm	50 mm	Ball	4000 RPM	15 mm	5 V	CE CSA UL VDE	24 dB	0.75 W	70 °C	-10 °C	3 Wire Leads	32.21 g	0.071 lb	Tubeaxial	Locked Rotor Sensor	0.277 m³/min	9.9 CFM	0.126 in H2O	31.4 Pa
