V7-1S1 Series

Catalog

MICROSWITCH, SPDT, LEVER, 1A, 125VAC ROHS COMPLIANT: YES

Part	Differential Travel	Differential Travel	Voltage Rating - AC	Termination Style	Pretravel	Pretravel	Actuator Type	Operating Force	Overtravel [custom]	Overtravel [custom]	Switch Function	Mounting Type	Circuit	Operating Position	Operating Position	Release Force	Mechanical Life	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Operating Position [x]	Operating Position [x]

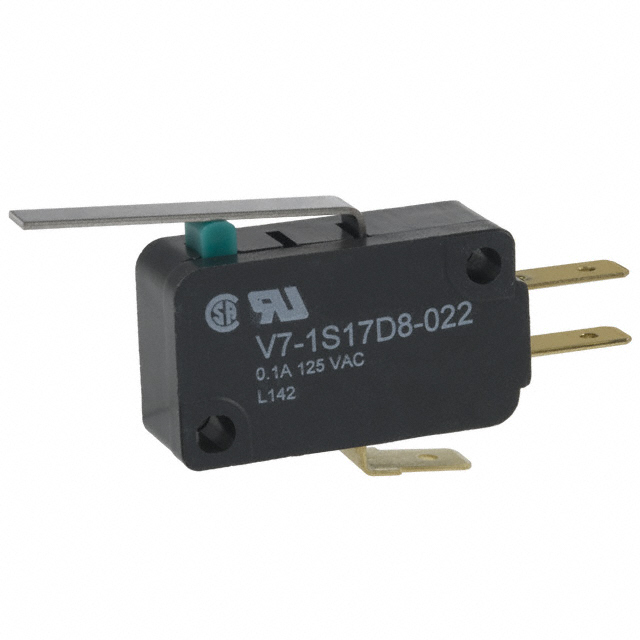

Honeywell Sensing and Productivity Solutions V7-1S17D8-022	0.76 mm	0.03 in	125 V	Quick Connect	0.12 in	3 mm	Lever Straight	85 gf	2.16 mm	0.085 "	On-Mom	Chassis Mount	SPDT	0.6 in	15.2 mm	8 gf	10000000 Cycles	100000 Cycles	85 °C	-40 C	100 mA

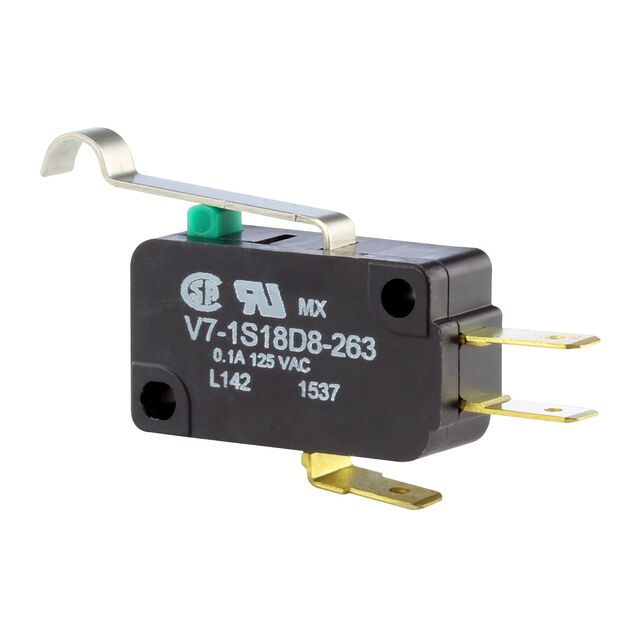

Honeywell Sensing and Productivity Solutions V7-1S18D8-263	0.76 mm	0.03 in	125 V	Quick Connect	0.11 in	2.8 mm	Lever Simulated Roller	90 gf	1.9 mm	0.075 in	On-Mom	Chassis Mount	SPDT			9 gf	10000000 Cycles	100000 Cycles	85 °C	-40 C	100 mA	18.5 mm	0.73 in

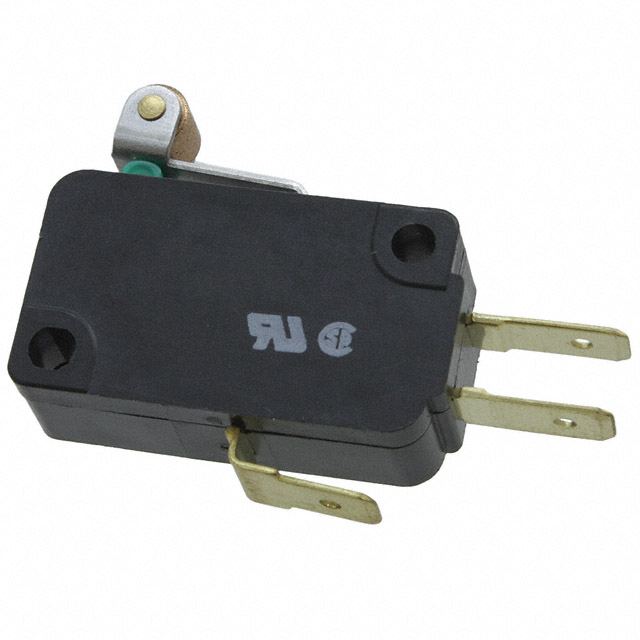

Honeywell Sensing and Productivity Solutions V7-1S17D8-201	0.3 mm	0.012 in	125 V	Quick Connect	0.047 in	1.2 mm	Lever Roller	170 gf	1 mm	0.04 "	On-Mom	Chassis Mount	SPDT	0.812 in	20.6 mm	20 gf	10000000 Cycles	100000 Cycles	85 °C	-40 C	100 mA

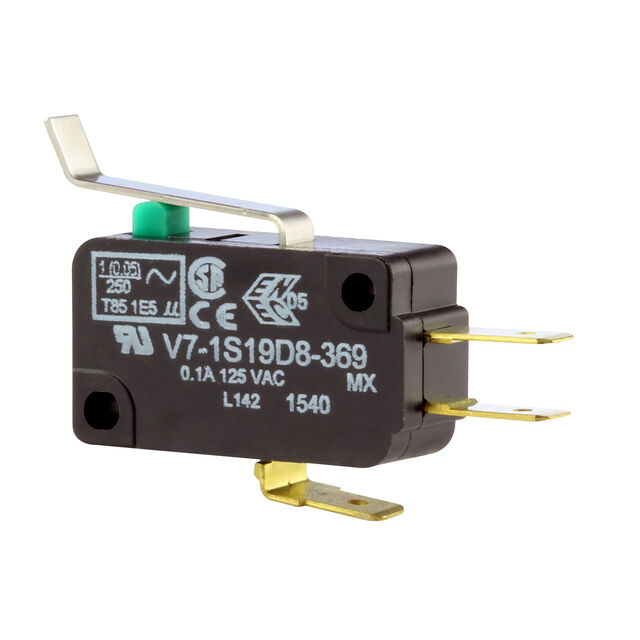

Honeywell Sensing and Productivity Solutions V7-1S19D8-369	0.56 mm	0.022 "	125 V	Quick Connect			Lever Formed	100 gf	1.45 mm	0.057 "	On-Mom	Chassis Mount	SPDT	0.764 in	19.4 mm	10 gf	10000000 Cycles	100000 Cycles	85 °C	-40 C	100 mA
Honeywell Sensing and Productivity Solutions V7-1S17D8-374			125 V	Quick Connect			Lever Formed	150 gf			On-Mom	Chassis Mount	SPDT				10000000 Cycles		85 °C	-40 C	100 mA
