D38999/20ZJ Series

Manufacturer: Conesys

Catalog

AE3 24C 12#16, 12#12 PIN RECP

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Note	Connector Type	Shell Size, MIL	Housing Color	Insert Material	Shell Finish	Contact Shape	Fastening Type	Grade	Mounting Feature	Primary Material	Number of Positions	Qualification	Orientation	Ingress Protection	Material Flammability Rating	Type	Contact Type	Mounting Type	Shielding	Contact Size [custom]	Contact Size [custom]	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Contact Size	Contact Size	Voltage Rating	Termination	Contact Finish - Mating	Contact Material	Color	Current Rating (Amps)	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions [custom]	Shell Size - Insert

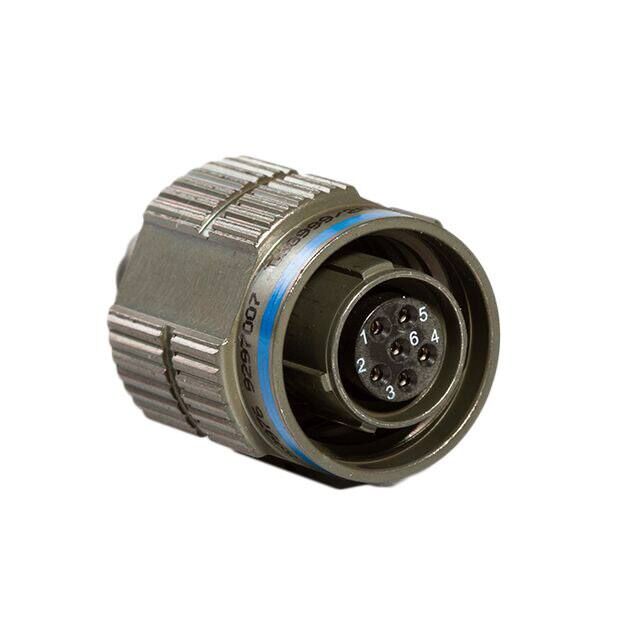

Conesys D38999/20ZJ24AA	-65 ░C	175 °C	Aluminum Aluminum Alloy	Contacts Not Included	Plug Housing Receptacle Housing	B J	Black Silver	Thermoplastic	Black Zinc Nickel Zinc Nickel	Circular	Threaded	Military	Flange	Metal	24	MIL-DTL-38999 Series III	A	Waterproof	UL94 V-0	For Male Pins	Crimp	Panel Mount	Shielded	12 16	12	25	24
Conesys D38999/20ZJ35AN	-65 ░C	175 °C	Aluminum Alloy	Contacts Not Included	Receptacle Housing	D	Black	Thermoplastic	Black Zinc Nickel	Circular	Threaded	Military	Flange	Metal	128	MIL-DTL-38999 Series III	N (Normal)	Waterproof	UL94 V-0	For Male Pins	Crimp	Panel Mount	Shielded					22D
Conesys D38999/20ZJ61AC	-65 ░C	175 °C	Aluminum	Contacts Not Included	Receptacle Housing	J	Black		Zinc Nickel	Circular	Threaded	Military	Flange		61	MIL-DTL-38999 Series III	C	Environment Resistant		For Male Pins	Crimp	Panel Mount	Shielded			61	25		20
Conesys D38999/20ZJ35PA	-65 ░C	125 °C	Aluminum Alloy		Receptacle Male Pins	J		Thermoplastic	Black Zinc Nickel		Threaded	Military	Flange	Metal	128	MIL-DTL-38999 Series III	A	Waterproof	UL94 V-0			Panel Mount	Shielded							500 VAC	Crimp	Gold	Copper Alloy	Black	5 A	Aerospace Marine Military	50 µin	1.27 µm
Conesys D38999/20ZJ46BA	-65 ░C	175 °C	Aluminum Aluminum Alloy	Contacts Not Included	Receptacle Housing	F J	Black Silver	Thermoplastic	Black Zinc Nickel Zinc Nickel	Circular	Threaded	Military	Flange	Metal	2 44	MIL-DTL-38999 Series III	A	Waterproof	UL94 V-0	For Female Sockets	Crimp	Panel Mount	Shielded			46	25	16 20 8 Coax
Conesys D38999/20ZJ61SC	-65 ░C	125 °C	Aluminum Alloy		Receptacle Female Sockets	J		Thermoplastic	Black Zinc Nickel		Threaded	Military	Flange	Metal	61	MIL-DTL-38999 Series III	C	Waterproof	UL94 V-0			Panel Mount	Shielded			61	25			500 VAC	Crimp	Gold	Copper Alloy	Black	7.5 A	Aerospace Marine Military	50 µin	1.27 µm
Conesys D38999/20ZJ11AA	-65 ░C	175 °C	Aluminum Aluminum Alloy	Contacts Not Included	Plug Housing Receptacle Housing	J	Black Silver	Thermoplastic	Black Zinc Nickel Zinc Nickel	Circular	Threaded	Military	Flange	Metal	11	MIL-DTL-38999 Series III	A	Waterproof	UL94 V-0	For Male Pins	Crimp	Panel Mount	Shielded						10 20										9	25-11
Conesys D38999/20ZJ4SA	-65 ░C	200 °C	Aluminum		Receptacle Female Sockets	J		Thermoplastic	Black Zinc Nickel		Threaded		Flange	Metal	56		A	IP67 - Dust Tight Waterproof				Panel Mount	Shielded								Crimp	Gold	Copper Alloy	Black	7.5 A 13 A	Aviation Marine Military	50 µin	1.27 µm		25-4
Conesys D38999/20ZJ37AC	-65 ░C	175 °C	Aluminum Alloy	Contacts Not Included	Receptacle Housing	J	Black	Thermoplastic	Black Zinc Nickel	Circular	Threaded	Military	Flange	Metal	37	MIL-DTL-38999 Series III	C	Waterproof	UL94 V-0	For Male Pins	Crimp	Panel Mount	Shielded			37	25		16
Conesys D38999/20ZJ11PN	-65 ░C	200 °C	Aluminum		Receptacle Male Pins	J		Thermoplastic	Black Zinc Nickel		Threaded		Flange	Metal	11		N (Normal)	IP67 - Dust Tight Waterproof				Panel Mount	Shielded								Crimp	Gold	Copper Alloy	Black	7.5 A 33 A	Aviation Marine Military	50 µin	1.27 µm		25-11
