2304185 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

EP2.5 SHROUDED HDR ASSY 4P VERT

Part	Number of Rows	Insulation Height [z]	Insulation Height [z]	Contact Material	Number of Positions	Insulation Color	Style	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating	Connector Type	Number of Positions Loaded	Contact Finish - Post	Mounting Type	Voltage Rating	Contact Shape	Termination	Insulation Material	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Shrouding

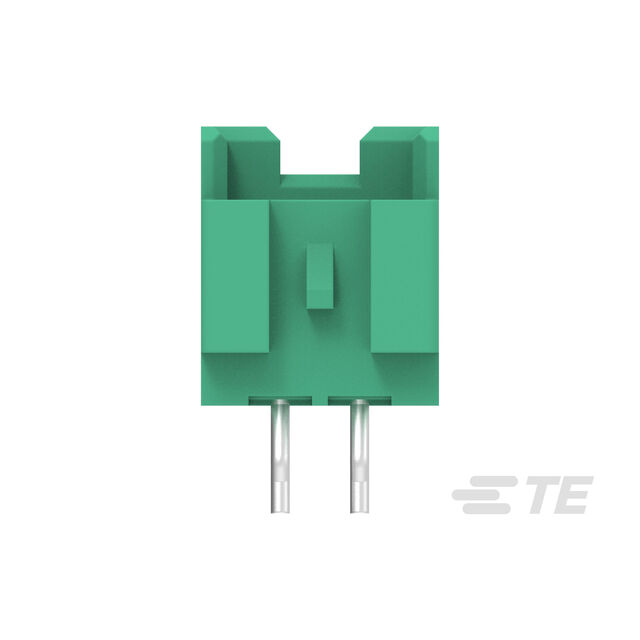

TE Connectivity Raychem Cable Protection 2304185-4	1	0.346 in	8.8 mm	Brass	4	Natural	Board to Cable/Wire	Male Pin	105 ░C	-55 °C	Friction Lock	0.134 in	3.4 mm	UL94 V-0	Header	All	Tin	Through Hole	250 VAC	Circular	Kinked Pin Solder	Polybutylene Terephthalate (PBT)	3.61 mm	0.142 in	2.5 mm	0.098 in	4.2 A	Shrouded - 4 Wall

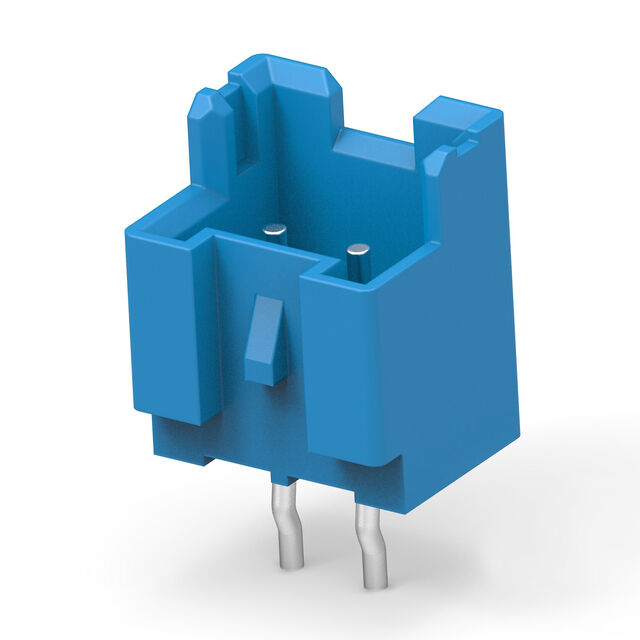

TE Connectivity Raychem Cable Protection 2-2304185-2	1	0.346 in	8.8 mm	Brass	2	Blue	Board to Cable/Wire	Male Pin	105 ░C	-55 °C	Friction Lock	0.134 in	3.4 mm	UL94 V-0	Header	All	Tin	Through Hole	250 VAC	Circular	Kinked Pin Solder	Polybutylene Terephthalate (PBT)	3.61 mm	0.142 in	2.5 mm	0.098 in	4.2 A	Shrouded - 4 Wall
TE Connectivity Raychem Cable Protection 5-2304185-2	1	0.346 in	8.8 mm	Brass	2	Green	Board to Cable/Wire	Male Pin	105 ░C	-55 °C	Friction Lock	0.134 in	3.4 mm	UL94 V-0	Header	All	Tin	Through Hole	250 VAC	Circular	Kinked Pin Solder	Polybutylene Terephthalate (PBT)	3.6 mm	0.142 in	2.5 mm	0.098 in		Shrouded - 4 Wall

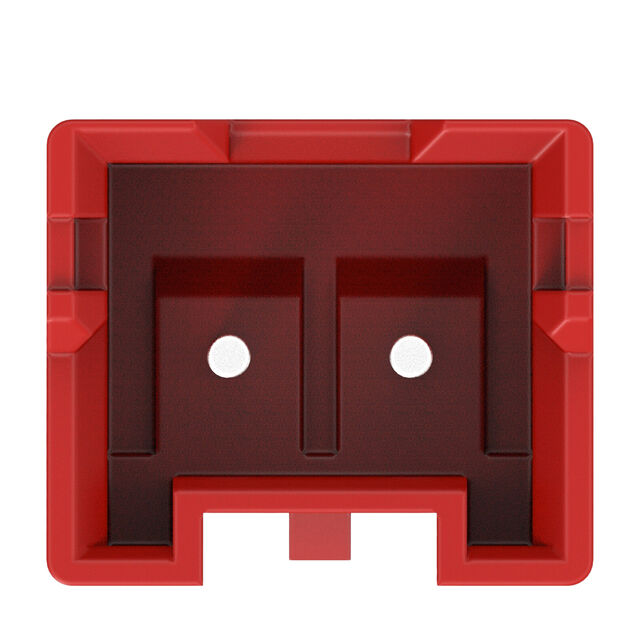

TE Connectivity Raychem Cable Protection 1-2304185-2	1	0.346 in	8.8 mm	Brass	2	Red	Board to Cable/Wire	Male Pin	105 ░C	-55 °C	Friction Lock	0.134 in	3.4 mm	UL94 V-0	Header	All	Tin	Through Hole	250 VAC	Circular	Kinked Pin Solder	Polybutylene Terephthalate (PBT)	3.61 mm	0.142 in	2.5 mm	0.098 in	4.2 A	Shrouded - 4 Wall

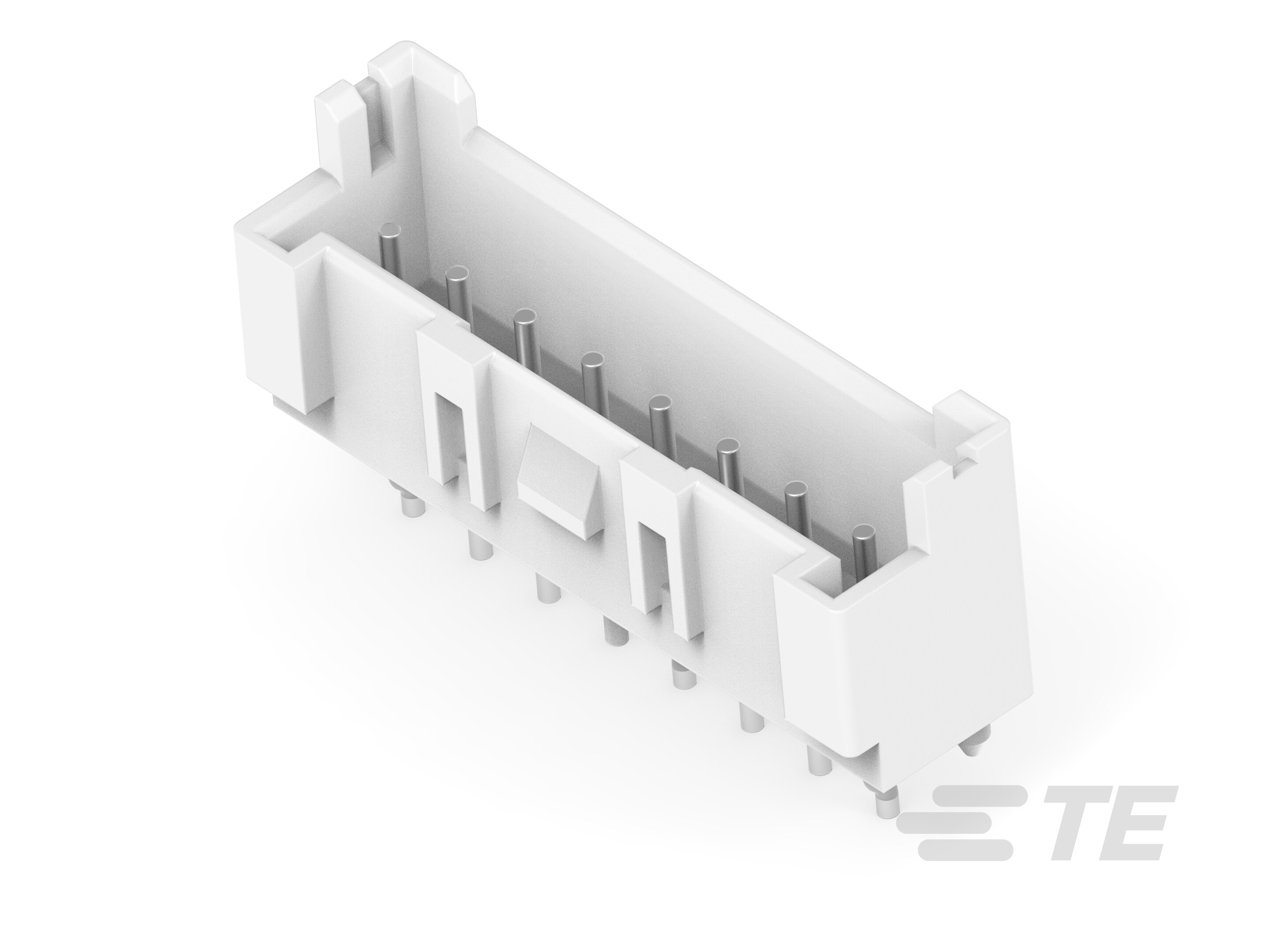

TE Connectivity Raychem Cable Protection 2304185-8	1	0.346 in	8.8 mm	Brass	8	Natural	Board to Cable/Wire	Male Pin	105 ░C	-55 °C	Friction Lock	0.134 in	3.4 mm	UL94 V-0	Header	All	Tin	Through Hole	250 VAC	Circular	Kinked Pin Solder	Polybutylene Terephthalate (PBT)	3.61 mm	0.142 in	2.5 mm	0.098 in	4.2 A	Shrouded - 4 Wall

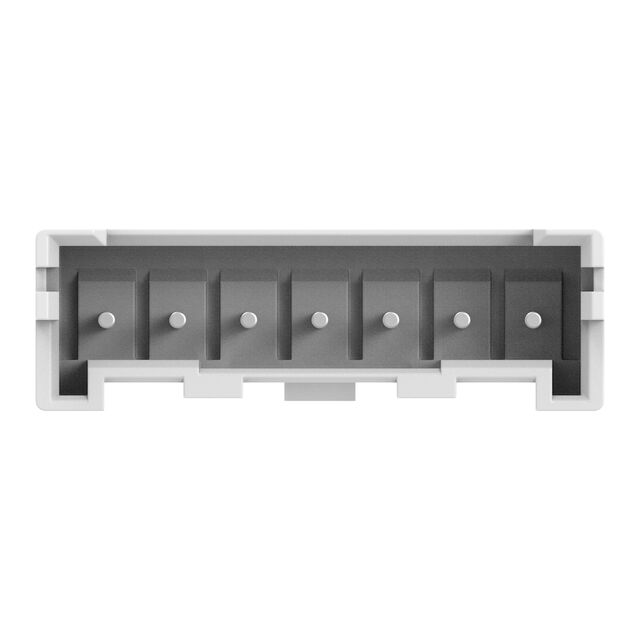

TE Connectivity Raychem Cable Protection 2304185-7	1	0.346 in	8.8 mm	Brass	7	Natural	Board to Cable/Wire	Male Pin	105 ░C	-55 °C	Friction Lock	0.134 in	3.4 mm	UL94 V-0	Header	All	Tin	Through Hole	250 VAC	Circular	Kinked Pin Solder	Polybutylene Terephthalate (PBT)			2.5 mm	0.098 in		Shrouded - 4 Wall

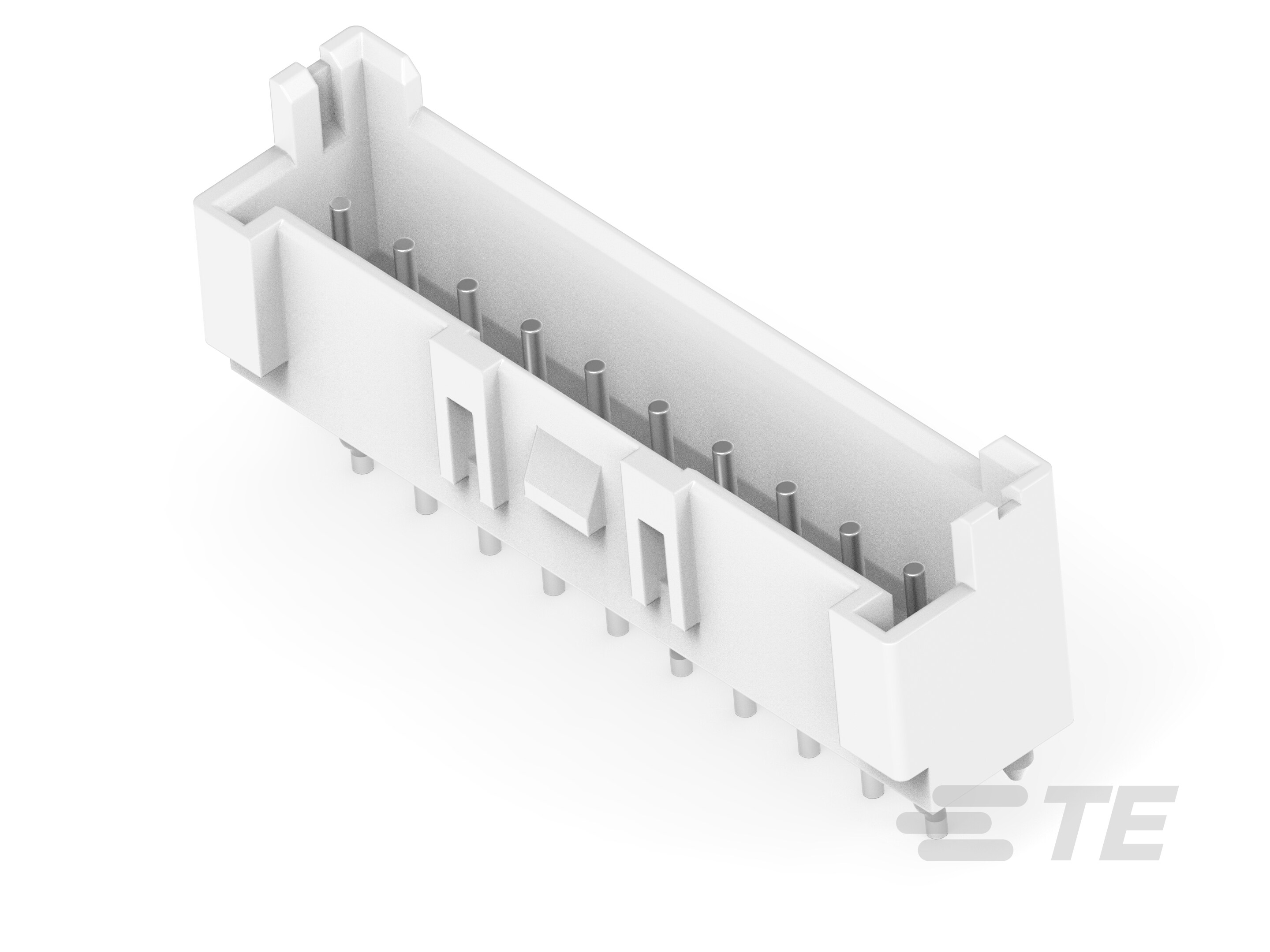

TE Connectivity Raychem Cable Protection 1-2304185-0	1	0.346 in	8.8 mm	Brass	10	Natural	Board to Cable/Wire	Male Pin	105 ░C	-55 °C	Friction Lock	0.134 in	3.4 mm	UL94 V-0	Header	All	Tin	Through Hole	250 VAC	Circular	Kinked Pin Solder	Polybutylene Terephthalate (PBT)	3.61 mm	0.142 in	2.5 mm	0.098 in	4.2 A	Shrouded - 4 Wall
TE Connectivity Raychem Cable Protection 2304185-2	1	0.346 in	8.8 mm	Brass	2	Natural	Board to Cable/Wire	Male Pin	105 ░C	-55 °C	Friction Lock	0.134 in	3.4 mm	UL94 V-0	Header	All	Tin	Through Hole	250 VAC	Circular	Kinked Pin Solder	Polybutylene Terephthalate (PBT)	3.61 mm	0.142 in	2.5 mm	0.098 in	4.2 A	Shrouded - 4 Wall
TE Connectivity Raychem Cable Protection 2304185-3	1	0.346 in	8.8 mm	Brass		Natural	Board to Cable/Wire	Male Pin	105 ░C	-55 °C	Friction Lock	0.134 in	3.4 mm	UL94 V-0	Header	All	Tin	Through Hole	250 VAC	Circular	Kinked Pin Solder	Polybutylene Terephthalate (PBT)	3.61 mm	0.142 in	2.5 mm	0.098 in	4.2 A	Shrouded - 4 Wall
