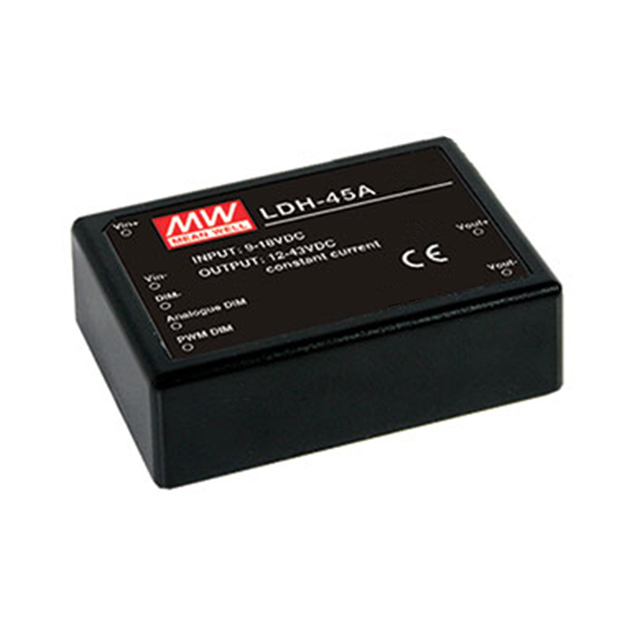

LDH-45A Series

Catalog

LED DRIVER CC BOOST 12-64V 700MA

Part	Current - Output (Max) [Max]	Efficiency	Mounting Type	Voltage - Output [Min]	Voltage - Output [Max]	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Dimming	Features	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Approval Agency	Power (Watts)	Voltage - Input (Min) [Min]	Topology	Package / Case	Termination Style
MEAN WELL USA Inc. LDH-45A-700	700 mA	90 %	Through Hole	12 V	64 V	Constant Current	53 mm	2.09 "	0.89 "	22.7 mm	2.95 "	75 mm	18 V	Analog PWM	OVP Remote On/Off SCP UVLO	70 °C	-40 C	1	CE	45 W	9 V	Boost	7-DIP Module

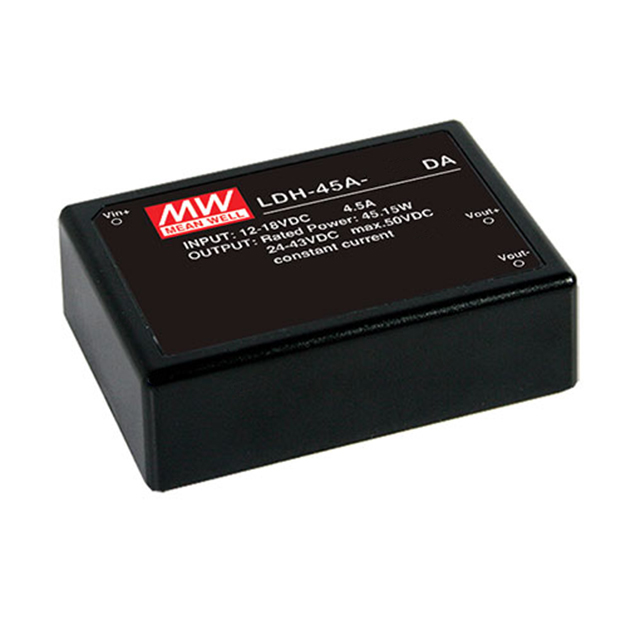

MEAN WELL USA Inc. LDH-45A-500DA	500 mA	90 %	Through Hole	24 V	86 V	Constant Current	53 mm	2.09 "	0.89 "	22.7 mm	2.95 "	75 mm	18 V	DALI	OVP Remote On/Off SCP UVLO	70 °C	-40 C	1	CE	43 W	9 V	Boost	7-DIP Module
MEAN WELL USA Inc. LDH-45A-700DA	700 mA	90 %	Through Hole	24 V	64 V	Constant Current	53 mm	2.09 "	0.89 "	22.7 mm	2.95 "	75 mm	18 V	DALI	OVP Remote On/Off SCP UVLO	70 °C	-40 C	1	CE	45 W	9 V	Boost	7-DIP Module
MEAN WELL USA Inc. LDH-45A-700W	700 mA	90 %	Chassis Mount	12 V	64 V	Constant Current	53.1 mm	2.09 "	0.89 "	22.6 mm	2.95 "	74.9 mm	18 V	Analog PWM	OVP Remote On/Off SCP	70 °C	-40 C	1	CE	45 W	9 V	Boost		Wire Leads
MEAN WELL USA Inc. LDH-45A-350WDA	350 mA	91 %	Chassis Mount	24 V	86 V	Constant Current	53.1 mm	2.09 "	0.89 "	22.6 mm	2.95 "	74.9 mm	18 V	DALI	OVP Remote On/Off SCP	70 °C	-40 C	1	CE	30 Watts	9 V	Boost		Wire Leads
MEAN WELL USA Inc. LDH-45A-1050	1.05 A	91 %	Through Hole	12 V	43 V	Constant Current	53 mm	2.09 "	0.89 "	22.7 mm	2.95 "	75 mm	18 V	Analog PWM	OVP Remote On/Off SCP UVLO	70 °C	-40 C	1	CE	45 W	9 V	Boost	7-DIP Module
