325-068 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 3.18 MM, 68 CONTACTS, PANEL MOUNT, STRAIGHT

Part	Material - Insulation	Termination Rows [custom]	Number of Rows [custom]	Card Thickness	Card Thickness	Card Type	Contact Finish	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Contact Finish Thickness	Contact Finish Thickness	Read Out	Termination	Number of Positions/Bay/Row	Color	Mounting Type	Number of Positions	Pitch	Pitch	Contact Material	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 325-068-500-201	Diallyl Phthalate (DAP)	2	2	3.18 mm	0.125 in	Non Specified - Dual Edge	Gold	Cantilever	-65 ░C	125 °C	Female	0.25 Ám	10 Áin	Dual	Solder Eyelet(s)	34	Green	Through Hole	68 positions	0.1 "	2.54 mm	Copper Alloy

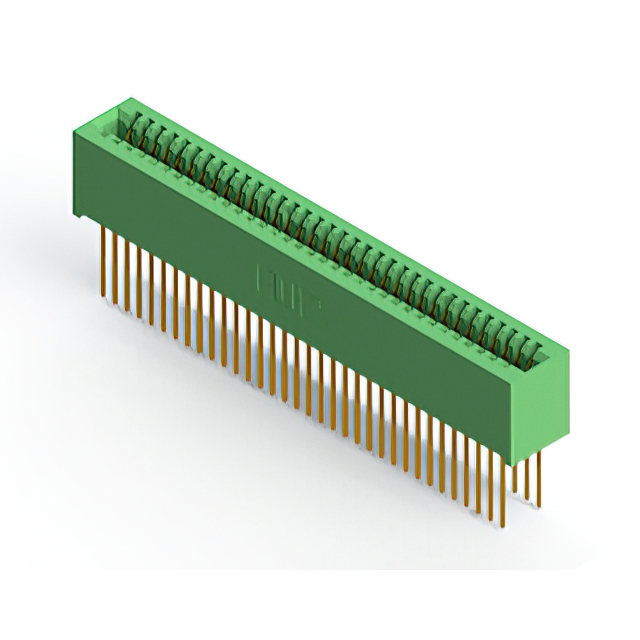

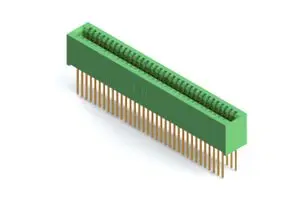

EDAC Inc. 325-068-540-201	Diallyl Phthalate (DAP)	2	2	3.18 mm	0.125 in	Non Specified - Dual Edge	Gold	Cantilever	-65 ░C	125 °C	Female	0.25 Ám	10 Áin	Dual	Wire Wrap	34	Green	Through Hole	68 positions	0.1 "	2.54 mm	Copper Alloy

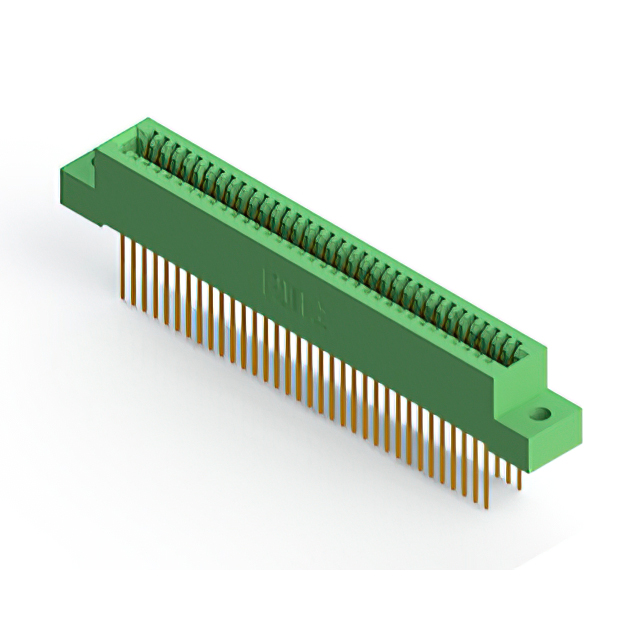

EDAC Inc. 325-068-540-209	Diallyl Phthalate (DAP)	2	2	3.18 mm	0.125 in	Non Specified - Dual Edge	Gold	Cantilever	-65 ░C	125 °C	Female	0.25 Ám	10 Áin	Dual	Wire Wrap	34	Green	Through Hole	68 positions	0.1 "	2.54 mm	Copper Alloy	Flush Mount Top Opening Unthreaded	0.16 "	4.06 mm
EDAC Inc. 325-068-520-207	Diallyl Phthalate (DAP)	2	2	3.18 mm	0.125 in	Non Specified - Dual Edge	Gold	Cantilever	-65 ░C	125 °C	Female	0.25 Ám	10 Áin	Dual	Solder	34	Green	Through Hole	68 positions	0.1 "	2.54 mm	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 325-068-500-207	Diallyl Phthalate (DAP)	2	2	3.18 mm	0.125 in	Non Specified - Dual Edge	Gold	Cantilever	-65 ░C	125 °C	Female	0.25 Ám	10 Áin	Dual	Solder Eyelet(s)	34	Green	Through Hole	68 positions	0.1 "	2.54 mm	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 325-068-520-208	Diallyl Phthalate (DAP)	2	2	3.18 mm	0.125 in	Non Specified - Dual Edge	Gold	Cantilever	-65 ░C	125 °C	Female	0.25 Ám	10 Áin	Dual	Solder	34	Green	Through Hole	68 positions	0.1 "	2.54 mm	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 325-068-520-209	Diallyl Phthalate (DAP)	2	2	3.18 mm	0.125 in	Non Specified - Dual Edge	Gold	Cantilever	-65 ░C	125 °C	Female	0.25 Ám	10 Áin	Dual	Solder	34	Green	Through Hole	68 positions	0.1 "	2.54 mm	Copper Alloy	Flush Mount Top Opening Unthreaded	0.16 "	4.06 mm
EDAC Inc. 325-068-520-201	Diallyl Phthalate (DAP)	2	2	3.18 mm	0.125 in	Non Specified - Dual Edge	Gold	Cantilever	-65 ░C	125 °C	Female	0.25 Ám	10 Áin	Dual	Solder	34	Green	Through Hole	68 positions	0.1 "	2.54 mm	Copper Alloy

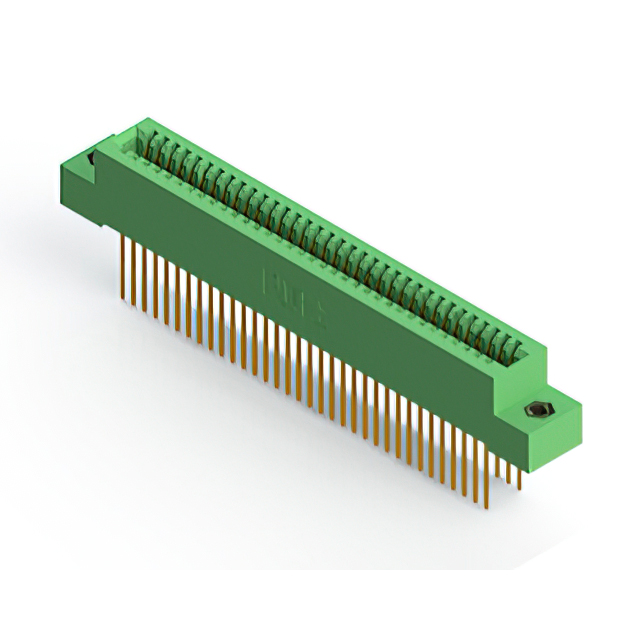

EDAC Inc. 325-068-540-207	Diallyl Phthalate (DAP)	2	2	3.18 mm	0.125 in	Non Specified - Dual Edge	Gold	Cantilever	-65 ░C	125 °C	Female	0.25 Ám	10 Áin	Dual	Wire Wrap	34	Green	Through Hole	68 positions	0.1 "	2.54 mm	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening
