1480-8 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

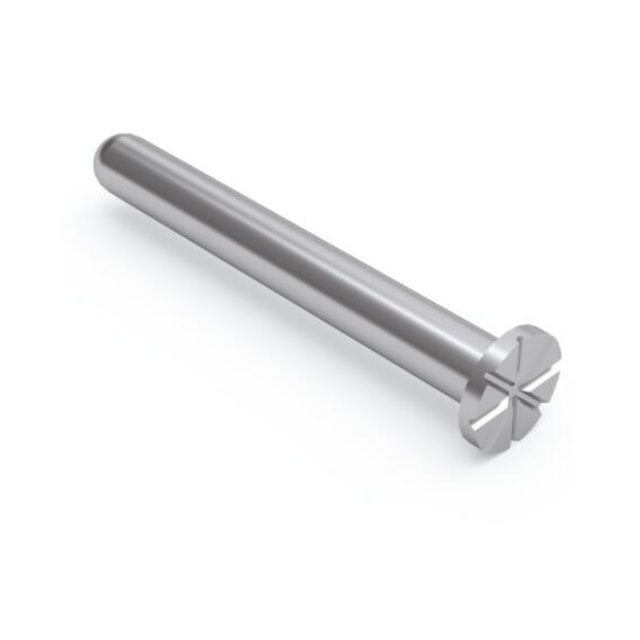

SURFACE MOUNT PIN, .680" LONG SL
| Part | Terminal Type | Pin Size - Above Flange | Pin Size - Above Flange [diameter] | Contact Finish | Length - Overall [x] | Length - Overall [x] | Terminal Style | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Type | Length - Above Flange [x] | Length - Above Flange [x] | Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | PC Pin | 2.03 mm | 0.08 in | Tin | 17.27 mm | 0.68 " | Single End | 0.14 in | 3.56 mm | Surface Mount | 16.71 mm | 0.658 in | Solder | 200 Áin | 5.08 Ám | Brass Alloy | 2.13 mm | 0.084 in |
