WR9QH1000 Series

Catalog

AC/DC WALL MOUNT ADAPTER 18V 18W

Part	Power (Watts)	Region Utilized	No Load Power Consumption	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Form	Input Type	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Output Connector	Input Connector	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Voltage - Output	Standard Number	Cord Length	Cord Length	Current - Output (Max) [Max]	Polarization	Output Connector [diameter]	Output Connector [x]

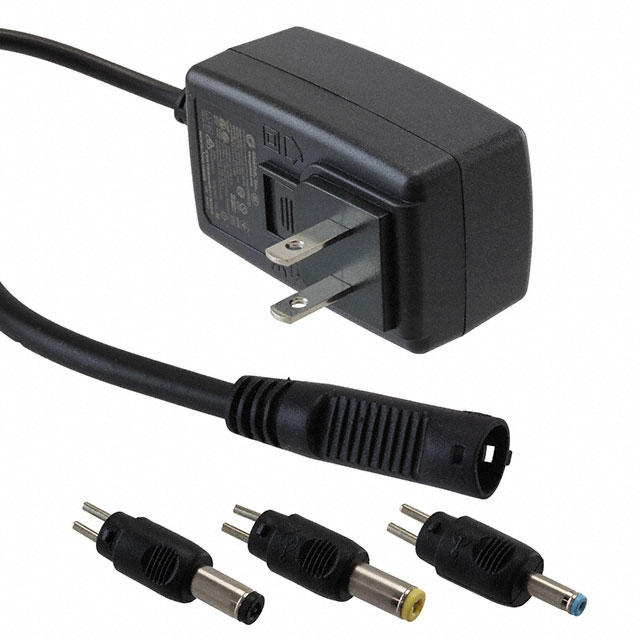

GlobTek, Inc. WR9QH1000T00NAIMR6B	18 W	International	75 mW	264 VAC	90 VAC	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UkrSEPRO UL VCCI	Wall Mount	Multi-Blade (Sold Separately)	Level VI	74 mm	1.45 in	2.91 in	43.5 mm	1.71 in	36.8 mm	Barrel Plug Kit (1.3mm x 3.5mm	Multi-Blade (Sold Separately)	-20 ░C	40 °C	Household Appliances ITE (Commercial) Medical	18 V	1310 60335-1 60601-1-11 60601-1-2 60950-1 61558-1 62368-1	1.5 m	59 in	1 A

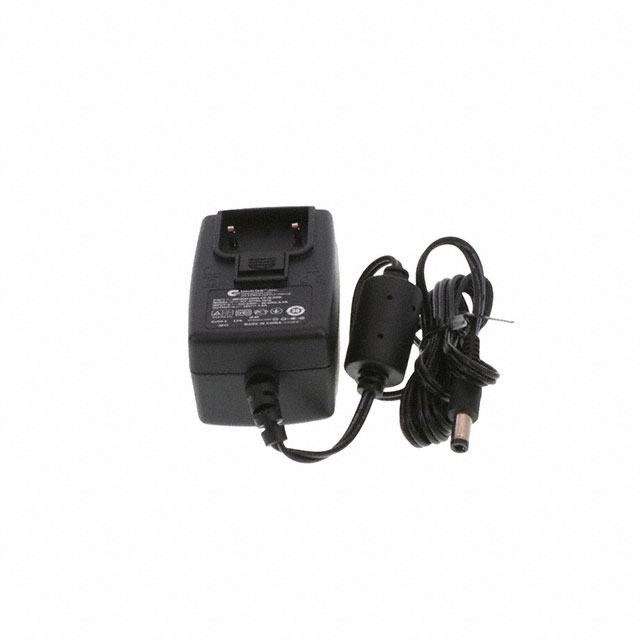

GlobTek, Inc. WR9QH1000LCP-N(R6B)	18 W	International	75 mW	264 VAC	90 VAC	BSMI CB CCC CE cULus EAC FCC LPS PSE RCM UkrSEPRO VCCI	Wall Mount	Multi-Blade (Sold Separately)	CoC Tier 2 Level VI	74 mm	1.34 "	2.91 in	43.5 mm	1.71 in	34 mm	Barrel Plug	Multi-Blade (Sold Separately)	0 °C	40 °C	ITE (Commercial)	18 V	60950-1 62368-1	1.83 m	72 in	1 A	Positive Center	2.5 mm 5.5 mm	11 mm
