880661 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

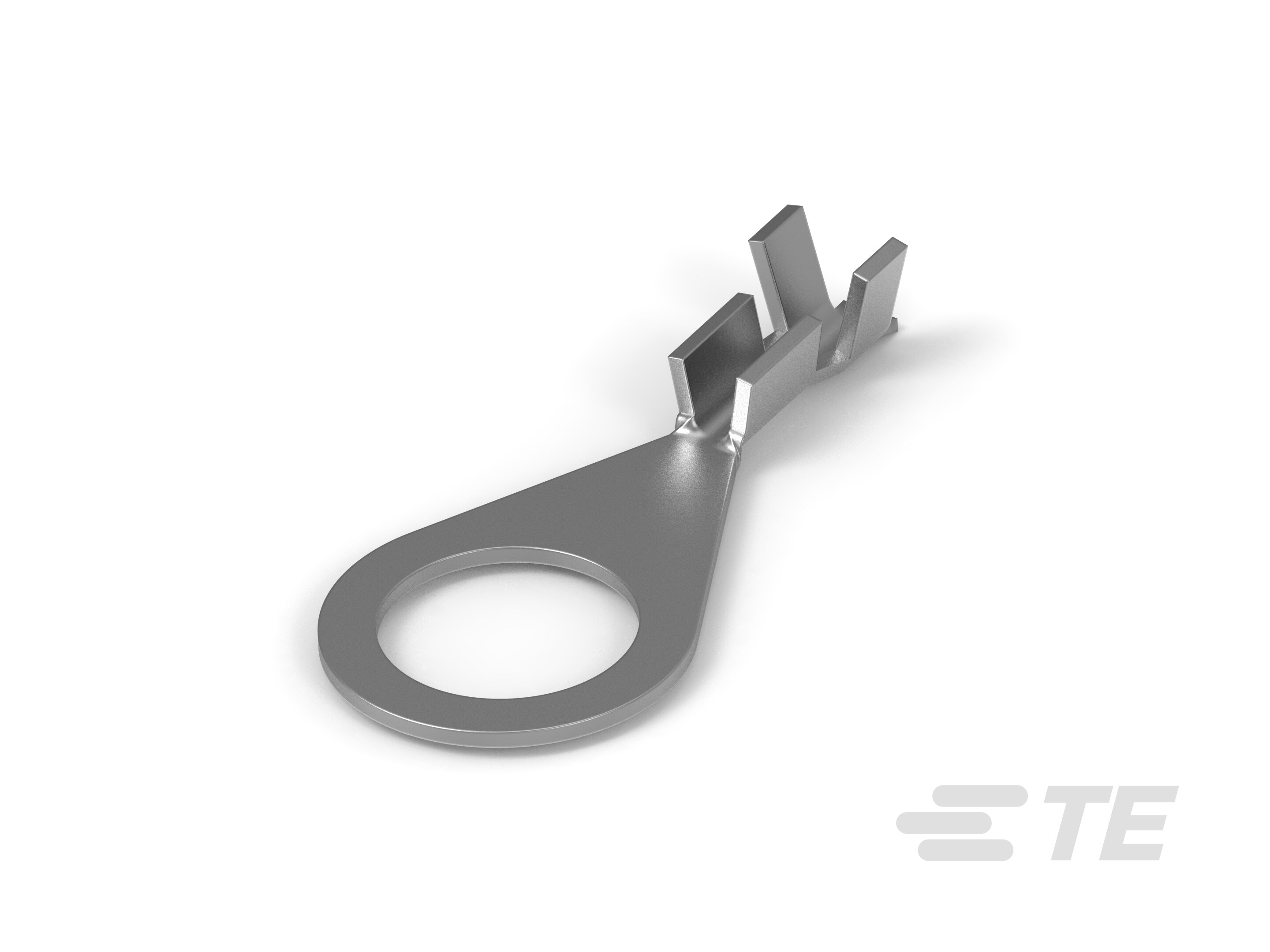

CONN RING CIRC 17-20AWG CRIMP
| Part | Insulation Diameter [Min] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Max] | Contact Finish | Thickness | Thickness | Terminal Type | Width - Outer Edges [x] | Width - Outer Edges [x] | Insulation | Termination | Length - Overall [x] | Length - Overall [x] | Mounting Type | Wire Gauge [custom] | Wire Gauge [custom] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.055 in | 1.4 mm | 0.091 " | 2.31 mm | Tin | 0.61 mm | 0.024 " | Circular | 0.472 in | 12 mm | Non-Insulated | Crimp | 25.8 mm | 1.016 in | Free Hanging (In-Line) | 17 | 20 AWG | Brass |
