EKB20 Series
Manufacturer: TE Intercontec
Beta
⌘K

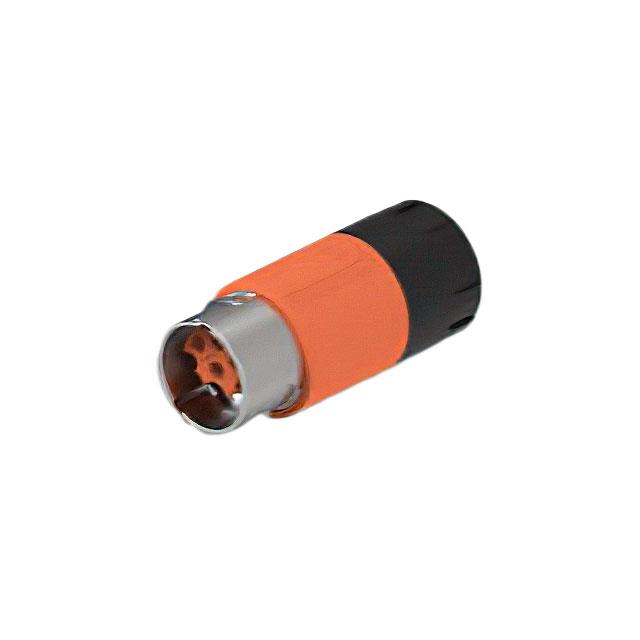

CONN RCPT HSG MALE 9POS INLINE
| Part | Includes | Housing Color | Number of Positions | Material Flammability Rating | Shell Material | Fastening Type | Connector Type | Type | Note | Shielding | Features | Contact Shape | Mounting Type | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Insert Material | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Intercontec | 1 Clip 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing 7 pcs - 1 Contact Block | Orange | 9 | UL94 V-0 | Zinc Die Cast | Bayonet Lock | Receptacle Housing | For Male Pins | Contacts Not Included | Shielded | Backshell Cable Clamp | Circular | Free Hanging (In-Line) | IP66 IP67 | -20 ░C | 130 °C | Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Keyed |
TE Intercontec | 1 Clip 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing 7 pcs - 1 Contact Block | Orange | 9 | UL94 V-0 | Zinc Die Cast | Bayonet Lock | Receptacle Housing | For Male Pins | Contacts Not Included | Shielded | Backshell Cable Clamp | Circular | Free Hanging (In-Line) | IP66 IP67 | -20 ░C | 130 °C | Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Keyed |
