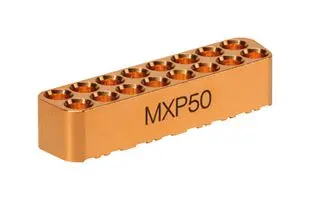

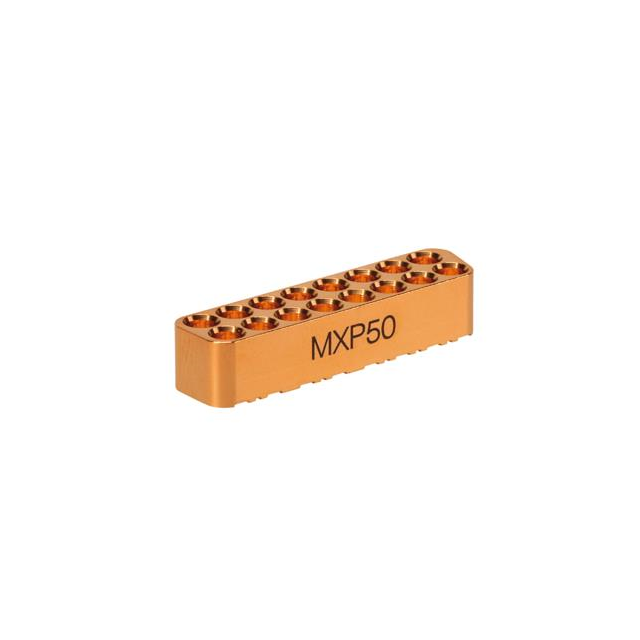

2X8A_81_MXP Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K
RF COAX CONN, PLUG, PCB, 50 OHM ROHS COMPLIANT: YES
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Center Contact Plating | Body Finish | Body Material | Connector Type | Housing Color | Fastening Type | Shield Termination | Impedance | Number of Ports | Frequency - Max [Max] | Connector Style | Mounting Type | Center Contact Material | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | Polyetheretherketone (PEEK) | -55 C | 85 °C | 500 | Gold | Gold | Brass | Plug Male Pin | Gold | Snap-On | Solder | 50 Ohms | 16 | 50 GHz | MXP | Surface Mount | Beryllium Copper | Solder |
