5478C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

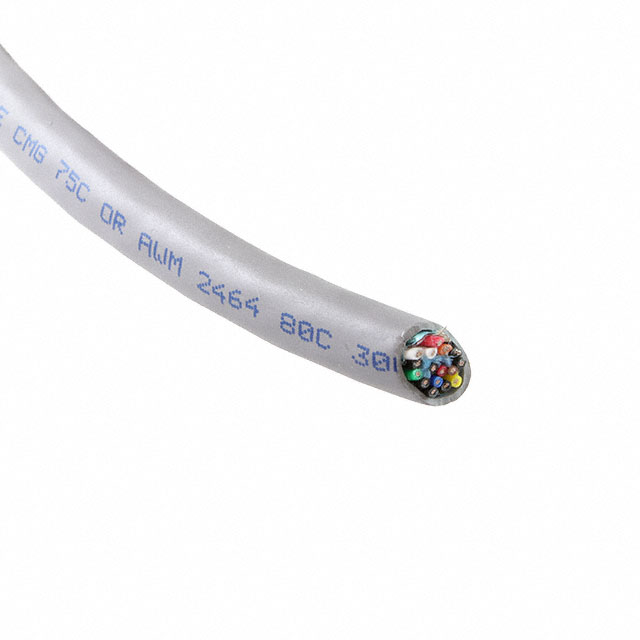

MULTIPAIR CABLE, COMMUNICATION, SHIELDED, 8 PAIR, 24 AWG, 0.23 MM², 1000 FT, 304.8 M
| Part | Shield Coverage | Shield Material | Length | Length | Conductor Insulation | Conductor Material | Jacket Color | Wire Gauge | Jacket (Insulation) Material | Cable Type | Features | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Operating Temperature [Max] | Operating Temperature [Min] | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | Copper Tinned | Slate | 24 AWG | Poly-Vinyl Chloride (PVC) | Multi-Pair | Drain Wire | UL Style 2464 | 8.03 mm | 0.316 " | 0.035 in | 0.889 mm | 16 | 80 °C | -20 ░C | 300 VDC | 7 | 32 AWG | Foil | ||
ALPHA WIRE | 100 % | Aluminum | 152.4 m | 500 ft | Poly-Vinyl Chloride (PVC) | Copper Tinned | Slate | 24 AWG | Poly-Vinyl Chloride (PVC) | Multi-Pair | Drain Wire | UL Style 2464 | 8.03 mm | 0.316 " | 0.035 in | 0.889 mm | 16 | 80 °C | -20 ░C | 300 VDC | 7 | 32 AWG | Foil | ||
ALPHA WIRE | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | Copper Tinned | Slate | 24 AWG | Poly-Vinyl Chloride (PVC) | Multi-Pair | Drain Wire | UL Style 2464 | 8.03 mm | 0.316 " | 0.035 in | 0.889 mm | 16 | 80 °C | -20 ░C | 300 VDC | 7 | 32 AWG | Foil | 100 ft | 30.5 m |
