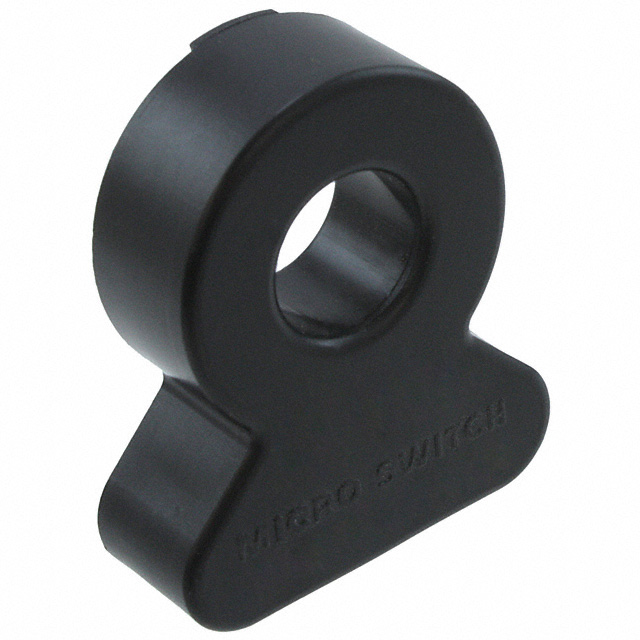

CSLA1 Series

Catalog

SENSOR CURRENT HALL 100A AC/DC

Part	Polarization	Current - Supply (Max) [Max]	Output	For Measuring	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensor Type	Sensitivity	Number of Channels	Current - Sensing	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case
Honeywell Sensing and Productivity Solutions CSLA1GF	Bidirectional	19 mA	Ratiometric Voltage	AC/DC	8 V	16 V	Hall Effect Open Loop	29.7 mV/N	1	100 A	-25 °C	85 °C	Through Hole	Module Single Pass Through
Honeywell Sensing and Productivity Solutions CSLA1CE	Bidirectional	19 mA	Ratiometric Voltage	AC/DC	8 V	16 V	Hall Effect Open Loop	39.4 mV/N	1	75 A	-25 °C	85 °C	Through Hole	Module Single Pass Through

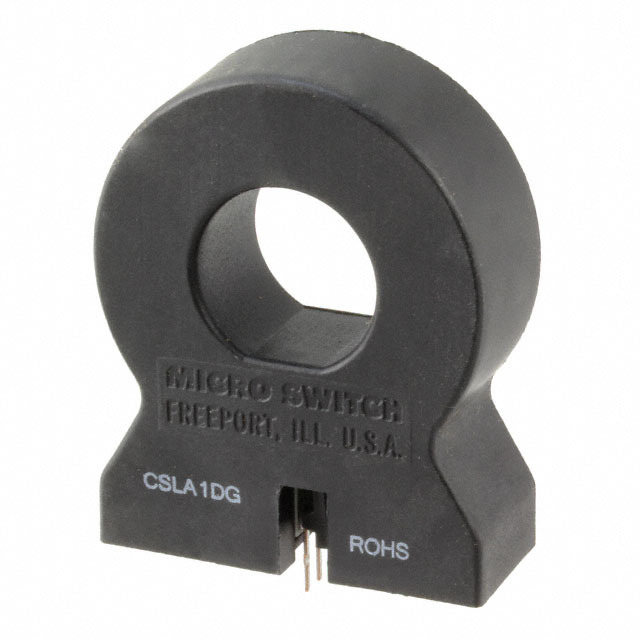

Honeywell Sensing and Productivity Solutions CSLA1DG	Bidirectional	19 mA	Ratiometric Voltage	AC/DC	8 V	16 V	Hall Effect Open Loop	24.6 mV/N	1	120 A	-25 °C	85 °C	Through Hole	Module Single Pass Through
Honeywell Sensing and Productivity Solutions CSLA1GD	Bidirectional	19 mA	Ratiometric Voltage	AC/DC	8 V	16 V	Hall Effect Open Loop	49.6 mV/N	1	57 A	-25 °C	85 °C	Through Hole	Module Single Pass Through
Honeywell Sensing and Productivity Solutions CSLA1CH	Bidirectional	19 mA	Ratiometric Voltage	AC/DC	8 V	16 V	Hall Effect Open Loop	19.6 mV/N	1	150 A	-25 °C	85 °C	Through Hole	Module Single Pass Through
