CDDA30 Series
Manufacturer: ChromeLED
Beta
⌘K

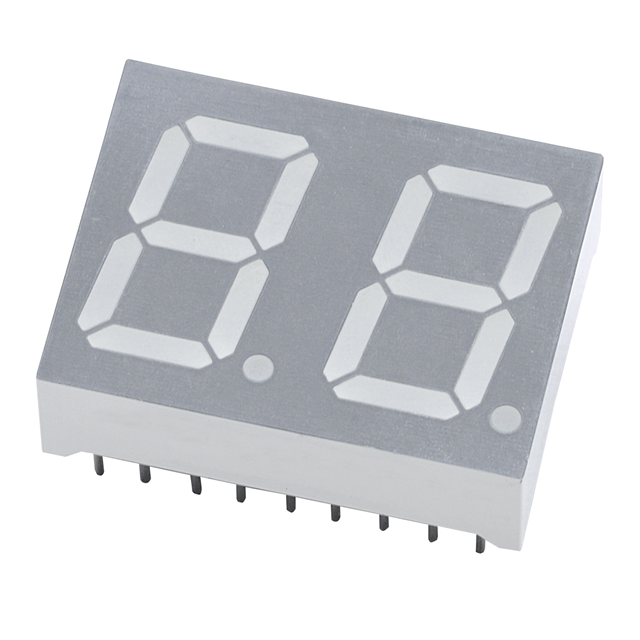

DISPLAY 7SEG 0.30" DUAL GREEN 10
| Part | Number of Characters | Package / Case | Digit/Alpha Size | Digit/Alpha Size | Voltage - Forward (Vf) (Typ) | Millicandela Rating | Power Dissipation (Max) [Max] | Wavelength - Peak | Common Pin | Current - Test | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Color | Display Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ChromeLED | 2 | 10-DIP | 7.62 mm | 0.3 in | 2 V | 3 mcd | 65 mW | 568 nm | Common Anode | 10 mA | 15.5 mm | 7.2 mm | 0.591 in | 0.283 " | 15 mm | 0.61 in | Green | 7-Segment |
