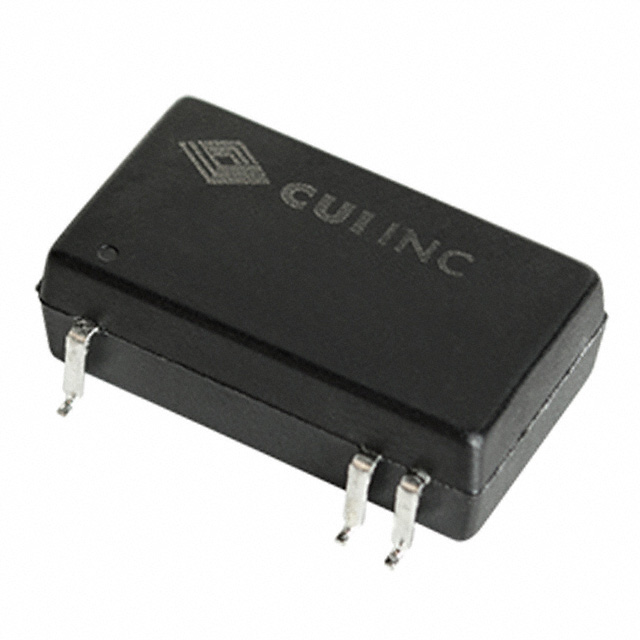

PQM3-D24 Series
Manufacturer: CUI Inc.
Beta
⌘K
DC DC CONVERTER 12V 3W
| Part | Current - Output (Max) [Max] | Applications | Voltage - Input (Min) [Min] | Number of Outputs | Type | Features | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Input (Max) [Max] | Standard Number | Mounting Type | Power (Watts) | Voltage - Isolation | Package / Case | Voltage - Output 1 | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 250 mA | ITE (Commercial) | 18 V | 1 | Isolated Module | SCP | 105 C | -40 °C | EN | 0.94 in | 0.31 " | 0.54 in | 8 mm | 13.7 mm | 23.9 mm | 36 V | 55024 55032 | Surface Mount | 3 W | 1.5 kV | 16-SMD Module 6 Leads | 12 V | 81 % |
CUI Inc. | 600 mA | ITE (Commercial) | 18 V | 1 | Isolated Module | SCP | 105 C | -40 °C | EN | 0.94 in | 0.31 " | 0.54 in | 8 mm | 13.7 mm | 23.9 mm | 36 V | 55024 55032 | Surface Mount | 3 W | 1.5 kV | 16-SMD Module 6 Leads | 5 V | 77 % |
