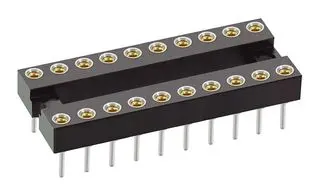

D2820 Series
Manufacturer: Harwin Inc.
Beta
⌘K
DIP SOCKET, 20POS, 2.54MM ROHS COMPLIANT: YES
| Part | Current Rating (Amps) | Termination Post Length [x] | Termination Post Length [x] | Material Flammability Rating | Contact Resistance | Contact Material - Mating | Features | Pitch - Post | Pitch - Post | Mounting Type | Type | Type | Type | Contact Finish - Post | Termination | Contact Material - Post [custom] | Housing Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions or Pins (Grid) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 1 A | 3.2 mm | 0.126 in | UL94 V-0 | 10 mOhm | Beryllium Copper | Open Frame | 0.1 in | 2.54 mm | Through Hole | 7.62 mm | 0.3 in | DIP | Tin | Solder | Brass | Plastic | Flash | 5 µm | 196.9 µin | 0.1 " | 2.54 mm | Gold | -55 C | 125 °C | 20 |
