WLC90WL Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K

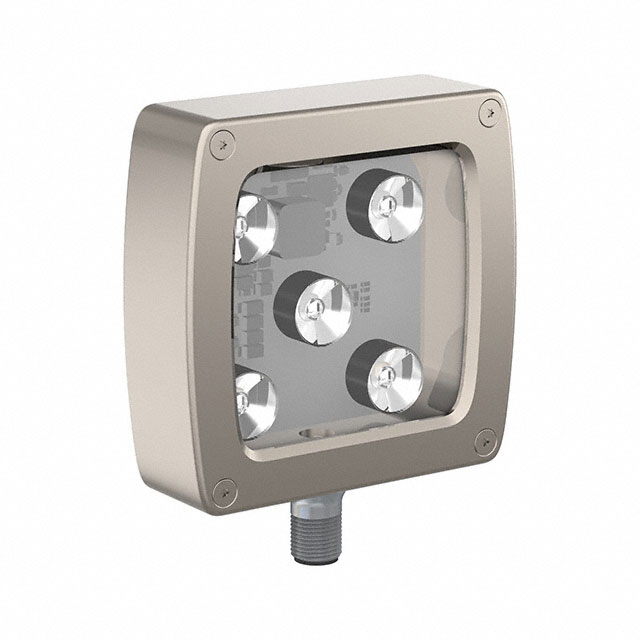

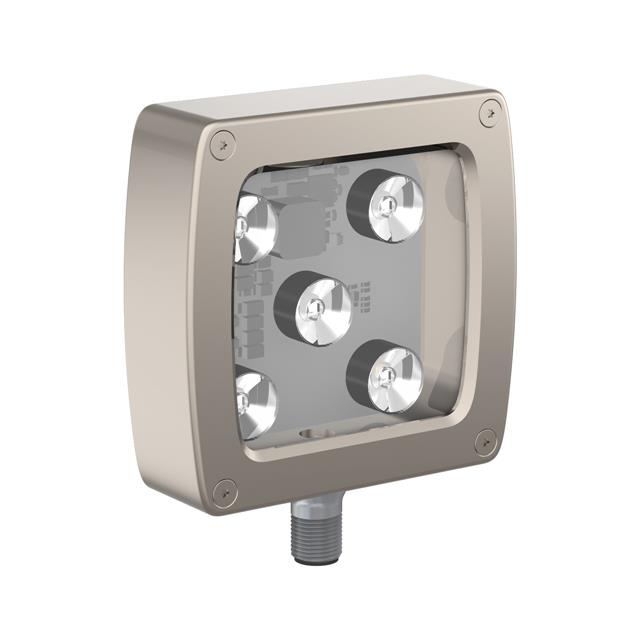

WLC90 WORK LIGHT; DIMENSIONS: 90
| Part | Profile (W x H) [x] | Profile (W x H) [y] | Profile (W x H) [y] | Profile (W x H) [x] | Termination Style | Illumination Color | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Housing Material | Ingress Protection | Length [x] | Length [x] | Luminous Flux | Lens Type | Voltage - Supply [Min] | Voltage - Supply [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANNER ENGINEERING | 3.58 in | 1.11 in | 28.2 mm | 91 mm | Connector (M12) | Cool White | 70 °C | -40 C | CE cULus | Aluminum (Al) Nickel Plated | IP67 IP68G IP69K | 3.5 in | 89 mm | 700 lm | Clear Flat | 12 VDC | 30 VDC |
 BANNER ENGINEERING | 3.58 in | 1.11 in | 28.2 mm | 91 mm | Connector (M12) | Cool White | 70 °C | -40 C | CE cULus | Aluminum (Al) Nickel Plated | IP67 IP68G IP69K | 3.5 in | 89 mm | 700 lm | Clear Flat | 12 VDC | 30 VDC |
