MS1238 Series

Catalog

FAN AXIAL 120X38MM 48VDC WIRE

Part	Material - Frame	Material - Blade	Current Rating (Amps)	Voltage - Rated	Ingress Protection	Fan Type	Noise	Width [y]	RPM	Air Flow	Air Flow	Features	Termination	Size / Dimension [z]	Size / Dimension [x]	Weight [custom]	Weight [custom]	Bearing Type	Static Pressure	Static Pressure
Mechatronics Fan Group MS1238E48B1-FHR-2EM	Plastic	Plastic	0.85 A	48 VDC	IP68 - Dust Tight Waterproof	Tubeaxial	68 dB	38 mm	5000 RPM	7.59 m³/min	271.1 CFM	Auto Restart Speed Sensor (Tach)	3 Wire Leads	120 mm	120 mm	302.55 g	0.667 lb	Ball
Mechatronics Fan Group MS1238H12B-FHR	Plastic	Plastic	1.85 A	12 VDC		Tubeaxial	56 dB	38 mm	4000 RPM	5.69 mł/min	203.3 CFM	Auto Restart	2 Wire Leads	120 mm	120 mm	302.55 g	0.667 lb	Ball	147 Pa	0.59 in H2O
Mechatronics Fan Group MS1238E48B1+6-FHR	Plastic	Plastic	0.85 A	48 VDC		Tubeaxial	68 dB	38 mm	5000 RPM	7.59 m³/min	271.1 CFM	Auto Restart PWM Control Speed Sensor (Tach)	4 Wire Leads	120 mm	120 mm	302.55 g	0.667 lb	Ball
Mechatronics Fan Group MS1238M48B1+6-FHR-2EM	Plastic	Plastic	0.18 A	48 VDC	IP68 - Dust Tight Waterproof	Tubeaxial	46 dB(A)	38 mm	2500 RPM	3.5 mł/min	125 CFM	Auto Restart PWM Control Speed Sensor (Tach)	4 Wire Leads	120 mm	120 mm	302.55 g	0.667 lb	Ball	59.8 Pa	0.24 in H2O
Mechatronics Fan Group MS1238H24B1+6-FHR	Plastic	Plastic	910 mA	24 VDC		Tubeaxial	56 dB	38 mm	4000 RPM	5.69 mł/min	203.3 CFM	Auto Restart PWM Control Speed Sensor (Tach)	4 Wire Leads	120 mm	120 mm	302.55 g	0.667 lb	Ball	147 Pa	0.59 in H2O
Mechatronics Fan Group MS1238H24B1-FHR-2EM	Plastic	Plastic	910 mA	24 VDC	IP68 - Dust Tight Waterproof	Tubeaxial	56 dB	38 mm	4000 RPM	5.69 mł/min	203.3 CFM	Auto Restart Speed Sensor (Tach)	3 Wire Leads	120 mm	120 mm	302.55 g	0.667 lb	Ball	147 Pa	0.59 in H2O

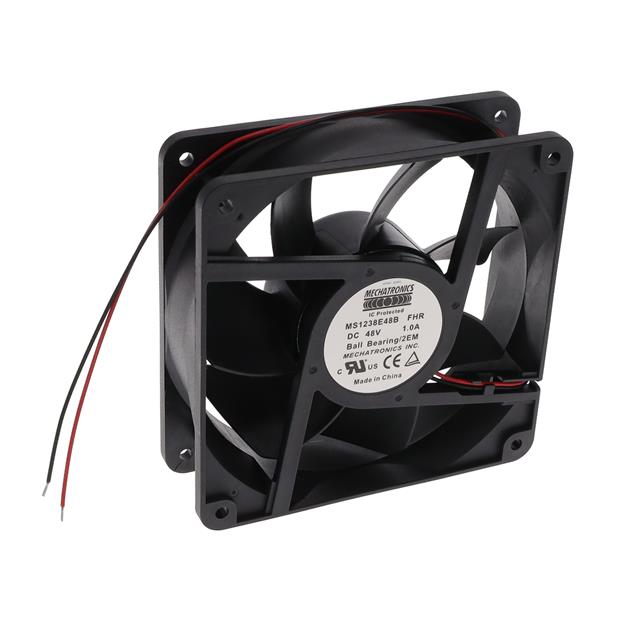

Mechatronics Fan Group MS1238E48B-FHR-2EM	Plastic	Plastic	0.85 A	48 VDC	IP68 - Dust Tight Waterproof	Tubeaxial	68 dB	38 mm	5000 RPM	7.59 m³/min	271.1 CFM	Auto Restart	2 Wire Leads	120 mm	120 mm	302.55 g	0.667 lb	Ball
Mechatronics Fan Group MS1238M48B-FHR	Plastic	Plastic	0.18 A	48 VDC		Tubeaxial	46 dB(A)	38 mm	2500 RPM	3.5 mł/min	125 CFM	Auto Restart	2 Wire Leads	120 mm	120 mm	302.55 g	0.667 lb	Ball	59.8 Pa	0.24 in H2O
Mechatronics Fan Group MS1238M24B1+6-FHR-2EM	Plastic	Plastic	0.35 A	24 VDC	IP68 - Dust Tight Waterproof	Tubeaxial	46 dB(A)	38 mm	2500 RPM	3.5 mł/min	125 CFM	Auto Restart PWM Control Speed Sensor (Tach)	4 Wire Leads	120 mm	120 mm	302.55 g	0.667 lb	Ball	59.8 Pa	0.24 in H2O
Mechatronics Fan Group MS1238M12B1+6-FHR-2EM	Plastic	Plastic	0.72 A	12 VDC	IP68 - Dust Tight Waterproof	Tubeaxial	46 dB(A)	38 mm	2500 RPM	3.5 mł/min	125 CFM	Auto Restart PWM Control Speed Sensor (Tach)	4 Wire Leads	120 mm	120 mm	302.55 g	0.667 lb	Ball	59.8 Pa	0.24 in H2O
