10TQ Series

Catalog

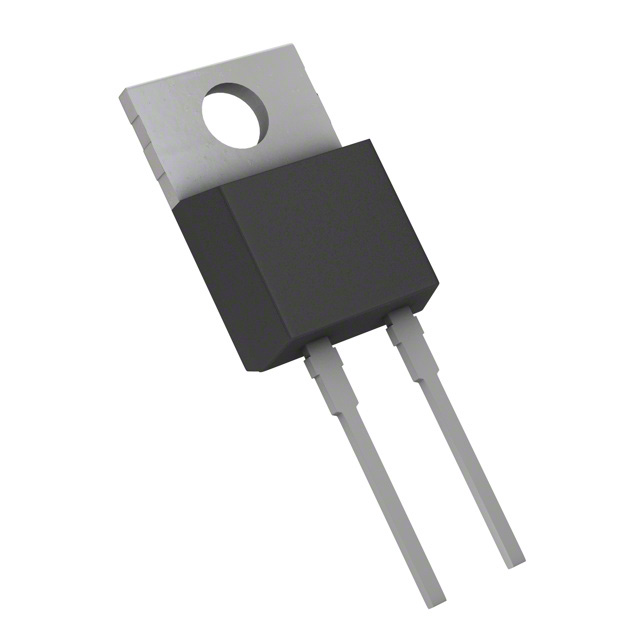

DIODE SCHOTTKY 40V 10A TO220AC

Part	Current - Average Rectified (Io)	Package / Case	Speed - Fast Recovery (Maximum)	Speed - Fast Recovery (Minimum)	Mounting Type	Package Name	Voltage - DC Reverse (Vr) (Max)	Current - Reverse Leakage	Capacitance	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Technology	Voltage - Forward (Vf) (Max)
SMC Diode Solutions 10TQ040	10 A	TO-220-2	500 ns	200 mA	Through Hole	TO-220AC	40 V	2 mA	900 pF	175 °C	-55 °C	Schottky	570 mV
SMC Diode Solutions 10TQ035	10 A	TO-220-2	500 ns	200 mA	Through Hole	TO-220AC	35 V	2 mA	750 pF	175 °C	-55 °C	Schottky	570 mV
SMC Diode Solutions 10TQ035S	10 A	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	500 ns	200 mA	Surface Mount	D2PAK	35 V	2 mA	750 pF	175 °C	-55 °C	Schottky	570 mV
SMC Diode Solutions 10TQ045S	10 A	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	500 ns	200 mA	Surface Mount	D2PAK	45 V	2 mA	900 pF	175 °C	-55 °C	Schottky	570 mV
SMC Diode Solutions 10TQ045	10 A	TO-220-2	500 ns	200 mA	Through Hole	TO-220AC	45 V	2 mA	900 pF	175 °C	-55 °C	Schottky	570 mV
