PKG.2B Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 12P SOLDER CUP

Part	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Ingress Protection	Connector Type	Number of Positions	Material Flammability Rating	Orientation [custom]	Primary Material	Mounting Feature	Mounting Type	Shell Finish	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shielding	Current Rating (Amps)	Shell Material	Shell Size - Insert	Contact Finish - Mating	Fastening Type	Backshell Material, Plating	Color	Insert Material	Features	Termination	Cable Opening [Min]	Cable Opening [Max]	Number of Positions [custom]	Number of Positions [custom]	Contact Size	Contact Type	Type	Note	Contact Shape	Housing Color
LEMO PKG.2B.312.CLLD82	-55 C	250 °C	7.2 mm	0.283 "	8.2 mm	0.323 "	IP50 - Dust Protected	Receptacle Female Sockets	12	UL94 V-0	G	Metal	Bulkhead - Rear Side Nut	Free Hanging (In-Line) Panel Mount	Chrome	Bronze	1.5 Ám	59 Áin	Shielded	7 A	Brass	312	Gold	Push-Pull	Brass Chrome	Silver	Polyetheretherketone (PEEK)	Backshell
LEMO PKG.2B.304.CLLD82	-55 C	250 °C	7.2 mm	0.283 "	8.2 mm	0.323 "	IP50 - Dust Protected	Receptacle Female Sockets	4	UL94 V-0	G	Metal	Bulkhead - Rear Side Nut	Free Hanging (In-Line) Panel Mount	Chrome	Bronze	1.5 Ám	59 Áin	Shielded	15 A	Brass	304	Gold	Push-Pull	Brass Chrome	Silver	Polyetheretherketone (PEEK)	Backshell
LEMO PKG.2B.304.CYMD82	-55 C	250 °C	7.2 mm	0.283 "	8.2 mm	0.323 "	IP50 - Dust Protected	Receptacle Female Sockets	4	UL94 V-0	G	Metal	Bulkhead - Rear Side Nut	Free Hanging (In-Line) Panel Mount	Chrome	Bronze	1.5 Ám	59 Áin	Shielded	15 A	Brass	304	Gold	Push-Pull	Brass Chrome	Silver	Polyetheretherketone (PEEK)	Backshell	Crimp
LEMO PKG.2B.303.CLLD72	-55 C	250 °C	6.2 mm		7.2 mm		IP50 - Dust Protected	Receptacle Female Sockets		UL94 V-0	G	Metal	Bulkhead - Rear Side Nut	Free Hanging (In-Line) Panel Mount	Chrome	Bronze	1.5 Ám	59 Áin	Shielded	17 A	Brass	303	Gold	Push-Pull	Brass Chrome	Silver	Polyetheretherketone (PEEK)	Backshell		0.244 in	0.283 in
LEMO PKG.2B.810.CLLD72Z	-55 C	250 °C	6.2 mm		7.2 mm		IP50 - Dust Protected	Receptacle Female Sockets		UL94 V-0	G	Metal	Bulkhead - Rear Side Nut	Free Hanging (In-Line) Panel Mount	Chrome	Bronze	1.5 Ám	59 Áin	Shielded	7 A	Brass	810	Gold	Push-Pull	Brass Chrome	Silver	Polyetheretherketone (PEEK)	Backshell		0.244 in	0.283 in	1	10

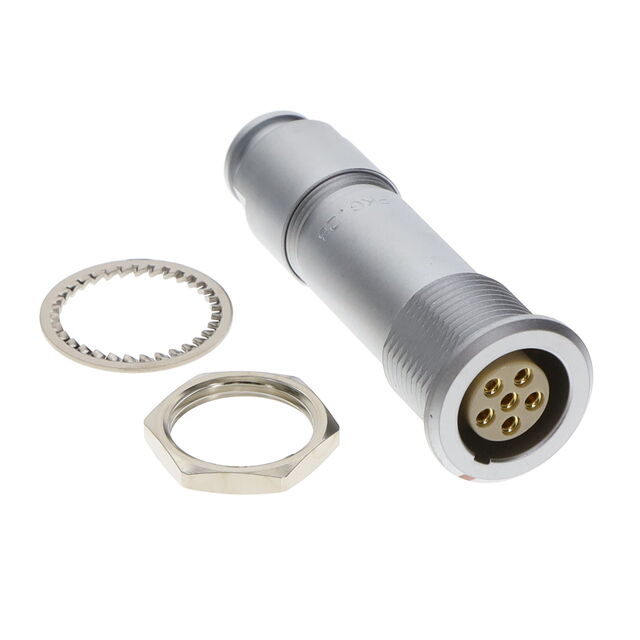

LEMO PKG.2B.306.CLLD82Z	-55 C	250 °C	7.2 mm	0.283 "	8.2 mm	0.323 "	IP50 - Dust Protected	Receptacle Female Sockets	6	UL94 V-0	G	Metal	Bulkhead - Rear Side Nut	Free Hanging (In-Line) Panel Mount	Chrome	Bronze	1.5 Ám	59 Áin	Shielded	12 Amps	Brass	306	Gold	Push-Pull	Brass Chrome	Silver	Polyetheretherketone (PEEK)	Backshell
LEMO PKG.2B.304.CLZZ	-55 C	250 °C					IP50 - Dust Protected	Receptacle Housing	4		G		Bulkhead - Rear Side Nut	Free Hanging (In-Line) Panel Mount	Chrome				Shielded		Brass	304		Detent Lock Push-Pull			Polyetheretherketone (PEEK)	Backshell						1.3 mm	Solder Cup	For Female Sockets	Contacts Not Included	Circular	Silver
LEMO PKG.2B.310.CLLD72	-55 C	250 °C	6.2 mm		7.2 mm		IP50 - Dust Protected	Receptacle Female Sockets	10	UL94 V-0	G	Metal	Bulkhead - Rear Side Nut	Free Hanging (In-Line) Panel Mount	Chrome	Bronze	1.5 Ám	59 Áin	Shielded	8 A	Brass	310	Gold	Push-Pull	Brass Chrome	Silver	Polyetheretherketone (PEEK)	Backshell		0.244 in	0.283 in
LEMO PKG.2B.306.CLLD62	-55 C	250 °C	5.2 mm	0.205 in	6.2 mm	0.244 "	IP50 - Dust Protected	Receptacle Female Sockets	6	UL94 V-0	G	Metal	Bulkhead - Rear Side Nut	Free Hanging (In-Line) Panel Mount	Chrome	Bronze	1.5 Ám	59 Áin	Shielded	12 Amps	Brass	306	Gold	Push-Pull	Brass Chrome	Silver	Polyetheretherketone (PEEK)	Backshell
LEMO PKG.2B.304.CLLD92	-55 C	250 °C	8.2 mm	0.323 in	9.2 mm	0.362 in	IP50 - Dust Protected	Receptacle Female Sockets	4	UL94 V-0	G	Metal	Bulkhead - Rear Side Nut	Free Hanging (In-Line) Panel Mount	Chrome	Bronze	1.5 Ám	59 Áin	Shielded	15 A	Brass	304	Gold	Push-Pull	Brass Chrome	Silver	Polyetheretherketone (PEEK)	Backshell
