6187R Series
Manufacturer: TT Electronics/BI
Beta
⌘K

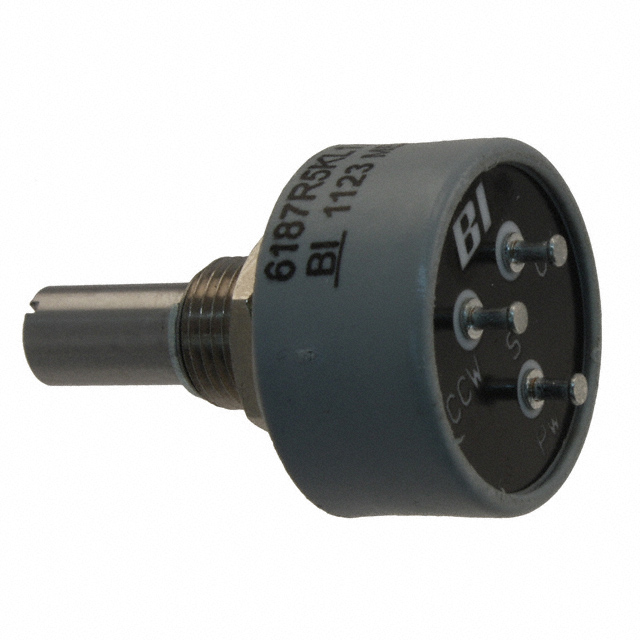

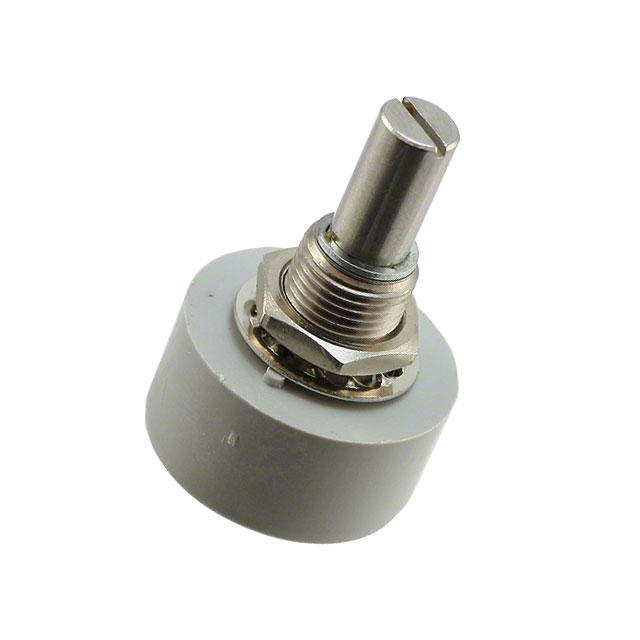

POT 10K OHM 1W PLASTIC LINEAR
| Part | Size - Body [diameter] | Size - Body [diameter] | Termination Style | Temperature Coefficient | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Adjustment Type | Resistance (Ohms) | Mounting Type | Rotation | Bushing Thread | Tolerance | Power (Watts) | Resistive Material | Actuator Type | Built in Switch | Taper | Actuator Length [x] | Actuator Length [x] | Number of Gangs | Number of Turns | Resistance (Ohms) | Resistance (Ohms) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TT Electronics/BI | 22.2 mm | 0.874 " | Solder Turret | -400 ppm/°C | 6.32 mm | 0.249 in | User Defined | 10k | Panel Mount | Continuous | 3/8-32 | 10 % | 1 W | Conductive Plastic | Slotted | None | Linear | 0.874 in | 22.2 mm | 1 | 1 | ||
TT Electronics/BI | 22.2 mm | 0.874 " | Solder Turret | -400 ppm/°C | 6.35 mm | 0.25 in | User Defined | Panel Mount | Continuous | 3/8-32 | 10 % | 1 W | Conductive Plastic | Slotted | None | Linear | 0.874 in | 22.2 mm | 1 | 1 | 20 kOhms | ||
TT Electronics/BI | 22.2 mm | 0.874 " | Solder Turret | -400 ppm/°C | 6.32 mm | 0.249 in | User Defined | Panel Mount | Continuous | 3/8-32 | 10 % | 1 W | Conductive Plastic | Slotted | None | Linear | 0.874 in | 22.2 mm | 1 | 1 | 5 kOhms | ||
 TT Electronics/BI | 22.2 mm | 0.874 " | Solder Turret | -400 ppm/°C | 6.32 mm | 0.249 in | User Defined | Panel Mount | Continuous | 3/8-32 | 10 % | 1 W | Conductive Plastic | Slotted | None | Linear | 0.874 in | 22.2 mm | 1 | 1 | 5 kOhms | ||
TT Electronics/BI | 22.2 mm | 0.874 " | Solder Turret | -400 ppm/°C | 6.35 mm | 0.25 in | User Defined | Panel Mount | Continuous | 3/8-32 | 10 % | 1 W | Conductive Plastic | Slotted | None | Linear | 0.874 in | 22.2 mm | 1 | 1 | 50 kOhms |
