0466-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Type	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Termination	Socket Depth	Socket Depth	Length - Overall [x]	Length - Overall [x]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish
Mill-Max Manufacturing Corp. 0466-0-15-15-21-14-04-0	-55 C	125 °C	0.25 Ám	10 Áin	0.46 mm	0.018 in	Beryllium Copper	0.043 in	1.09 mm	Standard Tail	0.38 mm	0.022 in	0.015 "	0.56 mm	Press-Fit	3.43 mm	0.135 in	0.37 in	9.4 mm	0.031 in	0.79 mm	1.4 mm	0.055 in	Gold
Mill-Max Manufacturing Corp. 0466-0-15-80-21-27-04-0	-55 C	125 °C	0.76 Ám	30 Áin	0.46 mm	0.018 in	Beryllium Copper	0.043 in	1.09 mm	Standard Tail	0.38 mm	0.022 in	0.015 "	0.56 mm	Press-Fit	3.43 mm	0.135 in	0.37 in	9.4 mm	0.031 in	0.79 mm	1.4 mm	0.055 in	Gold
Mill-Max Manufacturing Corp. 0466-0-15-80-21-84-04-0	-55 C	125 °C	2.54 µm	100 µin	0.46 mm	0.018 in	Beryllium Copper	0.043 in	1.09 mm	Standard Tail	0.38 mm	0.022 in	0.015 "	0.56 mm	Press-Fit	3.43 mm	0.135 in	0.37 in	9.4 mm	0.031 in	0.79 mm	1.4 mm	0.055 in	Tin
Mill-Max Manufacturing Corp. 0466-0-15-80-21-14-04-0	-55 C	125 °C	0.25 Ám	10 Áin	0.46 mm	0.018 in	Beryllium Copper	0.043 in	1.09 mm	Standard Tail	0.38 mm	0.022 in	0.015 "	0.56 mm	Press-Fit	3.43 mm	0.135 in	0.37 in	9.4 mm	0.031 in	0.79 mm	1.4 mm	0.055 in	Gold

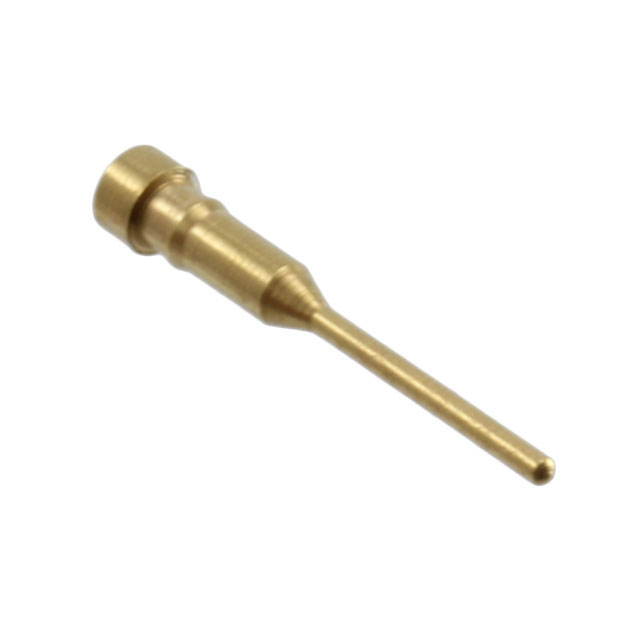

Mill-Max Manufacturing Corp. 0466-0-15-15-21-27-04-0	-55 C	125 °C	0.76 Ám	30 Áin	0.46 mm	0.018 in	Beryllium Copper	0.043 in	1.09 mm	Standard Tail	0.38 mm	0.022 in	0.015 "	0.56 mm	Press-Fit	3.43 mm	0.135 in	0.37 in	9.4 mm	0.031 in	0.79 mm	1.4 mm	0.055 in	Gold
Mill-Max Manufacturing Corp. 0466-0-15-01-21-02-04-0	-55 C	125 °C	2.54 µm	100 µin	0.46 mm	0.018 in	Beryllium Copper	0.043 in	1.09 mm	Standard Tail	0.38 mm	0.022 in	0.015 "	0.56 mm	Press-Fit	3.43 mm	0.135 in	0.37 in	9.4 mm	0.031 in	0.79 mm	1.4 mm	0.055 in	Tin-Lead
