0294-0 Series

Catalog

CONN PIN RCPT .022-.032 SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Length - Overall [x]	Length - Overall [x]	Contact Material	Tail Type	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Socket Depth	Socket Depth	Contact Finish	Contact Finish Thickness	Contact Finish Thickness

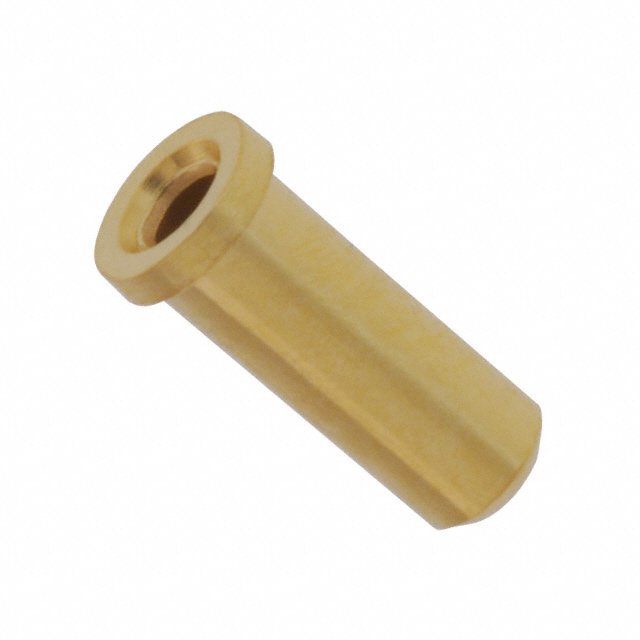

Mill-Max Manufacturing Corp. 0294-0-15-15-06-27-10-0	-55 C	125 °C	Solder	5.23 mm	0.206 in	Beryllium Copper	No Tail	0.051 in	1.3 mm	1.93 mm	0.076 in	0.09 in	2.29 mm	4.7 mm	0.185 in	Gold	30 Áin	0.76 Ám

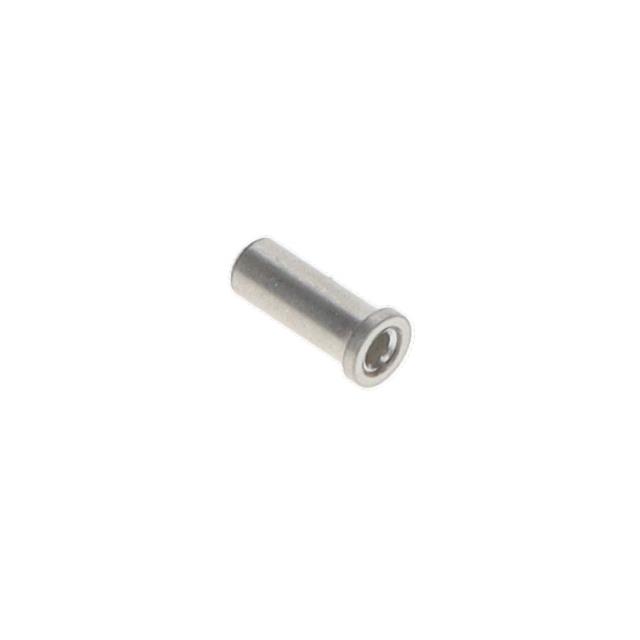

Mill-Max Manufacturing Corp. 0294-0-15-80-06-80-10-0	-55 C	125 °C	Solder	5.23 mm	0.206 in	Beryllium Copper	No Tail	0.051 in	1.3 mm	1.93 mm	0.076 in	0.09 in	2.29 mm	4.7 mm	0.185 in	Tin	200 Áin	5.08 Ám

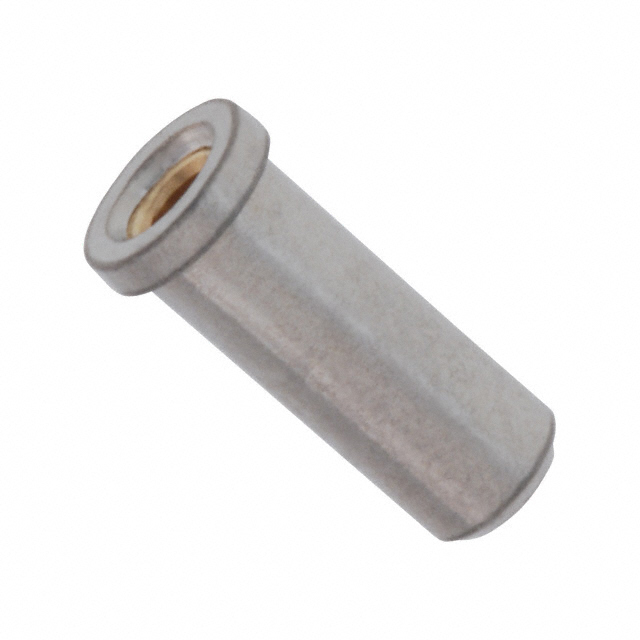

Mill-Max Manufacturing Corp. 0294-0-15-01-06-27-10-0	-55 C	125 °C	Solder	5.23 mm	0.206 in	Beryllium Copper	No Tail	0.051 in	1.3 mm	1.93 mm	0.076 in	0.09 in	2.29 mm	4.7 mm	0.185 in	Gold	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 0294-0-15-80-06-14-10-0	-55 C	125 °C	Solder	5.23 mm	0.206 in	Beryllium Copper	No Tail	0.051 in	1.3 mm	1.93 mm	0.076 in	0.09 in	2.29 mm	4.7 mm	0.185 in	Gold	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 0294-0-15-80-06-27-10-0	-55 C	125 °C	Solder	5.23 mm	0.206 in	Beryllium Copper	No Tail	0.051 in	1.3 mm	1.93 mm	0.076 in	0.09 in	2.29 mm	4.7 mm	0.185 in	Gold	30 Áin	0.76 Ám

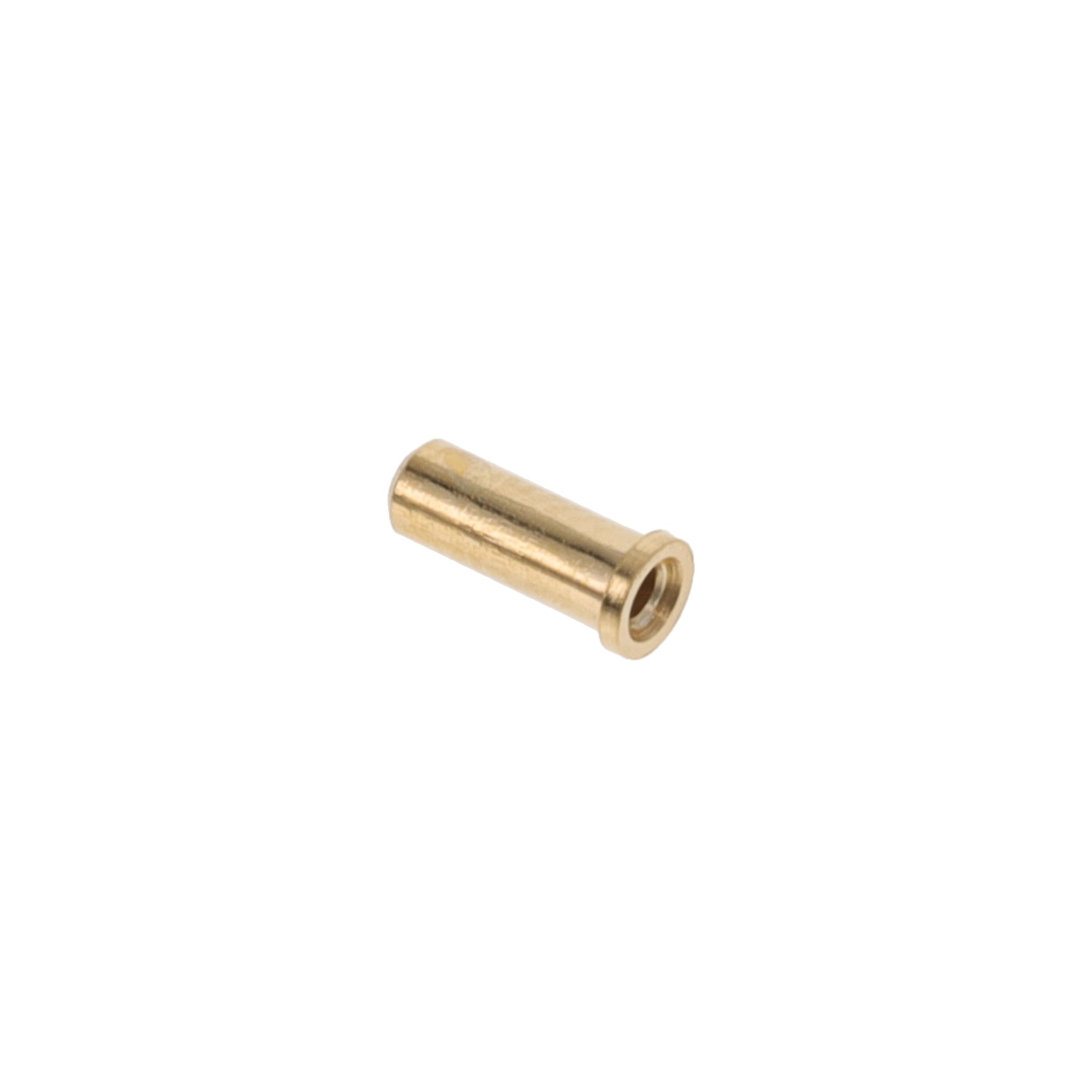

Mill-Max Manufacturing Corp. 0294-0-15-15-06-14-10-0	-55 C	125 °C	Solder	5.23 mm	0.206 in	Beryllium Copper	No Tail	0.051 in	1.3 mm	1.93 mm	0.076 in	0.09 in	2.29 mm	4.7 mm	0.185 in	Gold	10 Áin	0.25 Ám
