34155 Series

Catalog

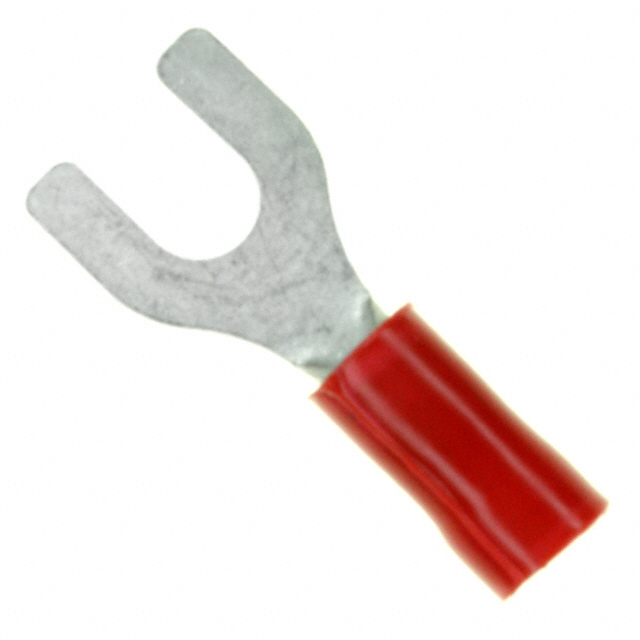

CONN SPADE TERM 16-22AWG #8 RED

Part	Stud/Tab Size	Color	Termination	Length - Overall [x]	Length - Overall [x]	Mounting Type	Contact Material	Wire Gauge [Max]	Wire Gauge [Min]	Length - Ring Center to Termination	Length - Ring Center to Termination [x]	Material - Insulation	Length - Termination	Length - Termination	Insulation	Features	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Terminal Type	Width - Outer Edges [x]	Width - Outer Edges [x]	Tongue Inside Opening [x]	Tongue Inside Opening [x]
TE Connectivity Raychem Cable Protection 8-34155-1	8 Stud	Red	Crimp	23.37 mm	0.92 "	Free Hanging (In-Line)	Copper	22 AWG	16 AWG	7.92 mm	0.312 in	Poly-Vinyl Chloride (PVC)	10.57 mm	0.416 in	Insulated	Serrated Termination	0.14 in	0.105 in	3.56 mm	2.67 mm	Standard	0.375 in	9.53 mm	0.171 in	4.34 mm
