LM2651 Series
Manufacturer: Texas Instruments
Beta
⌘K
IC REG BUCK 2.5V 1.5A 16TSSOP
| Part | Voltage - Input (Min) [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Topology | Synchronous Rectifier | Package / Case [x] | Package / Case | Package / Case [y] | Mounting Type | Frequency - Switching | Function | Number of Outputs | Output Configuration | Voltage - Output (Min/Fixed) | Supplier Device Package | Current - Output | Output Type | Voltage - Input (Max) [Max] | Voltage - Output (Max) [Max] | Output Type | Regulator Topology | Board Type | Utilized IC / Part | Outputs and Type | Outputs and Type | Voltage - Output | Supplied Contents | Main Purpose |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 4 V | -40 °C | 125 ¯C | Buck | 0.173 in | 16-TSSOP | 4.4 mm | Surface Mount | 300 kHz | Step-Down | 1 | Positive | 2.5 V | 16-TSSOP | 1.5 A | 1.81 mOhm | 14 V | |||||||||||
 Texas Instruments | 4 V | -40 °C | 125 ¯C | Buck | 0.173 in | 16-TSSOP | 4.4 mm | Surface Mount | 300 kHz | Step-Down | 1 | Positive | 1.238 V | 16-TSSOP | 1.5 A | 14 V | 13 V | Adjustable | ||||||||||
Texas Instruments | 4 V | -40 °C | 125 ¯C | Buck | 0.173 in | 16-TSSOP | 4.4 mm | Surface Mount | 300 kHz | Step-Down | 1 | Positive | 1.238 V | 16-TSSOP | 1.5 A | 14 V | 13 V | Adjustable | ||||||||||
Texas Instruments | 4 V | -40 °C | 125 ¯C | Buck | 0.173 in | 16-TSSOP | 4.4 mm | Surface Mount | 300 kHz | Step-Down | 1 | Positive | 1.8 V | 16-TSSOP | 1.5 A | 1.81 mOhm | 14 V | |||||||||||

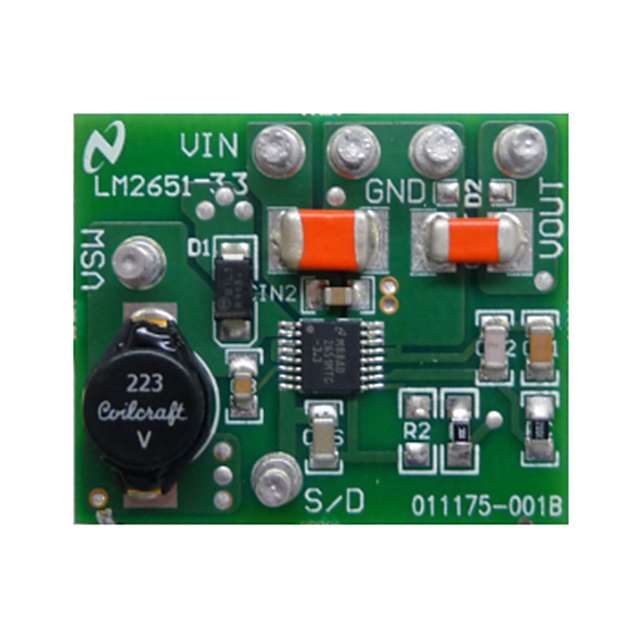

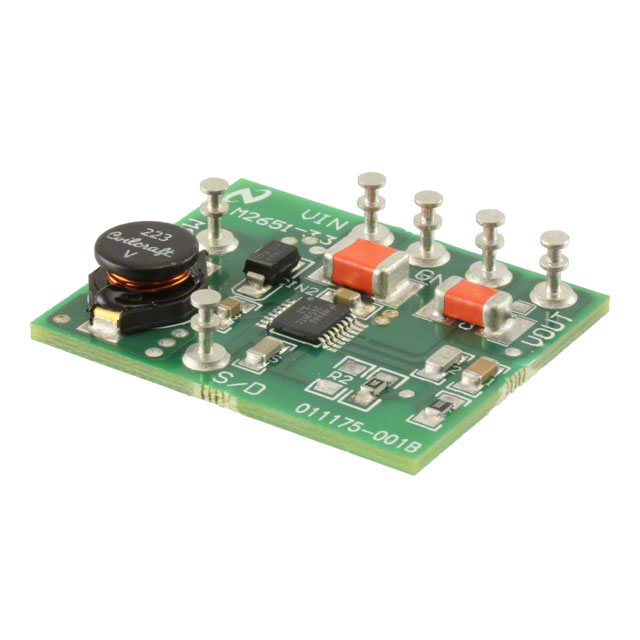

 Texas Instruments | 300 kHz | 1.5 A | Buck | Fully Populated | LM2651 | Non-Isolated | 1 | 3.3 V | Board(s) | DC/DC Step Down | ||||||||||||||||||
Texas Instruments | 4 V | -40 °C | 125 ¯C | Buck | 0.173 in | 16-TSSOP | 4.4 mm | Surface Mount | 300 kHz | Step-Down | 1 | Positive | 2.5 V | 16-TSSOP | 1.5 A | 1.81 mOhm | 14 V | |||||||||||
Texas Instruments | 4 V | -40 °C | 125 ¯C | Buck | 0.173 in | 16-TSSOP | 4.4 mm | Surface Mount | 300 kHz | Step-Down | 1 | Positive | 1.238 V | 16-TSSOP | 1.5 A | 14 V | 13 V | Adjustable | ||||||||||
Texas Instruments | 4 V | -40 °C | 125 ¯C | Buck | 0.173 in | 16-TSSOP | 4.4 mm | Surface Mount | 300 kHz | Step-Down | 1 | Positive | 3.3 V | 16-TSSOP | 1.5 A | 1.81 mOhm | 14 V | |||||||||||
 Texas Instruments | 300 kHz | 1.5 A | Buck | Fully Populated | LM2651 | Non-Isolated | 1 | 3.3 V | Board(s) | DC/DC Step Down | ||||||||||||||||||
Texas Instruments | 4 V | -40 °C | 125 ¯C | Buck | 0.173 in | 16-TSSOP | 4.4 mm | Surface Mount | 300 kHz | Step-Down | 1 | Positive | 1.8 V | 16-TSSOP | 1.5 A | 1.81 mOhm | 14 V |
