PFB Series

Catalog

DC FANS TUBEAXIAL FAN, 120X38MM, 48VDC, BALL, 4-LEAD WIRES, LOCK ROTOR SENSOR, TACH, PWM

Part	Material - Frame	Material - Blade	Lifetime @ Temp.	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Weight	Weight	Air Flow	Air Flow	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Fan Type	Static Pressure	Static Pressure	Approval Agency	Width [y]	Termination	RPM	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Features	Ingress Protection	Noise	Weight [custom]	Weight [custom]	Width [x]	Size / Dimension [y]

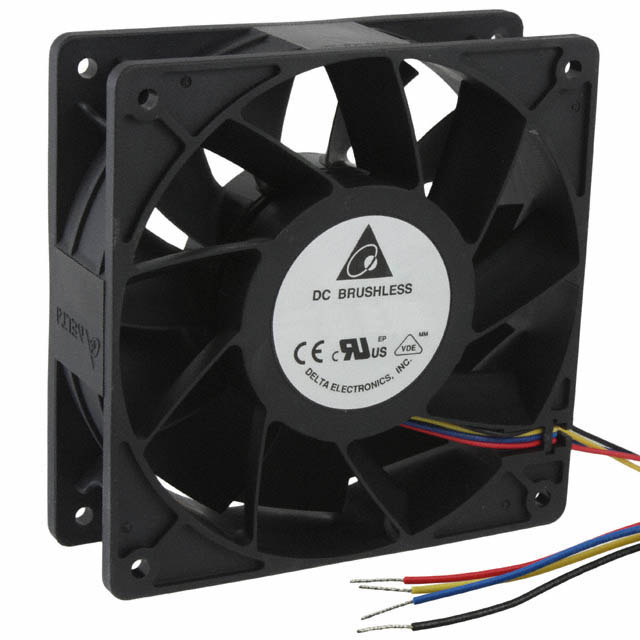

Delta Electronics PFB1248UHE-TP38	Plastic	Plastic	40000 Hrs	1.1 A	38 VDC	60 V	Ball	0.838 lb	380.11 g	7.51 m³/min	268.3 CFM	48 VDC	70 °C	-10 °C	Tubeaxial	1.262 in H2O	314.4 Pa	CE CSA UL VDE	38 mm	4 Wire Leads	6000 RPM	48 W	120 mm	120 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)
Delta Electronics PFB0812DHE-TYNT							Ball	0.452 lb	205.02 g	3.71 mł/min	132.6 CFM	12 VDC	60 °C	-10 °C	Tubeaxial	2.03 in H2O	505.7 Pa	CE cURus VDE	38 mm	4 Wire Leads	9000 RPM	33 W	80 mm	80 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	IP55 - Dust Protected Water Resistant	65 dB
Delta Electronics PFB0824UHE	Plastic	Plastic	40 °C 50000 Hrs	770 mA	14 VDC	26.4 VDC	Ball	0.441 lb	200.03 g	3 m³/min	107.3 CFM	24 VDC	60 °C	-10 °C	Tubeaxial	1.368 in H2O	340.8 Pa	CE CSA UL VDE	38 mm	2 Wire Leads	7500 RPM	18.48 W	80 mm	80 mm			61 dB(A)

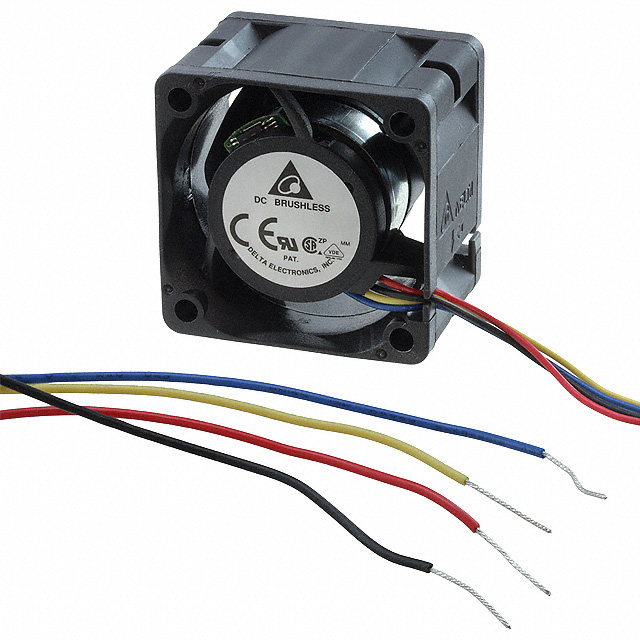

Delta Electronics PFB0412EHN-TP06	Plastic	Plastic	40 °C 50000 Hrs	0.5 A	10.8 VDC	13.2 VDC	Ball			0.61 mł/min	21.8 CFM	12 VDC	70 °C	-10 °C	Tubeaxial	1.431 in H2O	356.5 Pa	CE CSA UL VDE		4 Wire Leads	16000 RPM	6 W	40 mm	40 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)		54.5 dB	47.17 g	0.104 lb	28 mm
Delta Electronics PFB0924DHE-R00	Plastic	Plastic	40 °C 50000 Hrs	1.45 A	14 VDC	26.4 VDC	Ball	0.553 lb	250.84 g	4.9 mł/min	175 CFM	24 VDC	60 °C	-10 °C	Tubeaxial	1.819 in H2O	453.1 Pa	CE CSA UL VDE	38 mm	3 Wire Leads	8000 RPM	34.8 W		92 mm	Locked Rotor Sensor		66.5 dB(A)				92 mm
Delta Electronics PFB0812UHE-F00	Plastic	Plastic	40 °C 50000 Hrs	1.55 A	7 V	13.2 VDC	Ball	0.441 lb	200.03 g	3 m³/min	107.3 CFM	12 VDC	60 °C	-10 °C	Tubeaxial	1.368 in H2O	340.8 Pa	CE CSA UL VDE	38 mm	3 Wire Leads	7500 RPM	18.6 W	80 mm	80 mm	Locked Rotor Protection Speed Sensor (Tach)		61 dB(A)
Delta Electronics PFB0912EHE-T500	Plastic	Plastic	70000 Hrs	0.68 A	7 V	13.2 VDC	Ball	0.553 lb	250.84 g	2.9 m³/min	103.7 CFM	12 VDC	60 °C	-10 °C	Tubeaxial	0.691 in H2O	172.1 Pa	CE CSA UL VDE	38 mm	2 Wire Leads	4800 RPM	8.16 W		92 mm		IP55 - Dust Protected Water Resistant	54 dB				92 mm
Delta Electronics PFB0624SHE-F00							Ball	0.287 lb	130.18 g	1.22 m³/min	43.6 CFM	24 VDC	60 °C	-10 °C	Tubeaxial	0.918 in H2O	228.7 Pa	CE CSA UL VDE	38 mm	3 Wire Leads	8000 RPM	6.72 W	60 mm	60 mm	Locked Rotor Protection Speed Sensor (Tach)		50.5 dB(A)
Delta Electronics PFB0612EHE							Ball	0.287 lb	130.18 g	1.41 mł/min	50.4 CFM	12 VDC	60 °C	-10 °C	Tubeaxial	1.203 in H2O	299.7 Pa	CE CSA UL VDE	38 mm	2 Wire Leads	9000 RPM	7.56 W	60 mm	60 mm			54 dB
Delta Electronics PFB0812SHE							Ball	0.441 lb	200.03 g	1.95 m³/min	69.5 CFM	12 VDC	60 °C	-10 °C	Tubeaxial	0.571 in H2O	142.2 Pa	CE CSA UL VDE	38 mm	2 Wire Leads	4900 RPM	6.12 W	80 mm	80 mm			49.3 dB(A)
