1744319 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

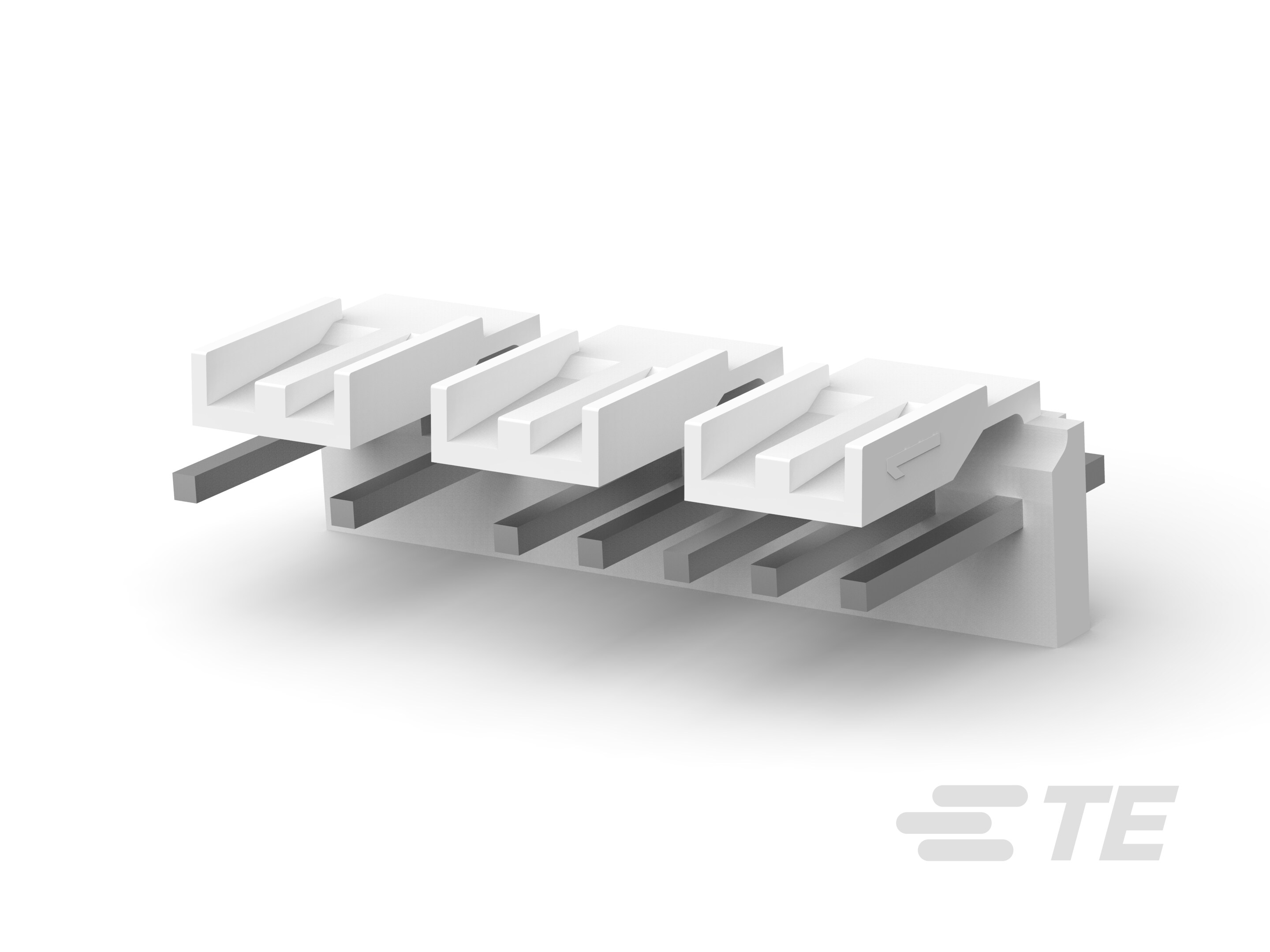

09P MTA156 POL HDR ASSY LF OMIT 6&8
| Part | Insulation Height | Insulation Height | Number of Rows | Current Rating (Amps) | Fastening Type | Contact Finish - Post | Contact Material | Number of Positions Loaded | Shrouding | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Connector Type | Contact Shape | Contact Length - Post [x] | Contact Length - Post [x] | Contact Type | Overall Contact Length | Overall Contact Length | Pitch - Mating | Pitch - Mating | Style | Voltage Rating | Number of Positions | Mounting Type | Insulation Color | Contact Length - Mating | Contact Length - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Features | Termination | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 11.43 mm | 0.45 in | 1 | Varies by Wire Gauge | Friction Lock | Tin | Copper Alloy | 7 | Shrouded - 1 Wall | 150 Áin | 3.81 Ám | Header | Square | 3.18 mm | 0.125 in | Male Pin | 17.78 mm | 0.7 in | 0.156 in | 3.96 mm | Board to Cable/Wire | 600 VAC | 9 | Through Hole | Natural | 11.43 mm | 0.45 in | 150 Áin | 3.81 Ám | UL94 V-0 | 105 ░C | -55 °C | Board Guide | Solder | General Purpose Industrial |
