R22268 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMP / RIGHT ANGLE RECEPTACLE SOL
| Part | Body Finish | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Voltage Rating | Body Material | Impedance | Center Contact Material | Number of Ports | Fastening Type | Shield Termination | Housing Color | Features | Mounting Type | Contact Termination | Connector Type | Frequency - Max [Max] | Dielectric Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

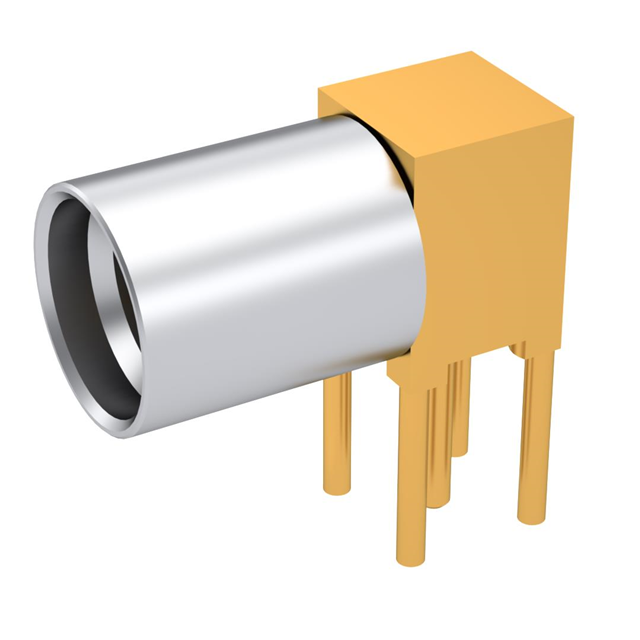

 Radiall USA, Inc. | Gold | Gold | -65 ░C | 165 °C | 1000 | 335 V | Brass Stainless Steel | 50 Ohms | Beryllium Copper | 1 | Snap-On | Solder | Gold Silver | Smooth Bore | Right Angle Through Hole | Solder | Receptacle Male Pin | 12 GHz | |
 Radiall USA, Inc. | Gold | Gold | -65 ░C | 165 °C | 335 V | Brass Stainless Steel | 50 Ohms | Beryllium Copper | 1 | Snap-On | Solder | Gold Silver | Full Detent | Right Angle Through Hole | Solder | Receptacle Male Pin | 12 GHz | ||

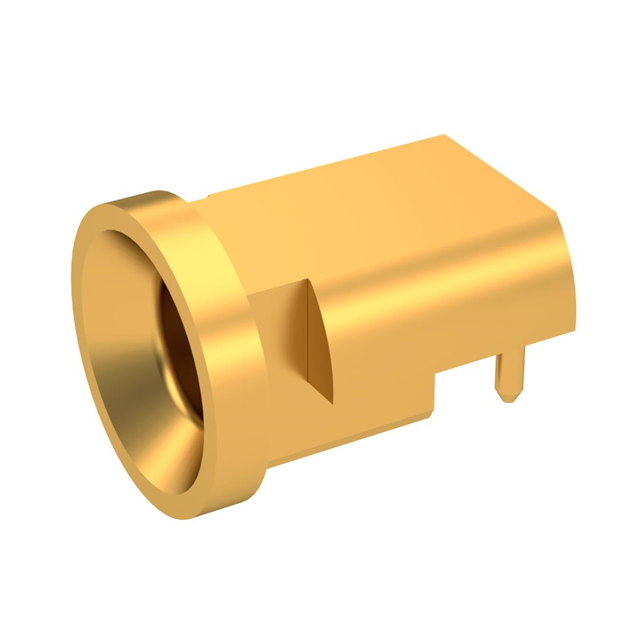

 Radiall USA, Inc. | Gold | Gold | -65 ░C | 165 °C | 335 V | Stainless Steel | 50 Ohms | Beryllium Copper | 1 | Snap-On | Solder | Gold | Catcher's Mitt | Board Edge Cutout Surface Mount Through Hole Right Angle | Solder | Receptacle Male Pin | 40 GHz | Polytetrafluoroethylene (PTFE) | |
 Radiall USA, Inc. | Gold | Gold | -65 ░C | 165 °C | 335 V | Brass Stainless Steel | 50 Ohms | Beryllium Copper | 1 | Snap-On | Solder | Gold Silver | Full Detent | Right Angle Through Hole | Solder | Receptacle Male Pin | 12 GHz |
