1565033 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

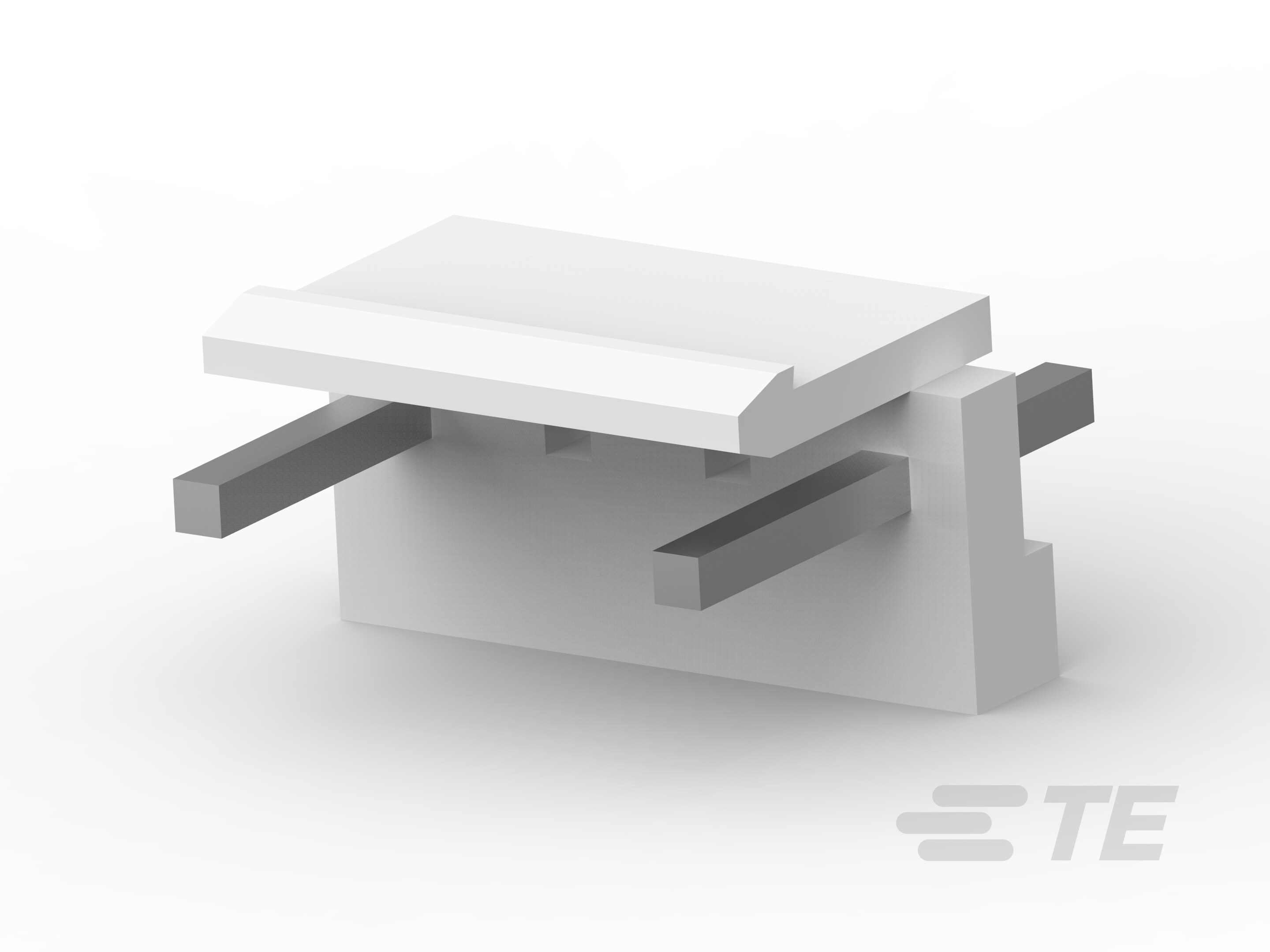

CONN WIRE TO BOARD HDR 4POWER POS 3.96MM SOLDER ST THRU-HOLE BAG
| Part | Number of Positions | Contact Type | Contact Length - Mating | Contact Length - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Number of Positions Loaded | Contact Shape | Contact Material | Insulation Height | Insulation Height | Number of Rows | Mounting Type | Insulation Color | Applications | Shrouding | Fastening Type | Current Rating (Amps) | Contact Length - Post | Contact Length - Post | Connector Type | Material Flammability Rating | Voltage Rating | Insulation Material | Overall Contact Length | Overall Contact Length | Termination | Style | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 4 | Male Pin | 7.7 mm | 0.303 in | -25 °C | 105 ░C | Tin | 2 | Square | Brass | 3.2 mm | 0.126 in | 1 | Through Hole | Natural | General Purpose Industrial Lighting | Shrouded - 1 Wall | Locking Ramp | 8 A | 0.146 in | 3.7 mm | Header | UL94 V-0 | 250 VAC | Polybutylene Terephthalate (PBT) Glass Filled | 0.575 in | 14.6 mm | Solder | Board to Cable/Wire | 0.156 in | 3.96 mm |
