19302160 Series
Manufacturer: HARTING
Beta
⌘K
16B HOOD CABLE TO CABLE, SINGLE LEVER, HIGH CONSTRUCTION, M32 - HIGH MATING CYCLE VERSION
| Part | Style | Ingress Protection | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Thread Size | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Lock Location | Housing Material | Features | Connector Type | Size | Housing Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

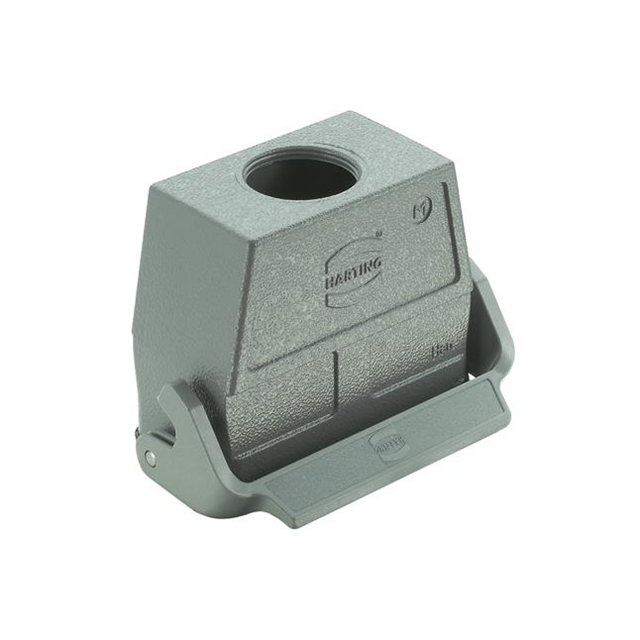

 HARTING | Top Entry Top or Bottom Entry | IP65 - Dust Tight Water Resistant | 3.067 in | 1.693 " | 43 mm | 3.681 in | 77.9 mm | 93.5 mm | M32 | 125 °C | -40 C | Gray | Locking Clip (1) on Hood | Aluminum Die Cast | Cable to Cable | Hood - Coupling | 16 B | Powder Coated |

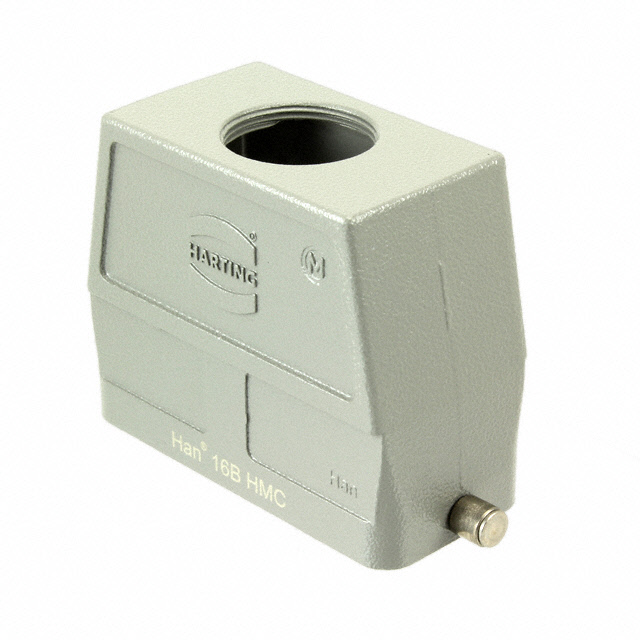

 HARTING | Top Entry | IP65 - Dust Tight Water Resistant | 2.992 in | 1.693 " | 43 mm | 3.681 in | 76 mm | 93.5 mm | M32 | 125 °C | -40 C | Gray | Locking Clip (1) on Base Bottom | Aluminum Die Cast | Hood | 16 B | Powder Coated | |
 HARTING | Side Entry | IP65 - Dust Tight Water Resistant | 3.181 in | 2.244 " | 57 mm | 4.606 in | 80.8 mm | 117 mm | M32 | 125 °C | -40 C | Gray | Locking Clip (1) on Base Bottom | Aluminum Die Cast | Feed Through | Base - Box Mount | 16 B | Powder Coated |
 HARTING | Side Entry | IP65 - Dust Tight Water Resistant | 3.181 in | 2.244 " | 57 mm | 4.606 in | 80.8 mm | 117 mm | M32 | 125 °C | -40 C | Gray | Locking Clip (1) on Base Bottom | Aluminum Die Cast | Base - Box Mount | 16 B | Powder Coated |
