M3426 Series

Catalog

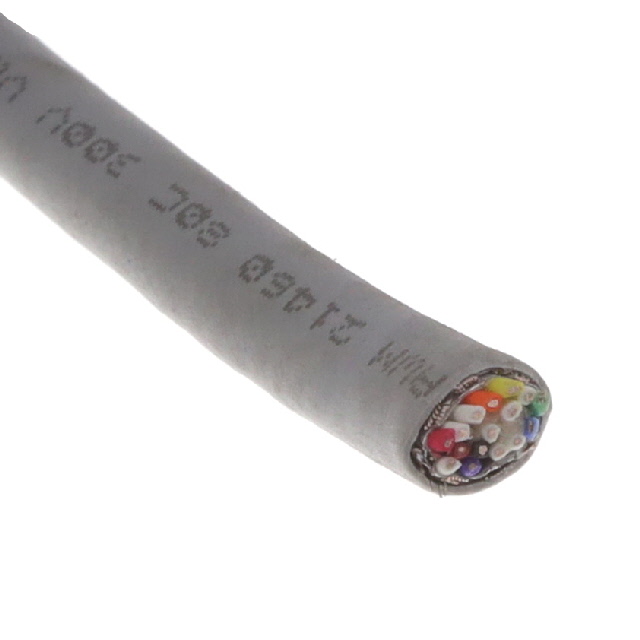

MULTI-PAIR 16COND 24AWG 3000'

Part	Shield Coverage	Shield Material	Jacket (Insulation) Material	Cable Type	Features	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Type	Conductor Insulation	Conductor Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage	Length	Length	Length [x]	Length [x]
ALPHA WIRE M3426 SL199	65 % 100 %	Aluminum Copper Tinned	Poly-Vinyl Chloride (PVC)	Multi-Pair	Drain Wire Rip Cord	7	32 AWG	Slate	16	9.22 mm	0.363 in	24 AWG	0.035 in	0.889 mm	Braid Foil	Polypropylene (PP)	Copper Tinned	80 °C	-20 ░C	300 VDC	914.4 m	3000 '
ALPHA WIRE M3426 SL002	65 % 100 %	Aluminum Copper Tinned	Poly-Vinyl Chloride (PVC)	Multi-Pair	Drain Wire Rip Cord	7	32 AWG	Slate	16	9.22 mm	0.363 in	24 AWG	0.035 in	0.889 mm	Braid Foil	Polypropylene (PP)	Copper Tinned	80 °C	-20 ░C	300 VDC	152.4 m	500 ft
ALPHA WIRE M3426 SL005	65 % 100 %	Aluminum Copper Tinned	Poly-Vinyl Chloride (PVC)	Multi-Pair	Drain Wire Rip Cord	7	32 AWG	Slate	16	9.22 mm	0.363 in	24 AWG	0.035 in	0.889 mm	Braid Foil	Polypropylene (PP)	Copper Tinned	80 °C	-20 ░C	300 VDC			100 ft	30.5 m
