3448 Series

Catalog

CONN TERM SPARK PLUG CRIMP

Part	Termination	Terminal Type	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Min]	Wire Gauge [Max]	Contact Material	Insulation	Stud/Tab Size	Contact Finish	Mounting Type	Thickness	Thickness	Features	Length - Termination [x]	Length - Termination [x]	Tongue Inside Opening [diameter]	Tongue Inside Opening [diameter]	Length - Ring Center to Termination	Length - Ring Center to Termination	Stud/Tab Size	Length - Overall
TE Connectivity AMP Connectors 34483	Crimp	Spark Plug

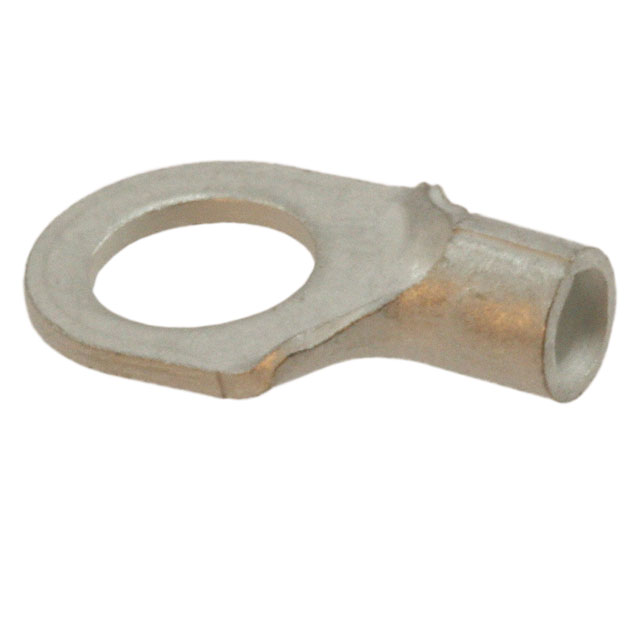

TE Connectivity AMP Connectors 34487	Crimp	Circular	0.421 in	10.69 mm	18.77 mm	0.739 in	12 AWG	14 AWG	Copper	Non-Insulated	0.25 Stud	Tin	Free Hanging (In-Line)	0.97 mm	0.038 "	Brazed Seam Serrated Termination

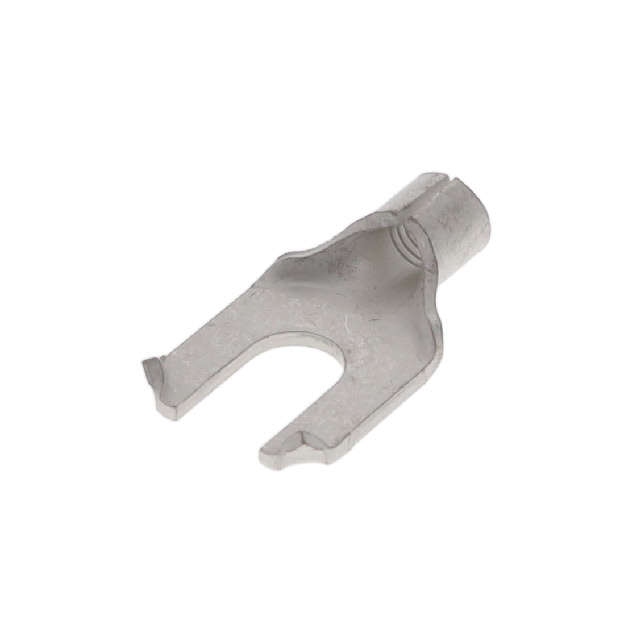

TE Connectivity AMP Connectors 34489	Crimp	Flanged	0.421 in	10.69 mm	19.28 mm	0.759 in	12 AWG	14 AWG	Copper	Non-Insulated	10 Stud	Tin	Free Hanging (In-Line)			Brazed Seam Serrated Termination	0.196 in	4.98 mm	0.197 in	5 mm	8.38 mm	0.33 in
TE Connectivity AMP Connectors 34487	Crimp	Circular	0.421 in	10.69 mm	18.77 mm	0.739 in	12 AWG	14 AWG	Copper	Non-Insulated		Tin	Free Hanging (In-Line)	0.97 mm	0.038 "								M6 Stud
TE Connectivity AMP Connectors 34486	Crimp	D-Shaped	0.687 in	17.45 mm	28.45 mm	1.12 in	12 AWG	14 AWG	Copper	Non-Insulated	0.375 Stud	Tin	Free Hanging (In-Line)	0.97 mm	0.038 "	Brazed Seam Serrated Termination

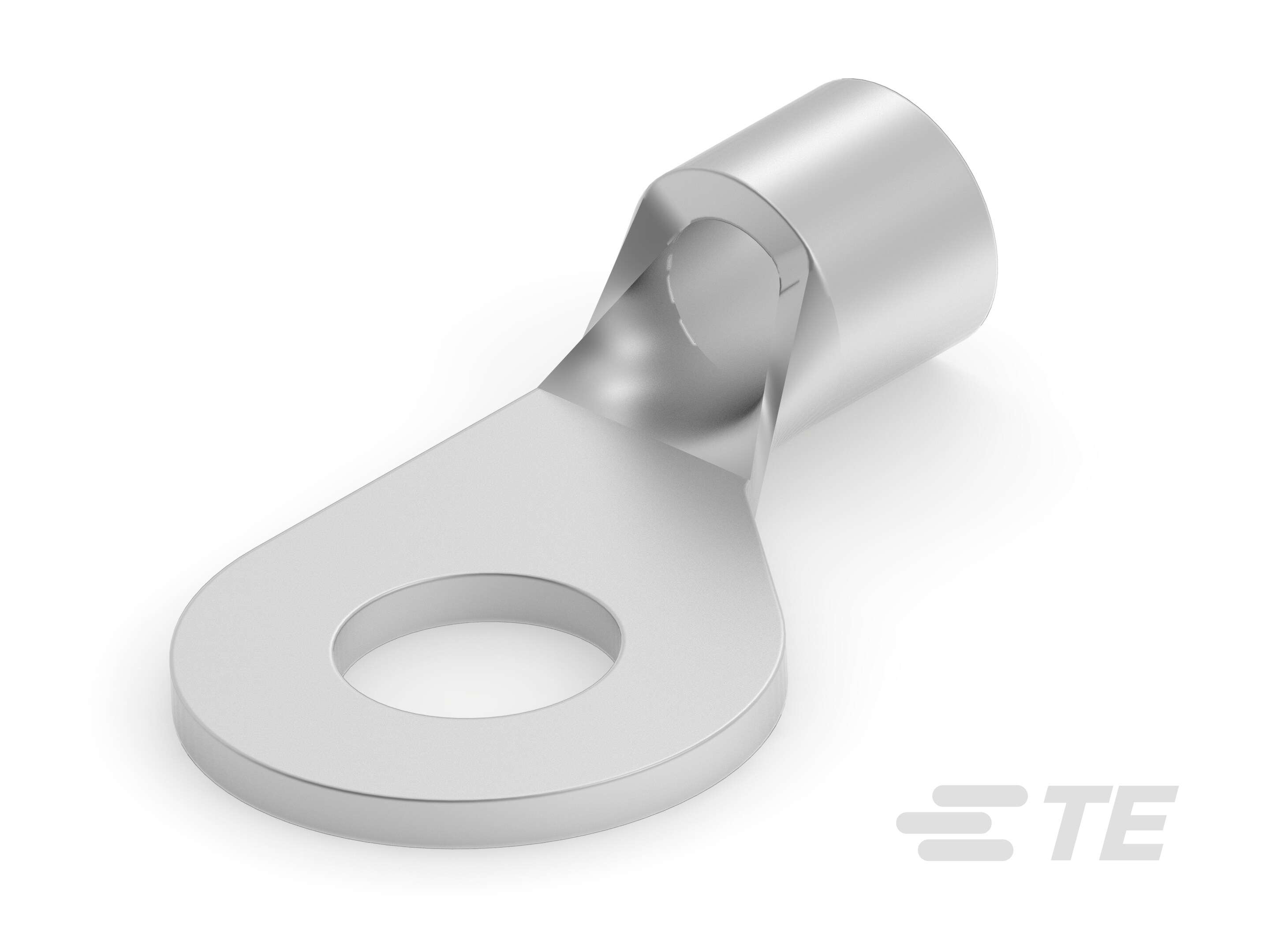

TE Connectivity AMP Connectors 34488	Crimp	Circular	0.421 in	10.69 mm		0.769 in	12 AWG	14 AWG	Copper	Non-Insulated	10 Stud	Tin	Free Hanging (In-Line)	0.99 mm	0.039 in	Brazed Seam Offset Holes Serrated Termination								19.53 mm
