8690 Series
Manufacturer: Belden Inc.
Beta
⌘K

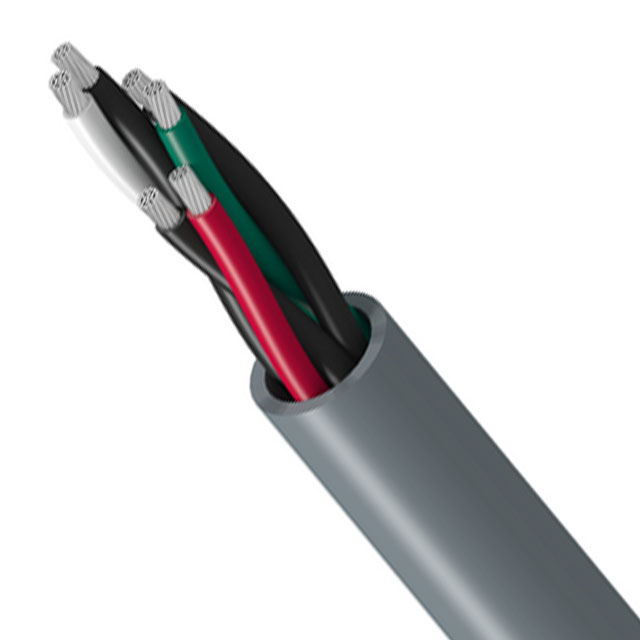

MULTI-PAIR 6CON 18AWG CHRM
| Part | Voltage | Ratings | Conductor Insulation | Jacket Color | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Length | Length | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Wire Gauge | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 300 VDC | UL Style 2464 | Poly-Vinyl Chloride (PVC) | Chrome | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Copper Tinned | 0.347 in | 8.81 mm | Multi-Pair | 18 AWG | Audio Control Instrumentation | 0.813 mm | 0.032 in | 6 | 16 | 30 AWG | ||
Belden Inc. | 300 VDC | UL Style 2464 | Poly-Vinyl Chloride (PVC) | Chrome | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | Copper Tinned | 0.347 in | 8.81 mm | Multi-Pair | 18 AWG | Audio Control Instrumentation | 0.813 mm | 0.032 in | 6 | 16 | 30 AWG | ||
Belden Inc. | 300 VDC | UL Style 2464 | Poly-Vinyl Chloride (PVC) | Chrome | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | Copper Tinned | 0.347 in | 8.81 mm | Multi-Pair | 18 AWG | Audio Control Instrumentation | 0.813 mm | 0.032 in | 6 | 16 | 30 AWG | ||||
Belden Inc. | 300 VDC | UL Style 2464 | Poly-Vinyl Chloride (PVC) | Chrome | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | Copper Tinned | 0.347 in | 8.81 mm | Multi-Pair | 18 AWG | Audio Control Instrumentation | 0.813 mm | 0.032 in | 6 | 16 | 30 AWG | ||
Belden Inc. | UL Style 2464 | Poly-Vinyl Chloride (PVC) | Chrome | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | Copper Tinned | 0.347 in | 8.81 mm | Multi-Pair | 18 AWG | Audio Control Instrumentation | 0.813 mm | 0.032 in | 6 | 16 | 30 AWG | 100 ft | 30.5 m |
