G9TA-K Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

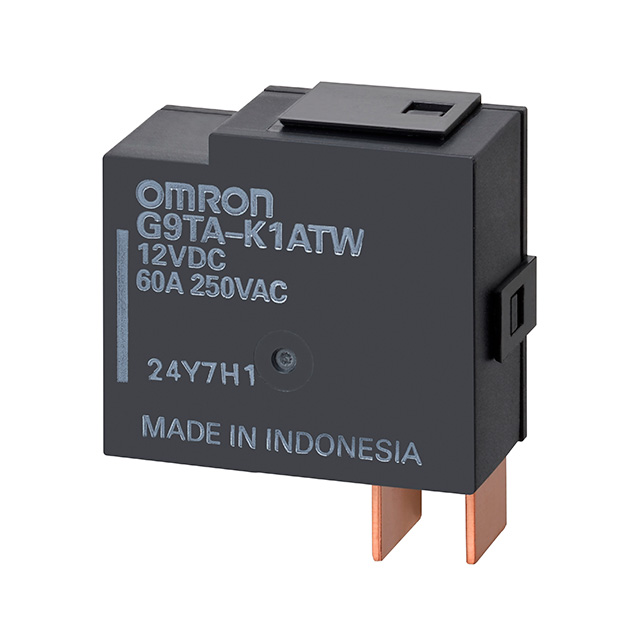

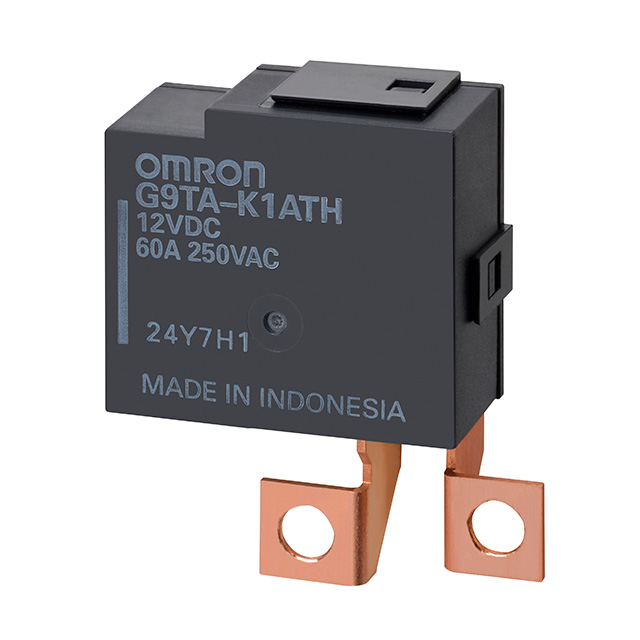

RELAY GEN PURPOSE SPST 60A 12V
| Part | Release Time | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Load - Max Switching | Termination Style | Contact Rating (Current) | Contact Material | Relay Type | Switching Voltage | Coil Current | Operate Time | Coil Voltage | Coil Resistance | Must Operate Voltage | Seal Rating | Coil Type | Contact Form |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 20 ms | 85 °C | -40 °C | Through Hole | 15000 VA | PC Pin | 60 A | Silver Alloy | General Purpose | 250 VAC | 217 mA | 20 ms | 12 VDC | 55 Ohms | 9.6 VDC | Sealed - Flux Protection | Latching Dual Coil | SPST-NO (1 Form A) |
 Omron Electronics Inc-EMC Div | 20 ms | 85 °C | -40 °C | Free Hanging | 15000 VA | Square Lug | 60 A | Silver Alloy | General Purpose | 250 VAC | 217 mA | 20 ms | 12 VDC | 55 Ohms | 9.6 VDC | Latching Dual Coil | SPST-NO (1 Form A) | |
 Omron Electronics Inc-EMC Div | 20 ms | 85 °C | -40 °C | Free Hanging | 15000 VA | PC Pin Weld Terminal | 60 A | Silver Alloy | General Purpose | 250 VAC | 217 mA | 20 ms | 12 VDC | 55 Ohms | 9.6 VDC | Latching Dual Coil | SPST-NO (1 Form A) |
