CMLE105T Series

Catalog

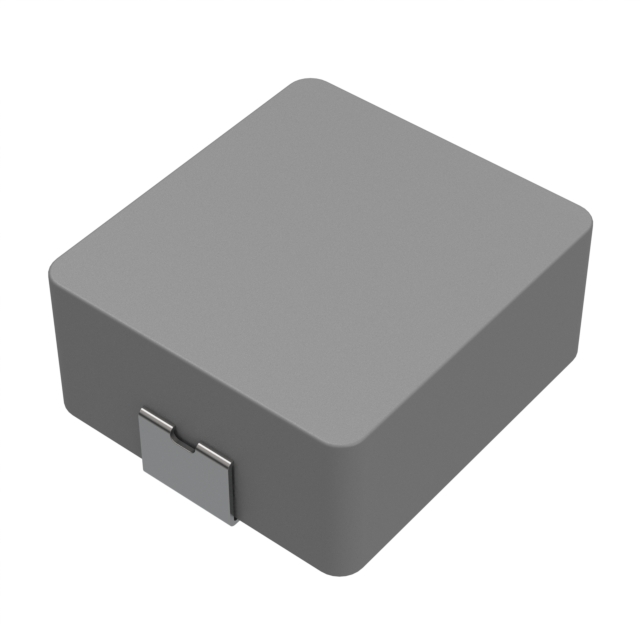

FIXED IND 5.6UH 10A 15 MOHM SMD

Part	Material - Core	DC Resistance (DCR) [Max]	Current Rating (Amps)	Mounting Type	Inductance Frequency - Test	Package / Case	Shielding	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Saturation (Isat)	Inductance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	DC Resistance (DCR)
Delta Electronics/Cyntec CMLE105T-5R6MS	Metal	15 mOhm	10 A	Surface Mount	100 kHz	Nonstandard	Shielded	20 %	0.197 in	5 mm	-55 C	125 °C	13 A	5.6 µH	10 mm	0.394 in	0.427 in	10.85 mm
Delta Electronics/Cyntec CMLE105T-1R5MS	Metal		24 A	Surface Mount	100 kHz	Nonstandard	Shielded	20 %	0.197 in	5 mm	-55 C	125 °C	30 A	1.5 µH	10 mm	0.394 in	0.439 in	11.15 mm	3 mOhm
Delta Electronics/Cyntec CMLE105T-100MS	Metal	23 mOhm	7.6 A	Surface Mount	100 kHz	Nonstandard	Shielded	20 %	0.197 in	5 mm	-55 C	125 °C	11 A	10 µH	10 mm	0.394 in	0.427 in	10.85 mm
Delta Electronics/Cyntec CMLE105T-2R2MS	Metal	4.5 mOhm	19.5 A	Surface Mount	100 kHz	Nonstandard	Shielded	20 %	0.197 in	5 mm	-55 C	125 °C	26 A	2.2 µH	10 mm	0.394 in	0.439 in	11.15 mm
Delta Electronics/Cyntec CMLE105T-3R3MS	Metal		15 A	Surface Mount	100 kHz	Nonstandard	Shielded	20 %	0.197 in	5 mm	-55 C	125 °C	22 A	3.3 µH	10 mm	0.394 in	0.427 in	10.85 mm	7.5 mOhm
Delta Electronics/Cyntec CMLE105T-1R0MS	Metal	2.5 mOhm	25.5 A	Surface Mount	100 kHz	Nonstandard	Shielded	20 %	0.197 in	5 mm	-55 C	125 °C	36 A	1 µH	10 mm	0.394 in	0.439 in	11.15 mm
Delta Electronics/Cyntec CMLE105T-6R8MS	Metal		9 A	Surface Mount	100 kHz	Nonstandard	Shielded	20 %	0.197 in	5 mm	-55 C	125 °C		6.8 µH	10 mm	0.394 in	0.427 in	10.85 mm	16.3 mOhm
Delta Electronics/Cyntec CMLE105T-4R7MS	Metal	11.5 mOhm	10.5 A	Surface Mount	100 kHz	Nonstandard	Shielded	20 %	0.197 in	5 mm	-55 C	125 °C	19 A	4.7 ÁH	10 mm	0.394 in	0.427 in	10.85 mm
