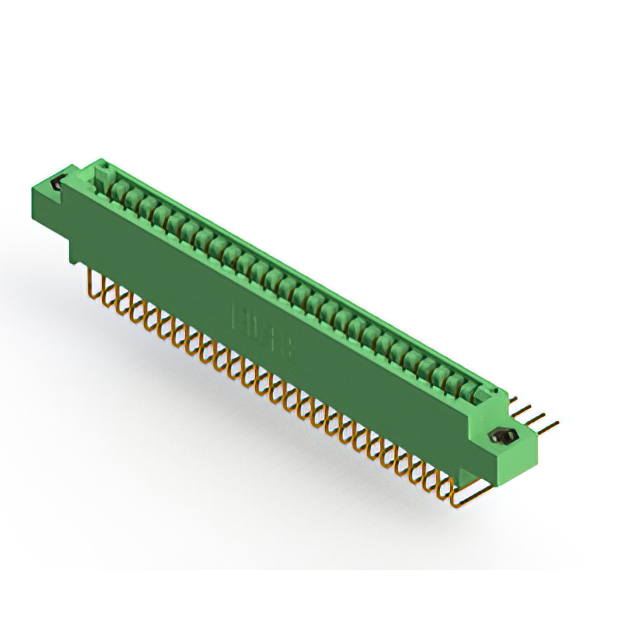

846-054 Series
Manufacturer: EDAC Inc.
Beta
⌘K

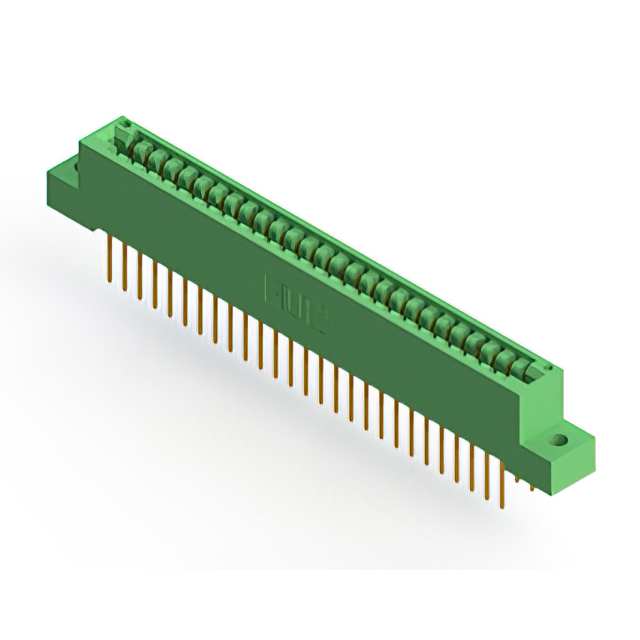

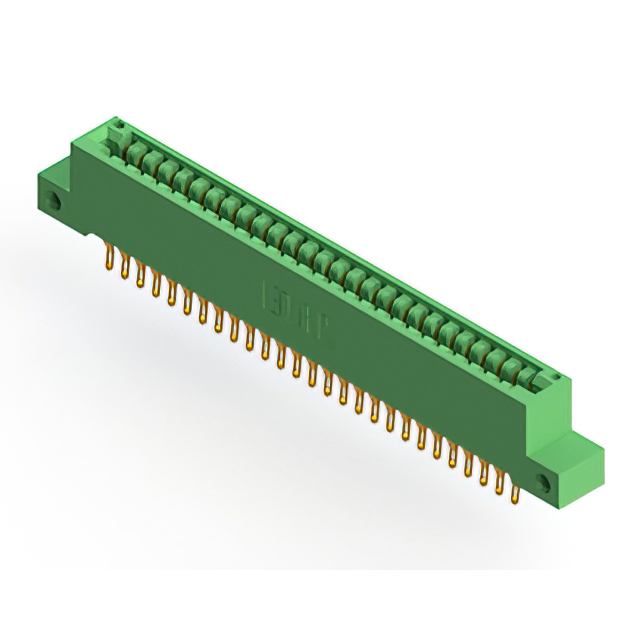

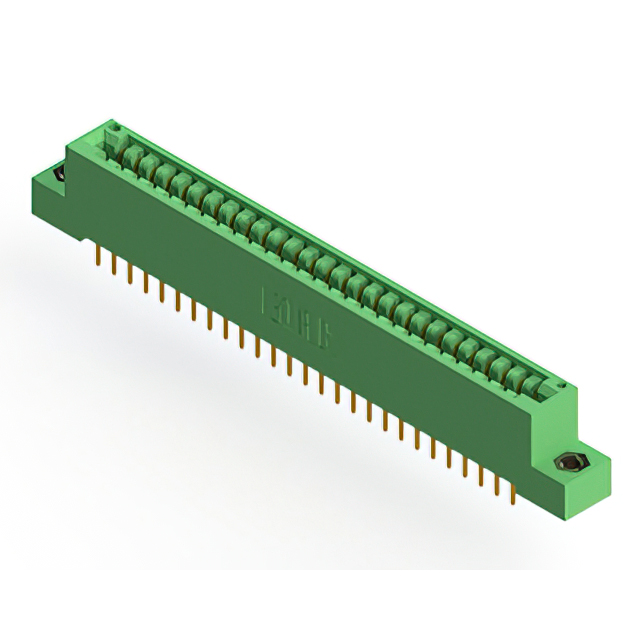

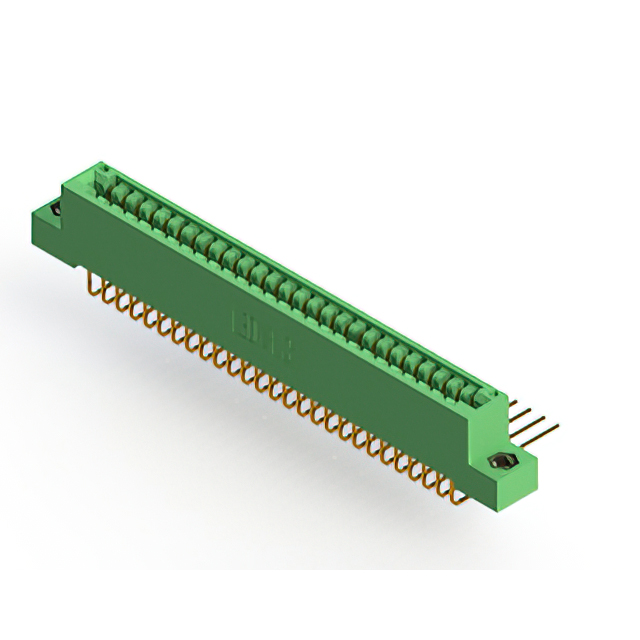

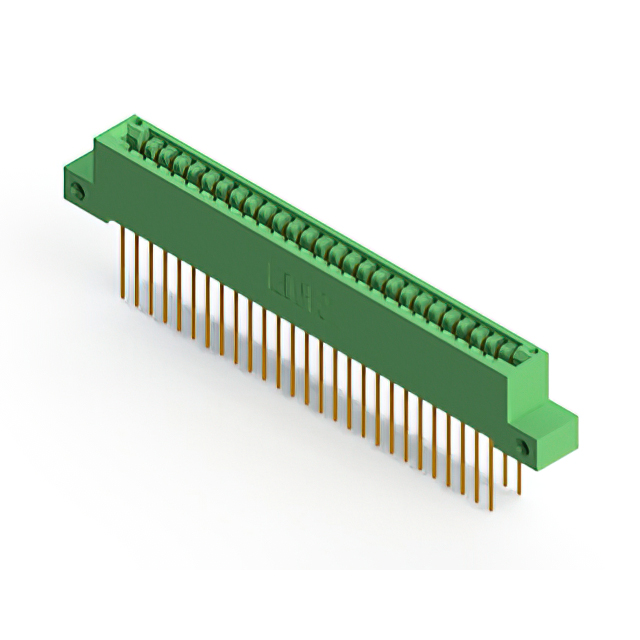

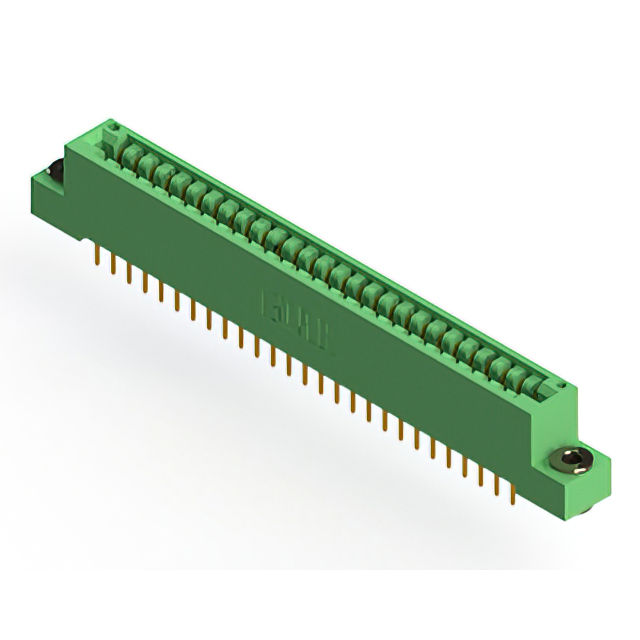

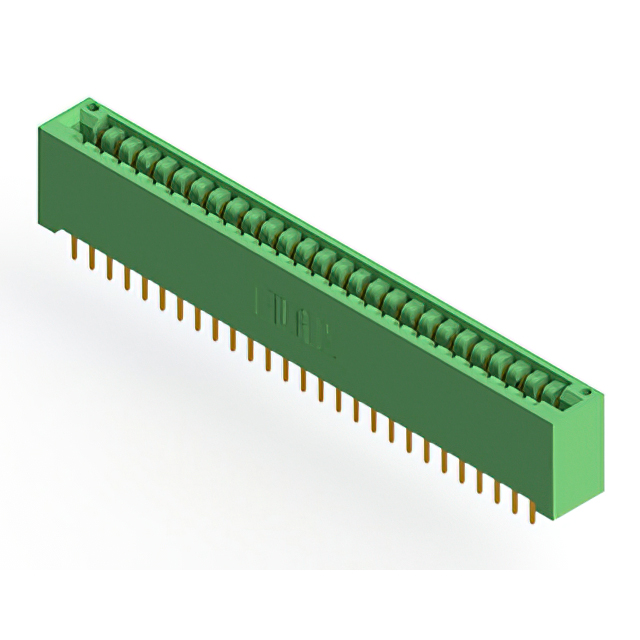

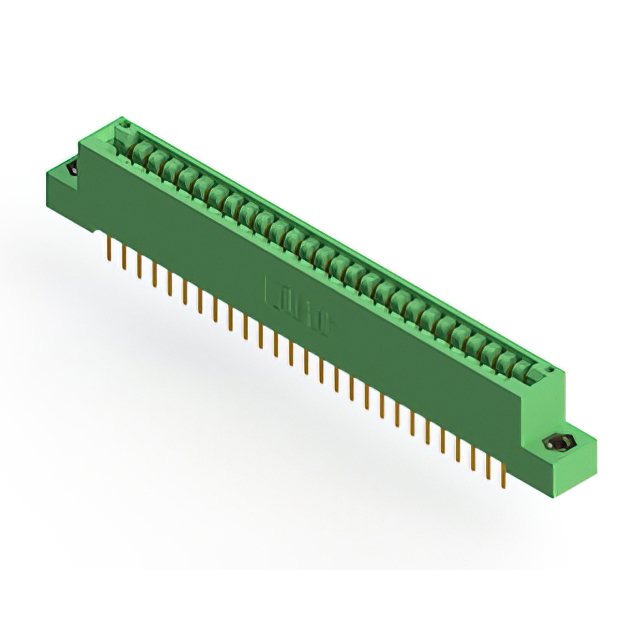

CONN EDGE DUAL FMALE 54POS 0.125
| Part | Material - Insulation | Termination Rows [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows [custom] | Pitch | Pitch | Contact Material | Contact Finish | Read Out | Gender | Contact Type | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Termination | Color | Number of Positions/Bay/Row | Flange Feature | Card Thickness [Max] | Card Thickness [Min] | Card Type | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 125 °C | -40 C | 2 | 3.18 mm | 0.125 in | Copper Alloy | Gold | Dual | Female | Cantilever | 54 | 0.25 Ám | 10 Áin | Through Hole | Solder | Green | 27 | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 125 °C | -40 C | 2 | 3.18 mm | 0.125 in | Copper Alloy | Gold | Dual | Female | Cantilever | 54 | 0.25 Ám | 10 Áin | Through Hole | Solder Eyelet(s) | Green | 27 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 125 °C | -40 C | 2 | 3.18 mm | 0.125 in | Copper Alloy | Gold | Dual | Female | Cantilever | 54 | 0.25 Ám | 10 Áin | Right Angle Through Hole | Solder | Green | 27 | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 125 °C | -40 C | 2 | 3.18 mm | 0.125 in | Copper Alloy | Gold | Dual | Female | Cantilever | 54 | 0.25 Ám | 10 Áin | Through Hole | Solder | Green | 27 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 125 °C | -40 C | 2 | 3.18 mm | 0.125 in | Copper Alloy | Gold | Dual | Female | Cantilever | 54 | 0.25 Ám | 10 Áin | Right Angle Through Hole | Solder | Green | 27 | Flush Mount M3 Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 125 °C | -40 C | 2 | 3.18 mm | 0.125 in | Copper Alloy | Gold | Dual | Female | Cantilever | 54 | 0.25 Ám | 10 Áin | Right Angle Through Hole | Solder | Green | 27 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 125 °C | -40 C | 2 | 3.18 mm | 0.125 in | Copper Alloy | Gold | Dual | Female | Cantilever | 54 | 0.25 Ám | 10 Áin | Right Angle Through Hole | Solder | Green | 27 | 4-40 Threaded Insert Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 125 °C | -40 C | 2 | 3.18 mm | 0.125 in | Copper Alloy | Gold | Dual | Female | Cantilever | 54 | 0.25 Ám | 10 Áin | Board Edge Straddle Mount | Solder Eyelet(s) | Green | 27 | Flush Mount Side Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Card Extender | 0.128 " | 3.25 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 125 °C | -40 C | 2 | 3.18 mm | 0.125 in | Copper Alloy | Gold | Dual | Female | Cantilever | 54 | 0.25 Ám | 10 Áin | Right Angle Through Hole | Solder | Green | 27 | Floating Bobbin Flush Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 0.116 " | 2.95 mm | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 125 °C | -40 C | 2 | 3.18 mm | 0.125 in | Copper Alloy | Gold | Dual | Female | Cantilever | 54 | 0.25 Ám | 10 Áin | Through Hole | Solder | Green | 27 | Flush Mount Top Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 0.128 " | 3.25 mm |
