221185 Series

Catalog

CONN BNC PLUG STR 75 OHM CRIMP

Part	Impedance	Body Finish	Contact Termination	Connector Style	Mating Cycles	Frequency - Max [Max]	Fastening Type	Cable Group	Cable Group	Connector Type	Number of Ports	Mounting Type	Shield Termination	Operating Temperature [Max]	Operating Temperature [Min]	Insertion Loss	Housing Color	Center Contact Plating	Voltage Rating	Center Contact Material	Body Material

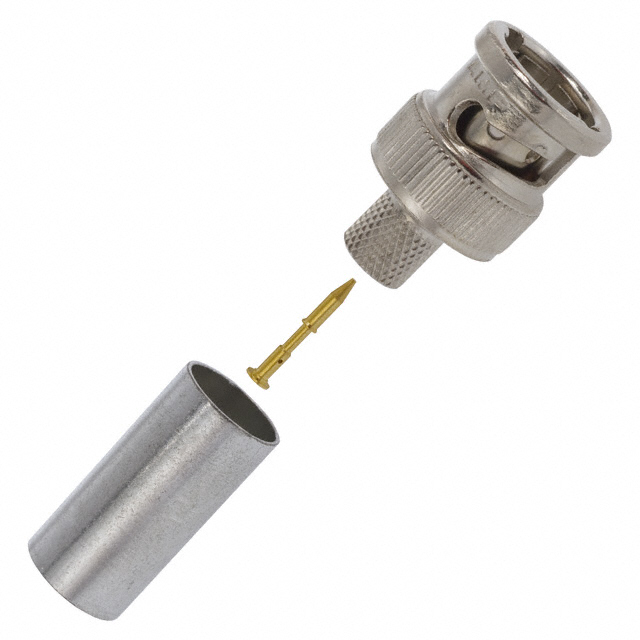

TE Connectivity Raychem Cable Protection 221185-7	75 Ohms	Nickel	Crimp	BNC	500	2 GHz	Bayonet Lock	RG-6	6 A	Male Pin Plug	1	Free Hanging (In-Line)	Crimp	85 °C	-55 °C	0.15 dB	Silver	Gold	500 V	Brass
TE Connectivity Raychem Cable Protection 221185-9	75 Ohms	Nickel	Crimp	BNC	500	2 GHz	Bayonet Lock	RG-59		Male Pin Plug	1	Free Hanging (In-Line)	Crimp	85 °C	-55 °C	0.15 dB	Silver	Gold	500 V	Brass	Zinc
TE Connectivity Raychem Cable Protection 3-221185-1	75 Ohms	Nickel	Crimp	BNC	500	2 GHz	Bayonet Lock	Comscope F59 HEC-2		Male Pin Plug	1	Free Hanging (In-Line)	Crimp	85 °C	-55 °C	0.15 dB	Silver	Gold	500 V	Brass	Zinc

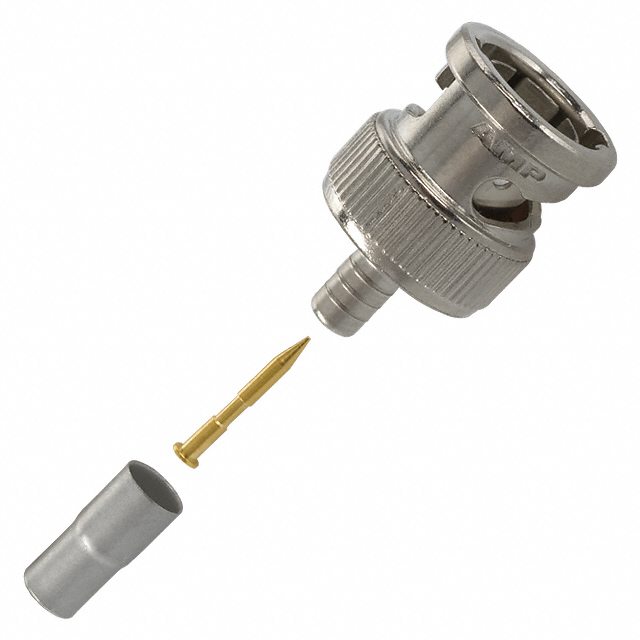

TE Connectivity Raychem Cable Protection 221185-3	75 Ohms	Nickel	Crimp	BNC	500	2 GHz	Bayonet Lock	Belden 8218		Male Pin Plug	1	Free Hanging (In-Line)	Crimp	85 °C	-55 °C	0.15 dB	Silver	Gold	500 V	Brass
