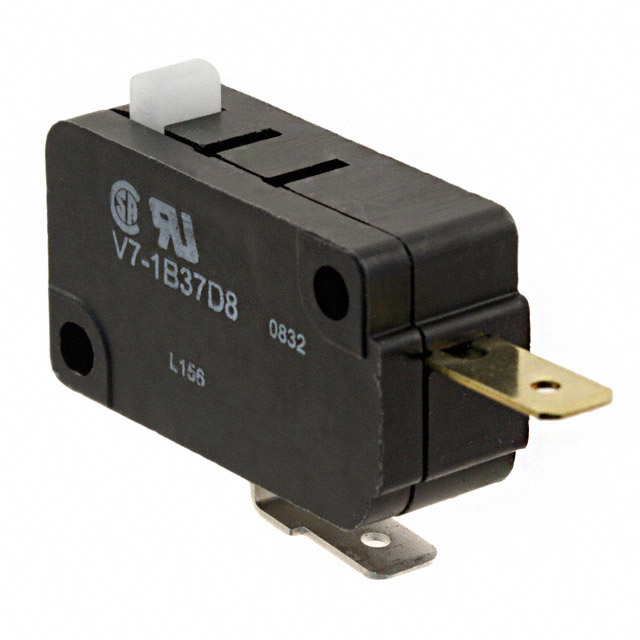

V7-1B3 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACT SPST-NC 11A 125V
| Part | Circuit | Operating Force | Termination Style | Electrical Life | Release Force | Overtravel [custom] | Overtravel [custom] | Mounting Type | Mechanical Life | Voltage Rating - AC | Pretravel | Pretravel | Differential Travel [x] | Differential Travel [x] | Current Rating (Amps) | Operating Position | Operating Position | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC | Actuator Type | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | SPST-NC | 150 gf | Quick Connect | 100000 Cycles | 25 gf | 1.27 mm | 0.05 " | Chassis Mount | 10000000 Cycles | 125 V | 1.2 mm | 0.047 in | 0.01 in | 0.25 mm | 11 A 500 mA | 14.7 mm | 0.579 in | 85 °C | -40 C | 125 VDC | Round (Pin Plunger) | On-Mom |
