TLC352 Series

Catalog

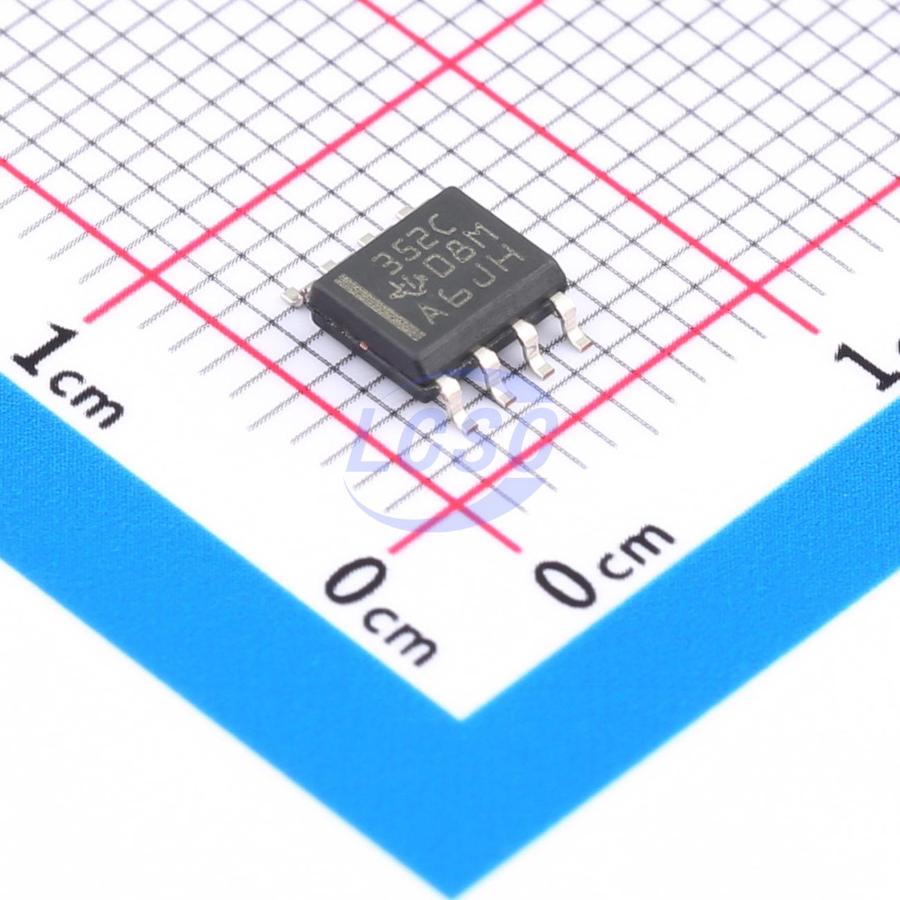

IC COMPARATOR 2 DIFF 8SOIC

Part	Voltage - Input Offset (Max)	Supplier Device Package	Current - Output (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Elements	Output Type	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Current - Input Bias (Max)	Mounting Type	Current - Quiescent (Max) [Max]	Package / Case	Package / Case [y]	Package / Case [x]	Type	Package / Case	Package / Case	Package / Case [custom]	Package / Case [custom]
Texas Instruments TLC352IDG4	5 mV	8-SOIC	20 mA	85 °C	-40 °C	2	CMOS MOS Open-Drain TTL	8 V 16 V	0.7 V 1.4 V	5 pA	Surface Mount	400 µA	8-SOIC	3.9 mm	0.154 in	Differential
Texas Instruments TLC352CDR	5 mV	8-SOIC	20 mA	70 °C	0 °C	2	CMOS MOS Open-Drain TTL	8 V 16 V	0.7 V 1.4 V	5 pA	Surface Mount	400 µA	8-SOIC	3.9 mm	0.154 in	Differential
Texas Instruments TLC352IP	5 mV	8-PDIP	20 mA	85 °C	-40 °C	2	CMOS MOS Open-Drain TTL	8 V 16 V	0.7 V 1.4 V	5 pA	Through Hole	400 µA	8-DIP			Differential	0.3 in	7.62 mm
Texas Instruments TLC352IPW	5 mV	8-TSSOP	20 mA	85 °C	-40 °C	2	CMOS MOS Open-Drain TTL	8 V 16 V	0.7 V 1.4 V	5 pA	Surface Mount	400 µA	8-TSSOP			Differential			0.173 "	4.4 mm
Texas Instruments TLC352CD	5 mV	8-SOIC	20 mA	70 °C	0 °C	2	CMOS MOS Open-Drain TTL	8 V 16 V	0.7 V 1.4 V	5 pA	Surface Mount	400 µA	8-SOIC	3.9 mm	0.154 in	Differential
Texas Instruments TLC352IPWG4	5 mV	8-TSSOP	20 mA	85 °C	-40 °C	2	CMOS MOS Open-Drain TTL	8 V 16 V	0.7 V 1.4 V	5 pA	Surface Mount	400 µA	8-TSSOP			Differential			0.173 "	4.4 mm
Texas Instruments TLC352CPWR	5 mV	8-TSSOP	20 mA	70 °C	0 °C	2	CMOS MOS Open-Drain TTL	8 V 16 V	0.7 V 1.4 V	5 pA	Surface Mount	400 µA	8-TSSOP			Differential			0.173 "	4.4 mm
Texas Instruments TLC352IDRG4	5 mV	8-SOIC	20 mA	85 °C	-40 °C	2	CMOS MOS Open-Drain TTL	8 V 16 V	0.7 V 1.4 V	5 pA	Surface Mount	400 µA	8-SOIC	3.9 mm	0.154 in	Differential
Texas Instruments TLC352CDRG4	5 mV	8-SOIC	20 mA	70 °C	0 °C	2	CMOS MOS Open-Drain TTL	8 V 16 V	0.7 V 1.4 V	5 pA	Surface Mount	400 µA	8-SOIC	3.9 mm	0.154 in	Differential
Texas Instruments TLC352IPWR	5 mV	8-TSSOP	20 mA	85 °C	-40 °C	2	CMOS MOS Open-Drain TTL	8 V 16 V	0.7 V 1.4 V	5 pA	Surface Mount	400 µA	8-TSSOP			Differential			0.173 "	4.4 mm
