EHW007 Series

Catalog

DC DC CONVERTER 12V 84W

Part	Voltage - Output 1	Features	Efficiency	Voltage - Input (Min) [Min]	Control Features	Applications	Number of Outputs	Voltage - Input (Max) [Max]	Power (Watts)	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Type

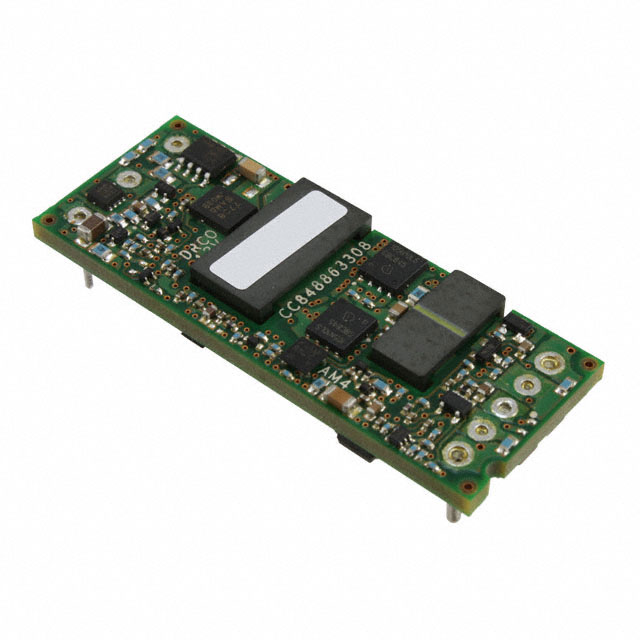

OmniOn Power™ EHW007A0B41Z	12 V	OCP OTP OVP Remote On/Off UVLO	92.5 %	36 V	Active Low Enable	ITE (Commercial)	1	75 V	84 W	Through Hole	2.3 in	22.8 mm	8.1 mm	58.4 mm	0.9 in	0.32 "	7 A	Module	85 °C	-40 C	2250 VDC	Isolated Module
OmniOn Power™ EHW007A0B41Z	12 V	OCP OTP OVP Remote On/Off UVLO	92.5 %	36 V	Active Low Enable	ITE (Commercial)	1	75 V	84 W	Through Hole	2.3 in	22.8 mm	8.1 mm	58.4 mm	0.9 in	0.32 "	7 A	Module	85 °C	-40 C	2250 VDC	Isolated Module
