ZMSL03130 Series

Catalog

SWITCH SNAP ACTION SPDT 3A 125V

Part	Mounting Type	Differential Travel	Differential Travel	Pretravel	Pretravel	Overtravel [custom]	Overtravel [custom]	Voltage Rating - DC	Current Rating (Amps)	Electrical Life	Mechanical Life	Switch Function	Voltage Rating - AC	Release Force	Operating Force	Actuator Type	Operating Position	Operating Position	Termination Style	Circuit	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Features	Overtravel	Overtravel
LITTELFUSE ZMSL03130T11PSC	Through Hole	0.76 mm	0.03 in	4.8 mm	0.188 in	0.062 "	1.6 mm	12 V	3 A	100000 Cycles	500000 Cycles	On-Mom	125 V	45 gf	160 gf	Lever Simulated Roller	0.539 in	13.7 mm	PC Pin	SPDT	IP65 - Dust Tight Water Resistant	85 °C	-40 C

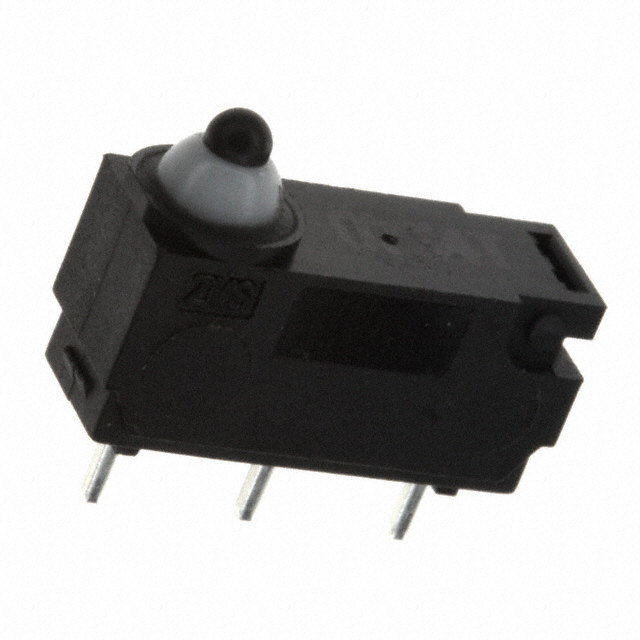

LITTELFUSE ZMSL03130P00PSC	Through Hole	0.3 mm	0.012 in	0.8 mm	0.03 "	0.031 "	0.79 mm	12 V	3 A	100000 Cycles	500000 Cycles	On-Mom	125 V	13 gf	130 gf	Round (Pin Plunger)	0.415 in	10.55 mm	PC Pin	SPDT	IP65 - Dust Tight Water Resistant	85 °C	-40 C

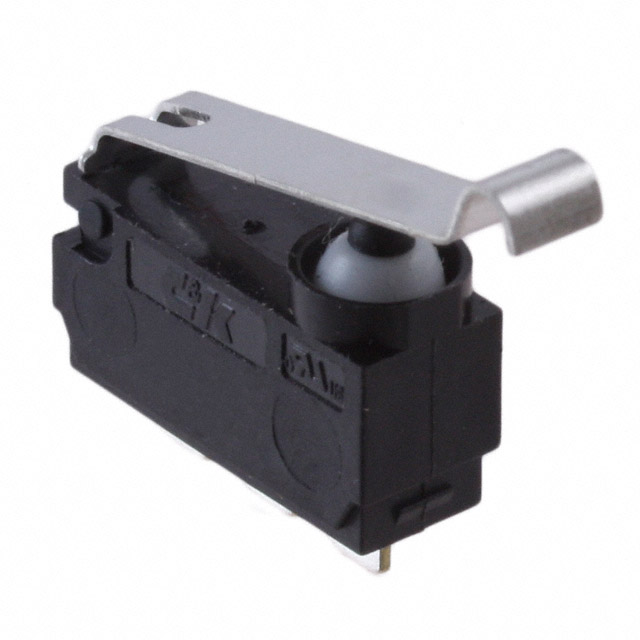

LITTELFUSE ZMSL03130T11SSC	Chassis Mount	0.76 mm	0.03 in	4.8 mm	0.188 in	0.062 "	1.6 mm	12 V	3 A	100000 Cycles	500000 Cycles	On-Mom	125 V	45 gf	160 gf	Lever Simulated Roller	0.539 in	13.7 mm	Solder Lug	SPDT	IP65 - Dust Tight Water Resistant	85 °C	-40 C

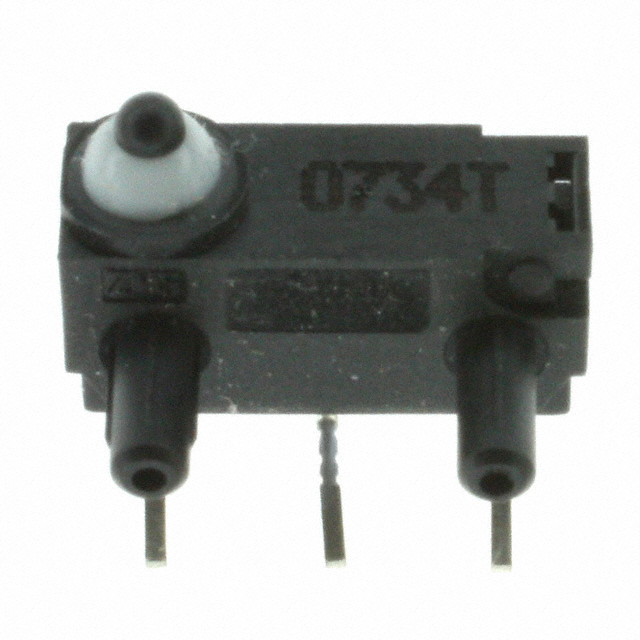

LITTELFUSE ZMSL03130P00RRC	Right Angle Through Hole	0.3 mm	0.012 in	0.8 mm	0.03 "	0.031 "	0.79 mm	12 V	3 A	100000 Cycles	500000 Cycles	On-Mom	125 V	13 gf	130 gf	Round (Pin Plunger)	0.415 in	10.55 mm	PC Pin	SPDT	IP65 - Dust Tight Water Resistant	85 °C	-40 C	Support Posts

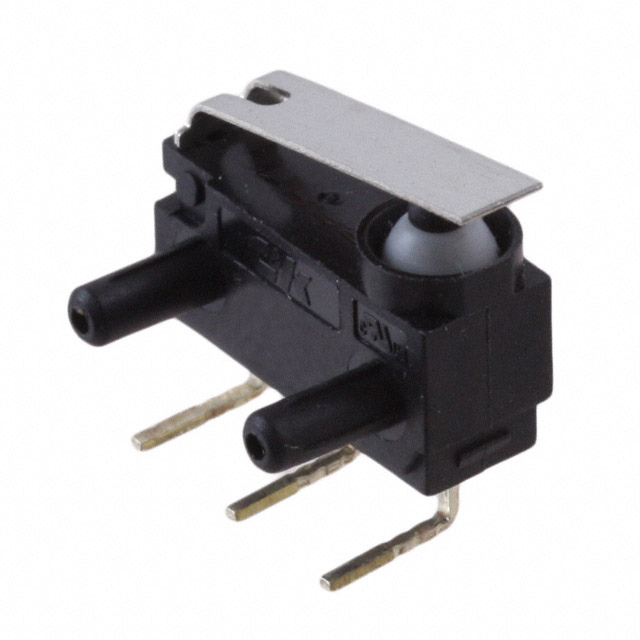

LITTELFUSE ZMSL03130T10LLC	Right Angle Through Hole	0.5 mm	0.02 in	3.85 mm	0.152 in			12 V	3 A	100000 Cycles	500000 Cycles	On-Mom	125 V	55 gf	195 gf	Lever Straight	0.44 in	11.2 mm	PC Pin	SPDT	IP65 - Dust Tight Water Resistant	85 °C	-40 C	Support Posts	0.053 in	1.35 mm
