F6025 Series

Catalog

FAN AXIAL 60X25MM 24VDC WIRE

...

Part	Material - Blade	Current Rating (Amps)	Air Flow	Air Flow	Features	Weight [custom]	Weight [custom]	Termination	Width [y]	RPM	Static Pressure	Static Pressure	Fan Type	Size / Dimension [z]	Size / Dimension [x]	Noise	Voltage - Rated	Bearing Type	Approval Agency	Air Flow
Mechatronics Fan Group F6025X24B2-RHR-TTL	Polybutylene Terephthalate (PBT)	0.17 A	28 CFM	0.784 m³/min	Locked Rotor Sensor Thermal Overload Protector (TOP)	0.139 lb	63.05 g	3 Wire Leads	25 mm	5800 RPM	0.37 in H2O	92.2 Pa	Tubeaxial	60 mm	60 mm	42 dB	24 VDC	Ball	CE cUL TUV UL
Mechatronics Fan Group F6025H12B4-RHR	Polybutylene Terephthalate (PBT)	140 mA	20 CFM	0.56 m³/min	Thermal Overload Protector (TOP) Thermistor	0.139 lb	63.05 g	2 Wire Leads	25 mm	4200 RPM	0.26 in H2O	64.8 Pa	Tubeaxial	60 mm	60 mm	32 dB	12 VDC	Ball	CE cUL TUV UL
Mechatronics Fan Group F6025H12B2-RSR-CC	Polybutylene Terephthalate (PBT)	140 mA	20 CFM	0.56 m³/min	Auto Restart Conformal Coating Locked Rotor Sensor	0.139 lb	63.05 g	3 Wire Leads	25 mm	3800 RPM	0.16 in H2O	39.8 Pa	Tubeaxial	60 mm	60 mm	31 dB(A)	12 VDC	Ball	CE cUL TUV UL

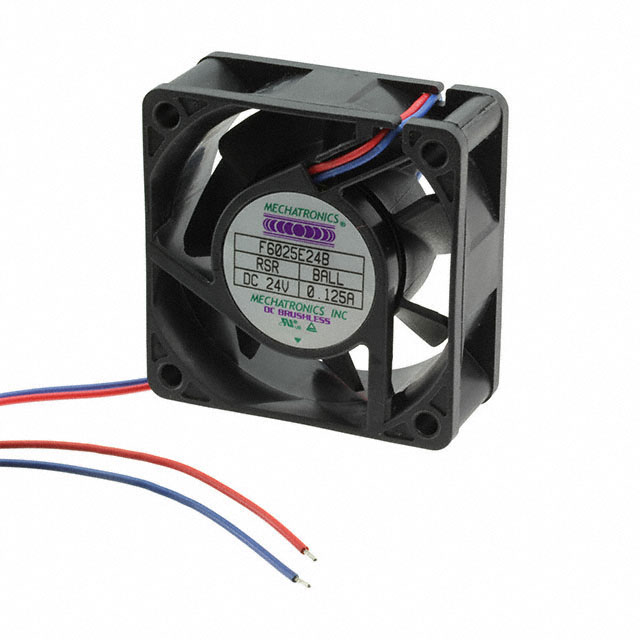

Mechatronics Fan Group F6025E24B2-RSR	Polybutylene Terephthalate (PBT)	0.125 Amps	24 CFM	0.672 mł/min	Auto Restart Locked Rotor Sensor	0.139 lb	63.05 g	3 Wire Leads	25 mm	4600 RPM	0.23 in H2O	57.3 Pa	Tubeaxial	60 mm	60 mm	36 dB	24 VDC	Ball	CE cUL TUV UL
Mechatronics Fan Group F6025H24B1-RSR	Polybutylene Terephthalate (PBT)		20 CFM	0.56 m³/min	Auto Restart Locked Rotor Protection Speed Sensor (Tach)	0.139 lb	63.05 g	3 Wire Leads	25 mm	3800 RPM	0.16 in H2O	39.8 Pa	Tubeaxial	60 mm	60 mm	31 dB(A)	24 VDC	Ball	CE cUL TUV UL	20 CFM
Mechatronics Fan Group F6025M24B-RHR	Polybutylene Terephthalate (PBT)	0.055 A	17 CFM	0.476 m³/min	Thermal Overload Protector (TOP)	0.139 lb	63.05 g	2 Wire Leads	25 mm	3600 RPM	0.2 in H2O	49.8 Pa	Tubeaxial	60 mm	60 mm	28 dB	24 VDC	Ball	CE cUL TUV UL
Mechatronics Fan Group F6025H05B2-FSR	Polybutylene Terephthalate (PBT)	0.41 A	20 CFM	0.56 m³/min	Auto Restart Locked Rotor Sensor	0.139 lb	63.05 g	3 Wire Leads	25 mm	3800 RPM	0.16 in H2O	39.8 Pa	Tubeaxial	60 mm	60 mm	31 dB(A)	5 V	Ball	CE cUL TUV UL

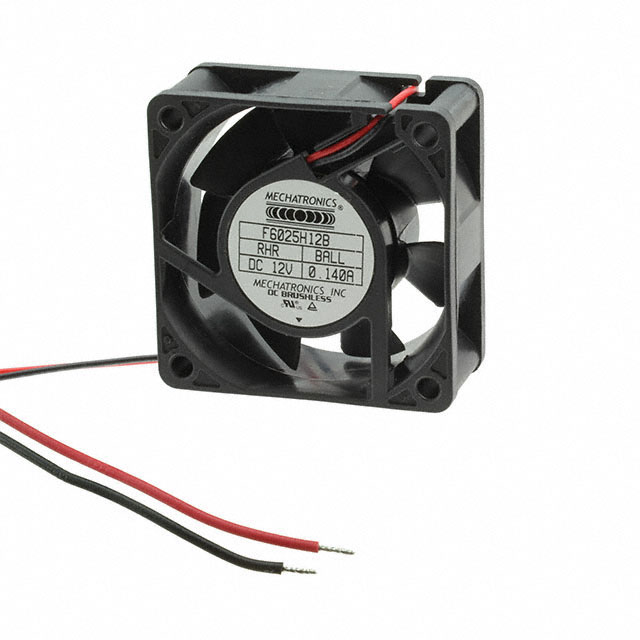

Mechatronics Fan Group F6025H12B-FHR	Polybutylene Terephthalate (PBT)	140 mA	20 CFM	0.56 m³/min	Thermal Overload Protector (TOP)	0.139 lb	63.05 g	2 Wire Leads	25 mm	4200 RPM	0.26 in H2O	64.8 Pa	Tubeaxial	60 mm	60 mm	32 dB	12 VDC	Ball	CE cUL TUV UL
Mechatronics Fan Group F6025M24B-FHR-CC	Polybutylene Terephthalate (PBT)	0.055 A	17 CFM	0.476 m³/min	Conformal Coating Thermal Overload Protector (TOP)	0.139 lb	63.05 g	2 Wire Leads	25 mm	3600 RPM	0.2 in H2O	49.8 Pa	Tubeaxial	60 mm	60 mm	28 dB	24 VDC	Ball	CE cUL TUV UL
Mechatronics Fan Group F6025H24B-RSR-L19	Polybutylene Terephthalate (PBT)		20 CFM	0.56 m³/min	Thermal Overload Protector (TOP)	0.156 lb	70.76 g	2 Wire Leads	25 mm	3800 RPM	0.16 in H2O	39.8 Pa	Tubeaxial	60 mm	60 mm	32 dB	24 VDC	Ball	CE cUL TUV UL	20 CFM
