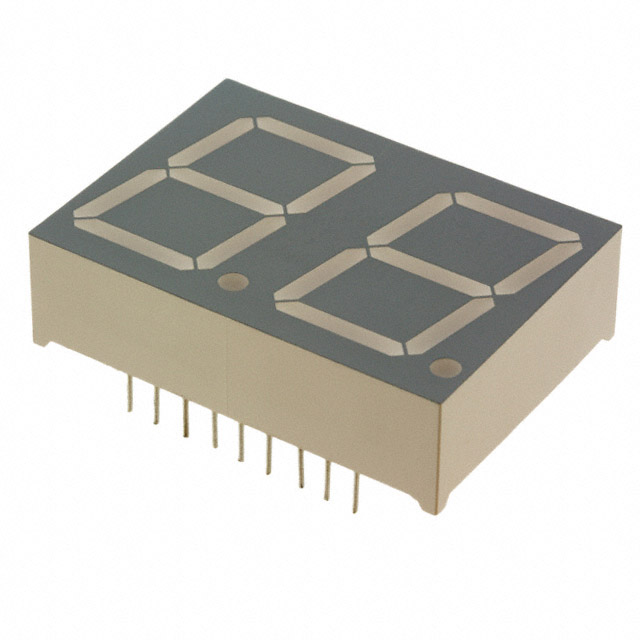

LDD-C812 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K
DISPLAY 7SEG 0.8" DBL GRN 18DIP
| Part | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Power Dissipation (Max) [Max] | Common Pin | Digit/Alpha Size | Digit/Alpha Size | Color | Number of Characters | Millicandela Rating | Display Type | Wavelength - Peak | Current - Test | Voltage - Forward (Vf) (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | 10 mm | 25.8 mm | 1.409 in | 1.016 " | 35.8 mm | 0.394 in | 18-DIP (0.866" 22.00mm) | 105 mW | Common Cathode | 0.8 in | 20.32 mm | Green | 2 | 3.9 mcd | 7-Segment | 565 nm | 10 mA | 2.2 V |
