16280-2S Series
Manufacturer: Conxall/Switchcraft
Beta
⌘K

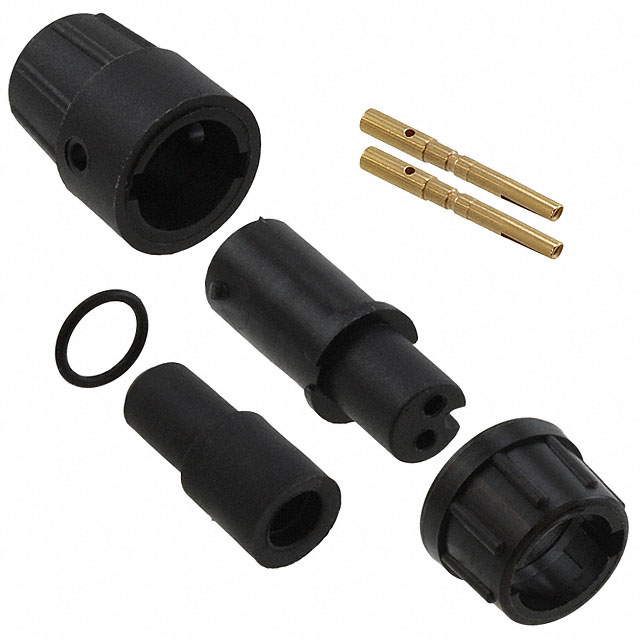

CONN PLUG FMALE 2POS GOLD CRIMP
| Part | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Features | Contact Material | Termination | Connector Type | Orientation | Mounting Type | Color | Contact Finish - Mating | Current Rating (Amps) | Number of Positions | Voltage Rating | Applications | Ingress Protection | Shielding | Material Flammability Rating | Fastening Type | Primary Material | Operating Temperature [Max] | Operating Temperature [Min] | Backshell Material, Plating | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Conxall/Switchcraft | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm | Backshell | Copper Alloy | Crimp | Female Sockets Plug | Keyed | Free Hanging (In-Line) | Black | Gold | 7.5 A | 2 | 600 VAC | Data Industrial Instrumentation Medical | IP67 - Dust Tight Waterproof | Unshielded | UL94 HB | Bayonet Lock | Plastic | 85 °C | -40 °C | Thermoplastic | ||
Conxall/Switchcraft | Backshell | Copper Alloy | Crimp | Female Sockets Plug | Keyed | Free Hanging (In-Line) | Black | Gold | 7.5 A | 2 | 600 VAC | Data Industrial Instrumentation Medical | IP67 - Dust Tight Waterproof | Unshielded | UL94 HB | Bayonet Lock | Plastic | 85 °C | -40 °C | Thermoplastic | 0.15 in 0.17 in | 3.81 mm 4.32 mm |
