9HV3612 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K

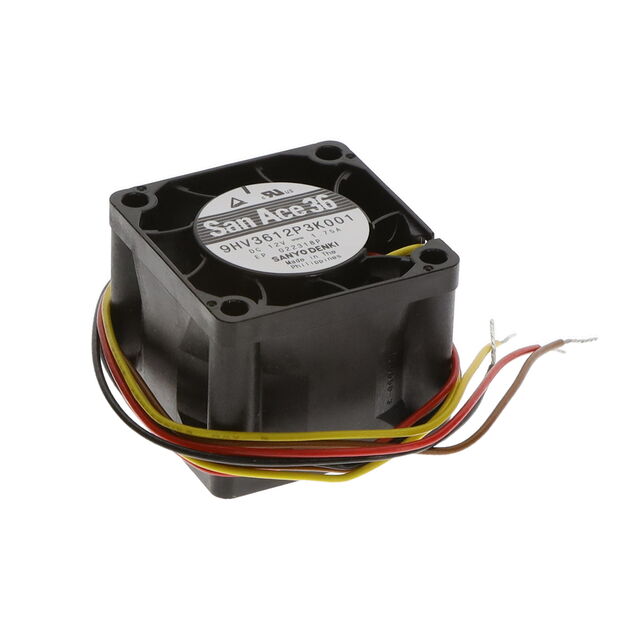

FAN AXL 36X28MM 12VDC RECT CONN
| Part | Current Rating (Amps) | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Fan Type | Bearing Type | Features | Width [x] | Noise | Voltage - Rated | Weight | Weight | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Termination | RPM | Air Flow | Air Flow | Static Pressure | Static Pressure | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | 1.75 A | Plastic | 10.8 VDC | 13.2 VDC | Plastic | Tubeaxial | Ball | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 28 mm | 67 dB | 12 VDC | 0.117 lb | 53.07 g | 36 mm | 36 mm | 60 °C | 60 °C | -4 °F | -20 ░C | 4 Position Rectangular Connector | 32500 RPM | |||||
 Sanyo Denki America Inc. | 1.75 A | Plastic | 10.8 VDC | 13.2 VDC | Plastic | Tubeaxial | Ball | PWM Control Speed Sensor (Tach) | 28 mm | 67 dB | 12 VDC | 0.117 lb | 53.07 g | 36 mm | 36 mm | 60 °C | 60 °C | -4 °F | -20 ░C | 4 Wire Leads | 32500 RPM | 25.4 CFM | 0.711 m³/min | 5.62 in H2O | 1400 Pa | 21 W |
