227716 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

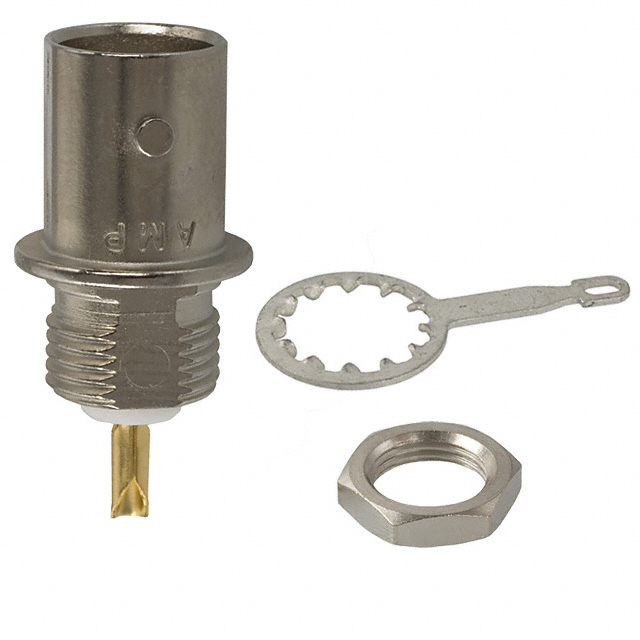

CONN BNC RCPT STR 50 OHM SOLDER
| Part | Impedance | Number of Ports | Contact Termination | Center Contact Material | Voltage Rating | Center Contact Plating | Includes | Shield Termination | Features | Connector Style | Mating Cycles | Mounting Feature | Housing Color | Frequency - Max [Max] | Connector Type | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 50 Ohms | 1 | Solder Cup | Phosphor Bronze | 500 V | Gold | 1 Connector 1 Lockwasher 1 Nut | Solder | Extended Insulation | BNC | 500 | Bulkhead - Rear Side Nut | Silver | 4 GHz | Female Socket Jack | Nickel | -65 ░C | 165 °C | Bayonet Lock |
