3RT2016 Series

Manufacturer: Siemens

Catalog

Catalog

CONTACTORS - ELECTROMECHANICAL CONTACTOR S00 9A 230VAC 2NO/2NC SPRG

...

Part	Release Time	Operate Time	Coil Power	Termination Style	Switching Voltage [Max]	Must Operate Voltage	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Features	Contact Form	Contact Rating (Current)
Siemens 3RT20162AP043MA0	13 ms	35 ms	24.3 VA	Spring Terminal	690 VAC	195.5 VAC	230 VAC	-25 °C	60 °C	Chassis Mount DIN Rail	Auxiliary Contacts	3PST-NO (3 Form A)	9 A
Siemens 3RT20164AN61	13 ms	35 ms	31.7 VA	Screw Terminal	690 VAC	187 VAC	220 VAC/DC	-25 °C	60 °C	Chassis Mount DIN Rail	Auxiliary Contacts	3PST-NO (3 Form A)	9 A
Siemens 3RT20164AR61	13 ms	35 ms	31.7 VA	Screw Terminal	690 VAC	374 VAC	440 VAC	-25 °C	60 °C	Chassis Mount DIN Rail	Auxiliary Contacts	3PST-NO (3 Form A)	9 A
Siemens 3RT20162AP62	13 ms	35 ms	26.4 VA	Spring Terminal	690 VAC	192 VAC	240 VAC/DC	-25 °C	60 °C	Chassis Mount DIN Rail	Auxiliary Contacts	3PST-NO (3 Form A)	9 A

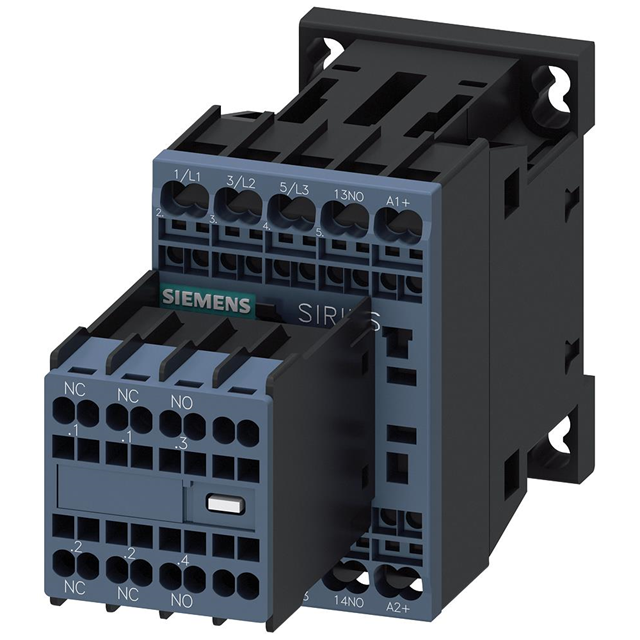

Siemens 3RT20162BB44	13 ms	100 ms	4 W	Screw Terminal	690 VAC	19.2 VDC	24 VDC	-25 °C	60 °C	Chassis Mount DIN Rail	Auxiliary Contacts	3PST-NO (3 Form A)	9 A
Siemens 3RT20161AK61	14 ms	35 ms	26.4 VA	Screw Terminal	690 VAC	96 VAC	120 VAC	-25 °C	60 °C	Chassis Mount DIN Rail	Auxiliary Contacts	3PST-NO (3 Form A)	9 A
Siemens 3RT20162AP02	13 ms	35 ms	24.3 VA	Screw Terminal	690 VAC	195.5 VAC	230 VAC	-25 °C	60 °C	Chassis Mount DIN Rail	Auxiliary Contacts	3PST-NO (3 Form A)	9 A
Siemens 3RT20162BM42	13 ms	100 ms	4 W	Spring Terminal	690 VAC	176 VDC	220 VDC	-25 °C	60 °C	Chassis Mount DIN Rail	Auxiliary Contacts	3PST-NO (3 Form A)	9 A
Siemens 3RT20162AD01	13 ms	35 ms	24.3 VA	Screw Terminal	690 VAC	35.7 VAC	42 VAC/DC	-25 °C	60 °C	Chassis Mount DIN Rail	Auxiliary Contacts	3PST-NO (3 Form A)	9 A
Siemens 3RT20162VB42	80 ms	120 ms	1.6 W	Spring Terminal	690 VAC	20.4 VDC	24 VDC	-25 °C	60 °C	Chassis Mount DIN Rail	Auxiliary Contacts	3PST-NO (3 Form A)	9 A
